Smart Panel - Panel Heater Range

Name: Smart Panel - Panel Heater Range
Brand: Electrorad UK Ltd
SKU: kgJ6oJfPetGMw7tDiNsBeH

Verified by manufacturer 4 months ago

1200 W – 635 mm Heater – PL1200D

Electrorad UK Ltd

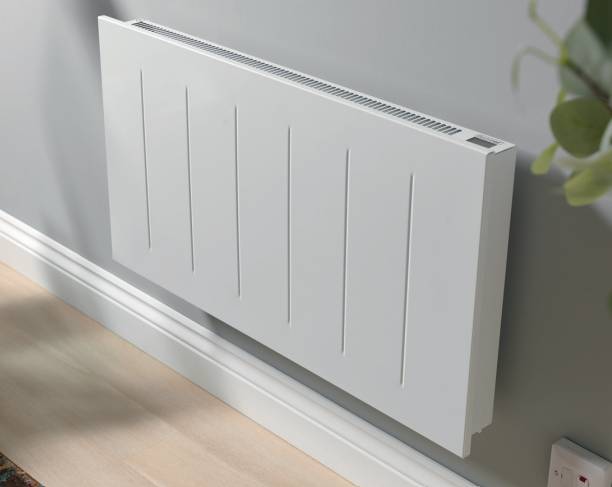

Electric convection panel heater.

Jump to:

0113 2746799 Website

Application

Panel heater suitable for room heating applications.

Description

Smartpanel is a convection panel heater with the design of a traditional radiator. With an extruded aluminium element available in 4 sizes with outputs from 600–2000 W featuring energy saving features.

Features and benefits:

Adaptive start function.
Open window sensing.
Built in energy monitor.
Ecodesign Lot 20 compliant.
Surface temperature control.
Security thermal control.
Fully programmable (weekly and daily).
Comfort, economy and frost.
IP rating: IP21.
CE UKCA.

General information

Color	White
Finish	Powder-coated
Material	Steel
Shape	Rectangle
Length	425 mm 635 mm 745 mm 825 mm
Width	80 mm
Height	450 mm
Warranty description	Two year

Uniclass	Pr_70_60_36_74 Room heatersPrimary Pr_70_60_36_73 Radiators
CAWS	T90/465 Radiators V90/590 Equipment

Specification data - Room heaters

Third party certification	Ecodesign Lot 20 Compliant; CE Marked.
Room heaters type	Panel.
Output	1200 W.
Finish	Painted, RAL 9016.

Length	635 mm.
Height	450 mm.
Width	80 mm.
Weight	8.5 kg.
Core material	Extruded aluminium element.
Safety features	Electromechanical cut-out.
Power supply	Mains: 230–240 V, 50 Hz.
Battery back-up	Battery back-up. Guidance for specification option: Flash memory - saves the settings, not guaranteed to work every time.
Ingress protection (IP) rating	IP21.
