Smoke Lift Glass Skylight FE Smoke Vent - AOV / Smoke vent / SHEV rooflight

Name: Smoke Lift Glass Skylight FE Smoke Vent - AOV / Smoke vent / SHEV rooflight
Brand: Lamilux Rooflights Ltd
SKU: w1FpcA8MpADxtRocNYUrHZ

Verified by manufacturer 23 days ago

FE0G-S14-S

Lamilux Rooflights Ltd

Third party certifications:

TUV - Safety and Quality Report
Certificate type
EPD
Certificate type

Smoke Vent Glass rooflight for SHEV (smoke and heat exhaust ventilation).

Jump to:

01284 749051 Website

Application

Suitable for high-end residential and administration buildings.

Description

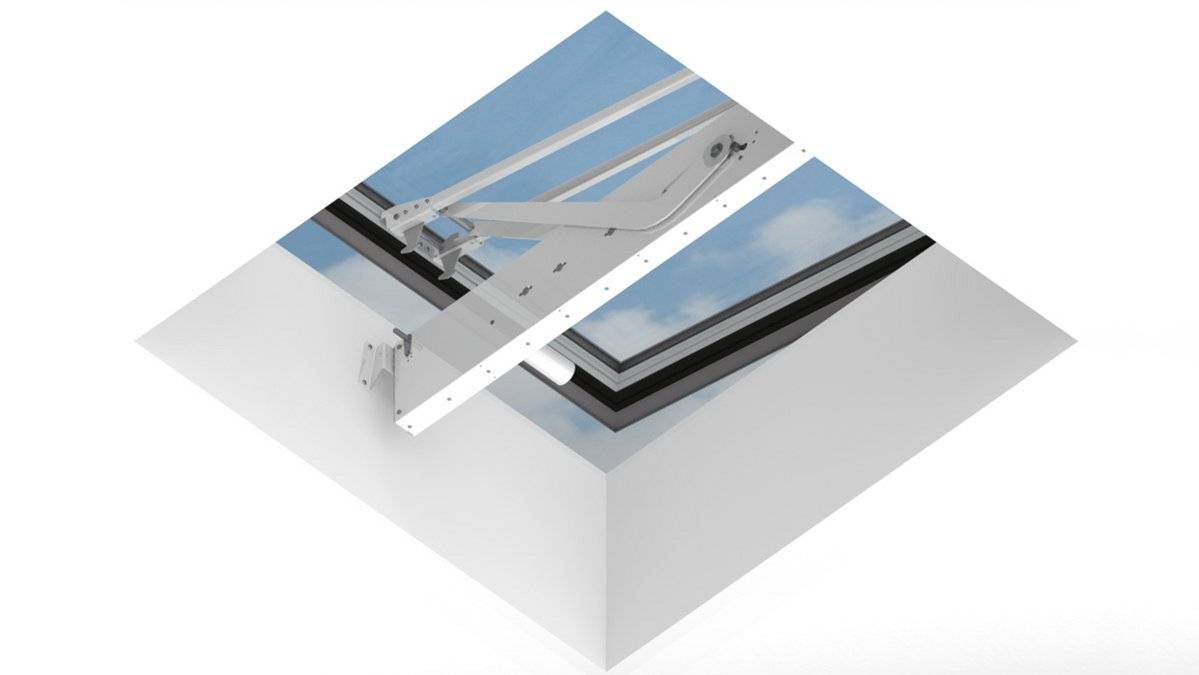

The Smoke Vent Glass Skylight FE combines all the advantages of the Glass Skylight FE with the safety features of an EN 12101-2 certified electrical smoke and heat exhaust ventilator.

This Smoke Vent AOV is suitable for flat roof residential and administrative or school building projects and achieves high levels of wind and rain resistance, excellent air tightness and thermal insulation values and snow loads from SL 1000 to SL 2000. With multi stage ventilation fitted as standard, it provides SHEV safety in the event of a fire, and comfort for everyday use.

Smoke Lift Glass Skylight FE Features and benefits:

Thermally broken “isothermally balanced” aluminium frame free of thermal bridges saving heating costs.
Multi layered double sealing system reduces the risk of condensation, mould growth and air leakage.

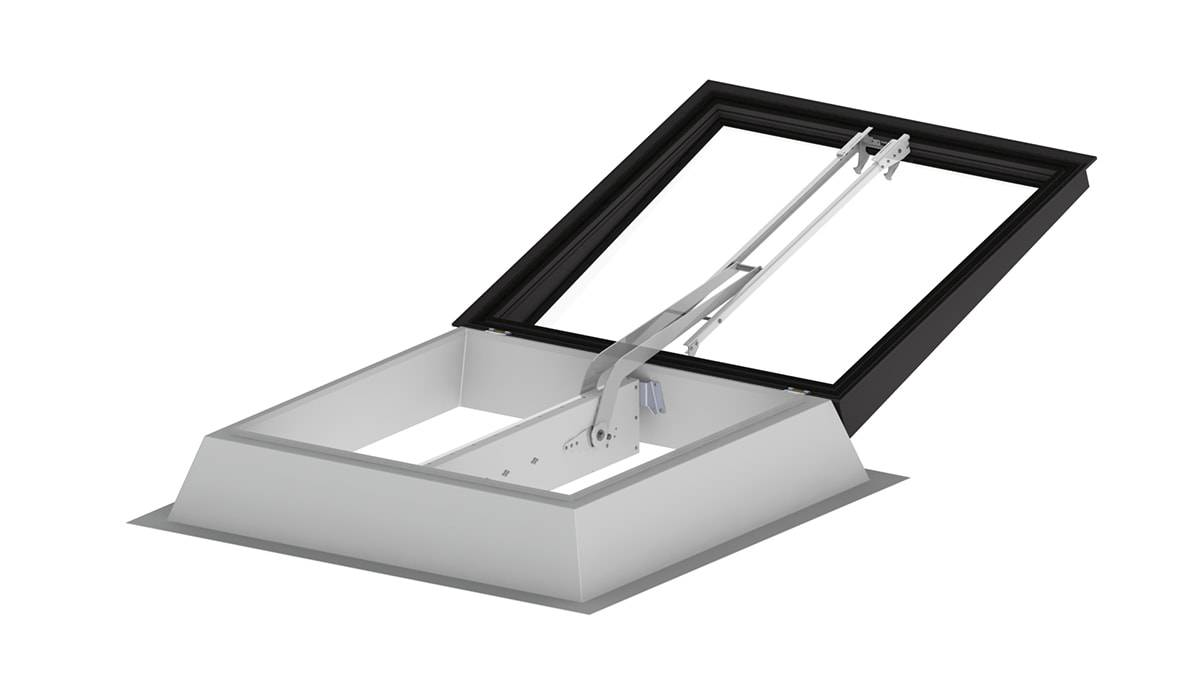

Opens to 165° in under 60 seconds to channel smoke, heat and toxic gases quickly out of the building ensuring safety in the event of a fire.
Fully compliant and certified to EN 12101-2.
GRP heat-insulated upstand with seamless silk-white interior finish removes the need of internal plastering.
Delivered as fully pre-assembled unit with PVC cap flashing included as standard for quick and easy installation on site by others.

General information

Color	Grey Guidance for specification option: As standard. Non-standard framework colours are available on request.
Finish	Galvanized Glazed Powder-coated
Material	Glass Steel Aluminium
Shape	Square Rectangle
Length	1000 mm 1200 mm
Width	1200 mm 2500 mm

Uniclass	Pr_70_65_04_56 Natural smoke and heat exhaust ventilatorsPrimary Pr_30_59_72_31 Framed rooflights
CAWS	L10/45 Rooflights L10/460 Rooflights L10/490 Roof ventilators

Product range	Smoke ventilation

Specification data - Natural smoke and heat exhaust ventilators

Standard	To EN 12101-2.
Opening type	Single flap. Multi-stage ventilation fitted as standard.
Mounting	Roof-mounted.
Aerodynamic free area	1.02 m². Manufacturer guidance Non-standard sizes are available on request.
Reliability classification	Re 1000. Guidance for specification option: Functional reliability tested: Re1000 times in SHEV position and 10 000 times in ventilation position.
Snow load classification	SL 1800 (minimum).
Low ambient temperature classification	T (-15).
Wind load classification	WL 1500.
Resistance to heat classification	B300. Guidance for specification option: Resistance to outside flying sparks B, roof (t1) according to EN 13501-5.
Arrangement	Glazed.
Dimensions	-
Length	1200 mm. Manufacturer guidance Structural roof opening size. Non-standard sizes are available on request.
Width	1200 mm. Manufacturer guidance Structural roof opening size. Non-standard sizes are available on request.
Controls	SHEV Fitting - 24 v solo motor 7.5 A. Manufacturer guidance Opening angle approximately 165°.
Materials	-
Ventilator	-
Frame	Aluminium.
Glazing	Double thermal insulated glazing. Guidance for specification option: Toughened outer, laminated safety glass inner, low emissivity coatings, gas filled cavities and warm edge spacers. Non-standard glazing options are available on request.
Finish	PPC coated.
Colour	Anthracite grey (RAL 7016). Guidance for specification option: Standard. Other. Guidance for specification option: Non-standard framework colours are available on request. Consult manufacturer and insert requirements.
Integral upstands	-
Material	300 mm high fully insulated GRP upstand - factory fitted. Guidance for specification option: Non-standard upstand options are available on request.
Finish	Internal (with no joints), white matt silk finish.
Colour	RAL 9016.

Watertightness	To BS EN 12208, Class 4.
Air permeability	To EN 12207, Class 4.
Ingress protection (IP) rating	IP54.
Operating temperature	-15°C to +75°C.
Sound insulation	Rwp 38 dB.
Light transmission	80%.
Whole window U-value	0.81 W/m²k.
Hinges	On short side. On long side. Manufacturer guidance When installed in a roof pitch over 10° inclination (11–25°) unit must be hinged on the eave side.
