SN293-WL-84 Stair nosing anti-slip - Anti-Slip Stair Nosings
Verified by manufacturer 18 days ago
SN293-WL-84 - Aluminium
SN293-WL-84 - Aluminium
London Underground
Certificate type
Anti-slip stair nosing. Cast metal.
Application
- Rail and light rail.
- Underground rail.
- Network Rail AFA Footbridges
- Transport terminals.
- DDA products.
- Deep tube approved.
- Stair nosing (high or low footfall).
Description

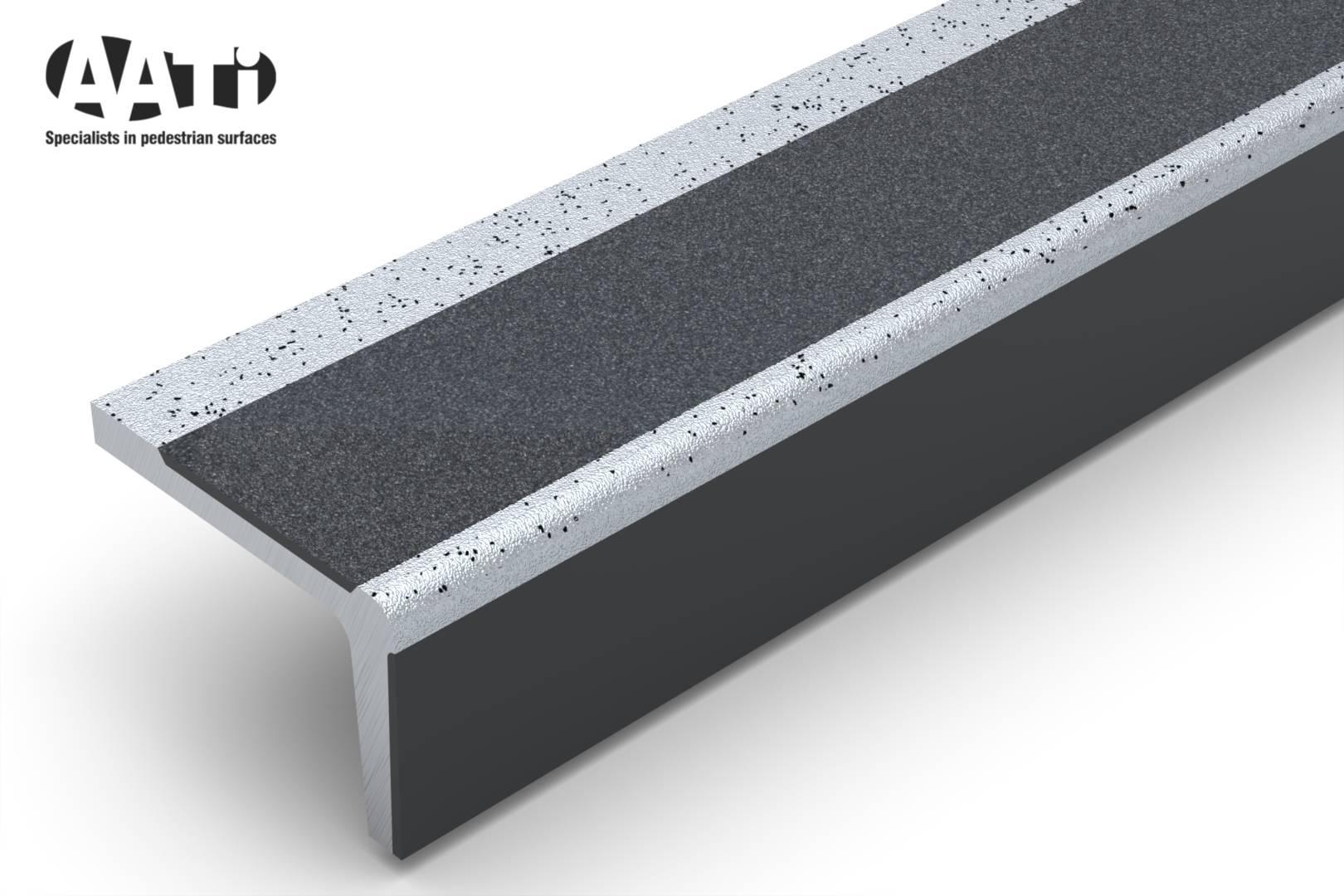

SN293/WL/84® - Wideline™ is a cast metal anti-slip stair nosing with silicon carbide granules cast into the metal matrix of the wearing surface. The front edge is defined by a continuous coloured abrasive insert and a continuous coloured line along the riser face.
Wideline™ is suitable for many different applications and can be fixed to steel, wood or concrete. It is recommended that these nosings are fully recessed into the step surface and both mechanically fixed (i.e. screwed) and bonded into position.
Features and benefits:
- Complies with DFT, BS 8300 and Building Regulations Document M and K.
- Anti-slip inserts available in a wide range of colours.
- Cost effective, long term installation.
- High anti-slip performance.
General information
Color | Beige Guidance for specification option: Nickel Bronze. Copper Guidance for specification option: Gunmetal. Silver Guidance for specification option: Aluminium. |
Finish | Natural |
Material | Aluminium Gunmetal Nickel bronze |
Shape | Rectangle |
Length | Bespoke |
Width | 84 mm |
Height | 55 mm |
Warranty description | 25 year |
Uniclass | |
CAWS | L30/590 Applied stair nosings |
Specification data - Rigid stair nosings
Profile | Square. |
Base section | |
Material | Aluminium. |
Finish | Silver. |
Size | |
Rise x going | 55 x 84 mm. |
Gauge | 9 mm. |
Inserts | |
Material | Cast metal with silicon carbide granules. |
Colour | Manufacturer guidanceInsert requirements. Black as standard, but other colours within the RAL and the NCS ranges are available. |
Length | Guidance for specification option: Insert requirements. Maximum: 1.9 m. Longer lengths will be provided in multiple sections. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 95 % |
Third party certifications

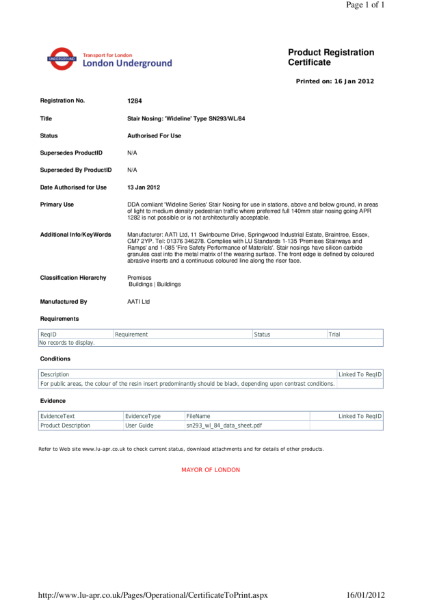

London Underground
AATi certificate for product ref SN293 WL 84
Literature
SN293-WL-84 Data Sheet

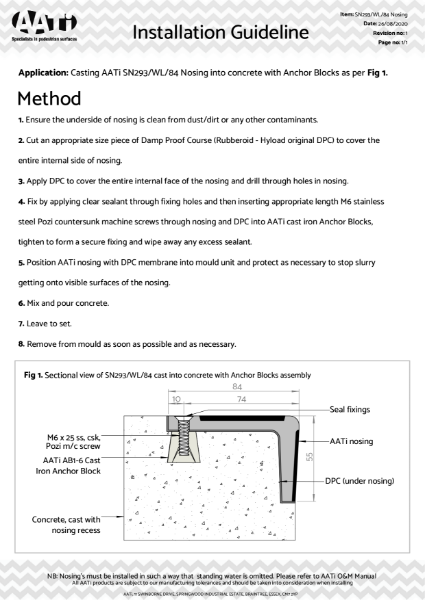

installation_guideline_sn293_wl_84_concrete_castin_anchorblock
installation_guideline_sn293_wl_84_concrete_rawlnut_m6machine Rev.4
installation_guideline_sn293_wl_84_concrete_retro_woodscrew Rev.4
installation_guideline_sn293_wl_84_steel_rawlnut_m6machine
recess_detail_sn293_wl_84_concrete Rev.4
