Application

  • Schools.
  • Universities.
  • Colleges.
  • Offices.
  • Theatres.
  • Commercial spaces.
  • High-quality offices.
  • Leisure centres/ clubs.
  • Hotels.

Description

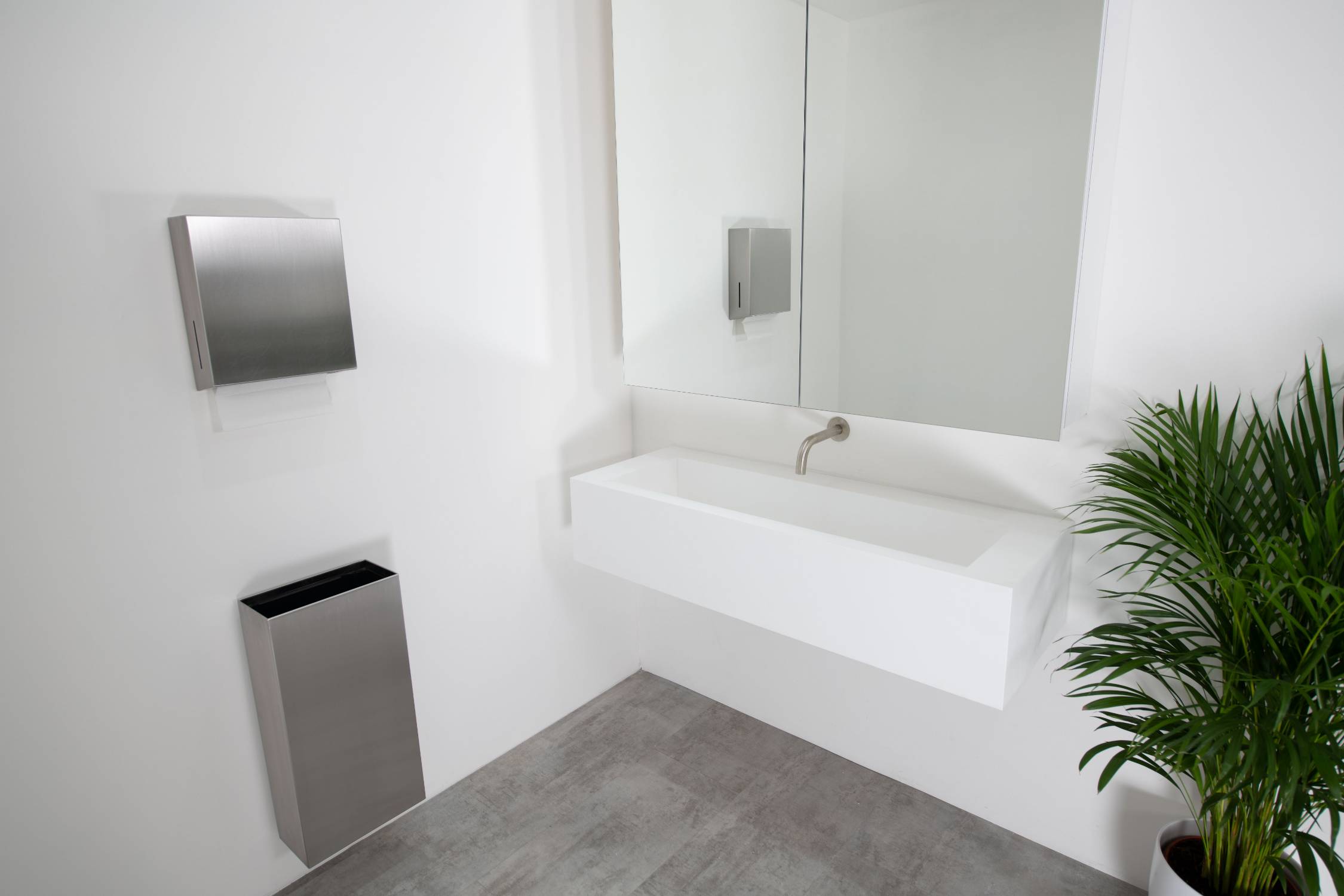

The top is manufactured in a variety of modular sizes and can be seamlessly jointed if required. Extremely durable, easy to clean and maintain, with support provided by the unique cantilevered support system, with optional lift-off panels to conceal pipe work.


Features and benefits:

  • Cantilevered support system.
  • Seamless joints.

General information

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

Ten year

Uniclass

Pr_40_20_96_99 Wash troughsPrimary

CAWS

N13/69 Support rails and grab bars

N13/436 Handrails and grab bars

Specification data - Wash troughs

Materials

-

Body

13 mm Corian solid surface with an 18 mm moisture-resistant MDF substrate.

Finish and colour

-

Manufacturer guidance

Standard range of colours available.

Framework

Cantilevered galvanized steel support arms connected to 2.5 mm-thick full-length channel sub-frame, fixed to existing structure, using appropriate fixings.

Panels

Moisture-resistant chipboard faced with high-pressure laminate

Manufacturer guidance

15 mm moisture-resistant chipboard faced with specified high pressure laminate finish and edged with matching tape/ laminate. Alternatively, vertical edges can be post-formed. All panels are lift-off and fixed with male plastic Keku clips fixed to rear, to interface with matching female Keku clip, fixed to vertical infill.

Infill

Moisture-resistant chipboard faced with high-pressure laminate

Manufacturer guidance

Vertical infills manufactured from 15 mm moisture-resistant chipboard/ MDF core, faced with specified high pressure laminate; grooved to accept a female Keku clip; plywood skirting to accept appropriate floor finish.

Colour:

-

Manufacturer guidance

Insert colour from manufacturer's standard range.

Edges

Matching PVC tape/ laminate.

Post-formed vertical edges.

Product Reference

Corian Wash Trough

Sustainability data

Country of product manufacture

United Kingdom
