Soll PivotLoc Ladder
Verified by manufacturer 3 months ago

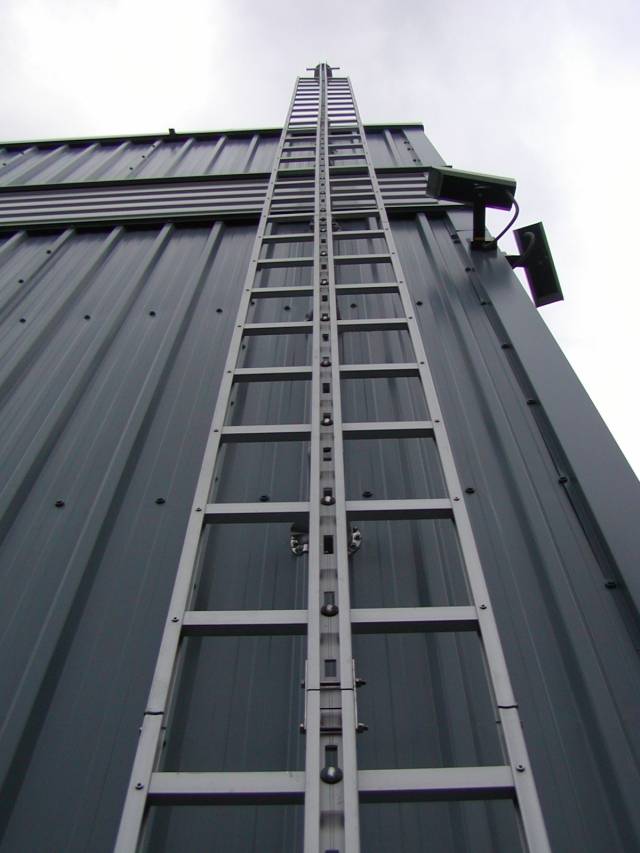

PivotLoc height access system
PivotLoc height access system
Foldable ladder system with built-in Fall Protection.
Application
Foldable ladder incorporating fall arrest system which can be installed in any areas where security or aesthetics are a primary concern.
Description
A foldable ladder system with incorporated GlideLoc fall protection rail. In the closed position, the rungs pivot together behind the central guide rail. There are two options available:
-PivotLoc height access system:
- Constructed from a lockable entry section and further foldable ladder sections up to a total height of 20 m.
- Slim and unobtrusive in the closed position.
-PivotLoc restricted access system:
- Used in conjunction with GuideLoc Y-Spar and twin ladder systems as an alternative to a security cover plate.
- Fixed height: 2.8 m.
Features and benefits:
- Offers a reliable fall protection solution for height access and work positioning.
- When closed, the ladder can be locked shut in order to prevent unauthorized use.
- Can be locked open to prevent accidental closure.
- Sections are lightweight and easy to manoeuvre.
- Systems of up to 20 m high can be opened from ground or safe platform level.
- The side stiles offer additional support to the user when climbing and descending.
- Once the side rails have been folded together, the ladder is very discreet (105 mm in the closed position) thus meeting architectural and planning requirements for an 'invisible' height access system.
- Can be used in conjunction with all GlideLoc ladder systems or on its own.
- Constructed from corrosion resistant anodized aluminium.
- In the closed position, the wind resistance of the system is at a minimum.
General information
Color | Silver Guidance for specification option: Self-colour of the material Other Guidance for specification option: Can be powder coated to any RAL |
Finish | Anodized Guidance for specification option: can be powder coated to any RAL. |
Material | Aluminium Guidance for specification option: Corrosion resistant. |
Shape | Other Guidance for specification option: When folded, the ladder is a discreet, narrow shape. Rectangle Guidance for specification option: Standard ladder shape when opened fully. |
Length | Bespoke Manufacturer guidanceCan be designed to suit any height in maximum foldable sections of 20m. |
Width | 500 mm Guidance for specification option: 500mm when fully opened. |
Height | Bespoke |
Warranty description | Two year Guidance for specification option: Manufacturers defect warranty. Manufacturer guidanceRolling warranty is provided by the inspection company on an annual basis. |
Uniclass | |
CAWS | L30/410 Steel ladders L35/130 Ladder system L35/330 Ladders |
Specification data - Permanently-fixed vertical ladder systems
Stiles | Required. |
Rungs | Required. |
Fixing background | Concrete/ masonry. Steelwork. |
Height | Guidance for specification option: Consult manufacturer and insert requirements. Maximum 20 m. |
Exit | Rigid end stop. Rotating. Guidance for specification option: Consult manufacturer and insert requirements. Standard top end stop. Guidance for specification option: Standard. Twisted changeover. Guidance for specification option: Consult manufacturer and insert requirements. |
Twin rail | Required. Guidance for specification option: Consult manufacturer and insert requirements. Not required. |
Y-spar | Required. Guidance for specification option: Consult manufacturer and insert requirements. Not required. |
Width | 105 mm. Guidance for specification option: In the closed position. |
Type | Height access system. |
Sustainability data
Contains Red List materials | No |
Recyclability | 100 |
