Sonata Aurio - Absorber

Verified by manufacturer 23 days ago

Sound Reduction Systems Ltd Third party certifications:
  • Alcumus SafeContractor

    Alcumus SafeContractor

    Certificate type

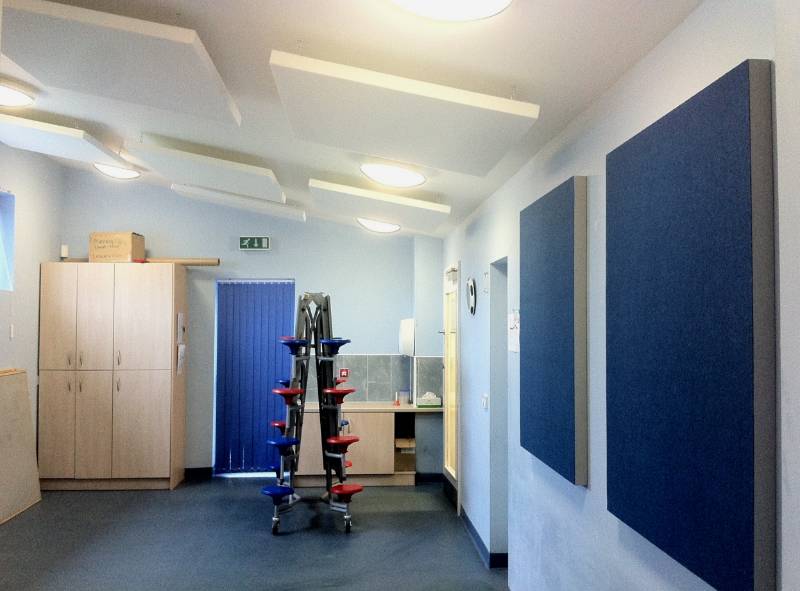

Class A, decorative sound absorption panels for reducing excessive reverberation within all rooms. Sonata Aurio panels are easily and quickly installed to walls and ceilings with Sonatac adhesive

Jump to:
+44 (0)1204 380074 Website

Application

  • School halls.
  • Classrooms.
  • Canteen/ dining rooms.

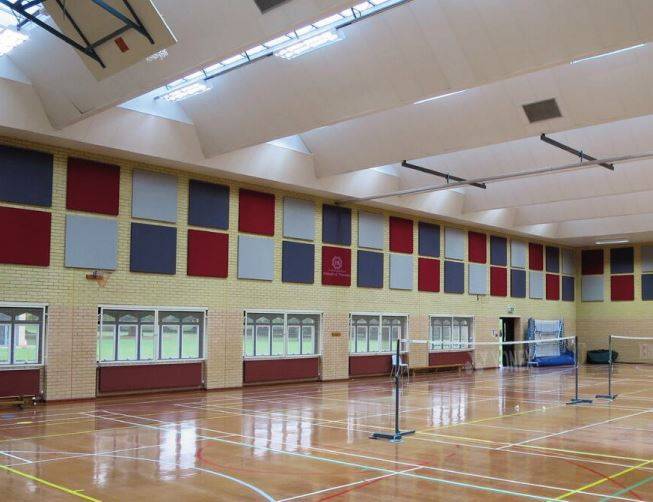

  • Sports halls/ gyms.
  • Village/ community halls.
  • Church halls.

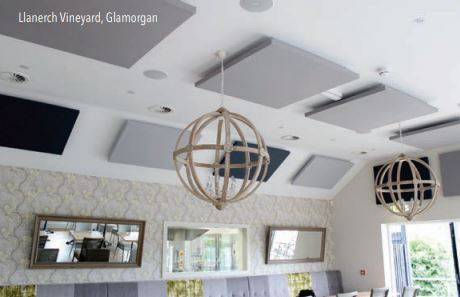

  • Restaurants/ bars.
  • Scout/ guide huts.
  • Video/ audio conferencing rooms.
  • Open plan offices.

Description

SRS Sonata Aurio absorbers are a practical and cost effective way of controlling reverberation.


The panels are an incredibly efficient way to introduce a high performance, absorptive material to any space. The panels comprise a technical, non-shedding, acoustic foam with an acoustically transparent fabric finish to the face and sides. Easily and quickly installed, the panels can be directly bonded to walls and ceilings and are so robust that they are perfect for gyms, sports halls or anywhere where ball strikes may occur.


Available in a wide range of colours and sizes to accommodate any existing wall or ceiling and can also be printed with photographs or images to create a striking ‘canvas’ effect.


Features and benefits:

  • Building Regulations compliant solution.
  • Class A rated absorber.
  • Wide range of colours / sizes.
  • Bespoke printed panels available.
  • Extremely robust and durable.
  • Quick, easy and clean to install.
  • Bonded solution – no drilling required.
  • Non-shedding foam panels – no mineral fibre.

General information

Color

Other

Guidance for specification option:

Multiple options are available, consult manufacturer for details.

Finish

Other

Guidance for specification option:

Fabric.

Material

Foam

Fabric

Shape

Square

Rectangle

Length

600 mm

1200 mm

Width

500 mm

600 mm

800 mm

1000 mm

1200 mm

Height

50 mm

Uniclass

Pr_35_93_13_80 Sound attenuator infill unitsPrimary

CAWS

K40/265 Infill units

K40/115 Unit/ modular suspended ceiling system

Specification data - Sound attenuator infill units

Form

Absorber.

Application

Ceiling mounting.

Wall mounting.

Material

Foam.

Acoustic performance

-

Purpose

Absorber.

Sound absorption

Class A to BS EN ISO 11654.

Guidance for specification option:

Absorber thickness: 50 mm. Acoustic performance: 0.95 αw.

Fire performance

-

Fire resistance

Foam core panel meets the requirements of Class 0.
Fabric panel wrap meets the requirements of Class 1 (surface spread of flame).

Guidance for specification option:

Class 0 rated fabric available on request.

Manufacturer guidance

To BS 476-6 and -7.

Reaction to fire

Foam core panel meets the requirements of Class C,s2,d0.
Fabric panel wrap meets the requirements of Class B, s1, d0.

Manufacturer guidance

To BS EN 13501-1.

Dimensions

-

Size (length x width)

1200 x 1200 mm.

1200 x 1000 mm.

1200 x 800 mm.

1200 x 600 mm.

1200 x 500 mm.

600 x 600 mm.

600 x 500 mm.

Thickness (overall)

50 mm.

Profile

Linear.

Edges

Square.

Finish

Factory-applied fabric (open-weave, acoustically transparent) to face, edges and back returns.

Colour

-

Manufacturer guidance

A wide range of colours are available, and can also be printed with photographs or images to create a striking ‘canvas’ effect. Consult manufacturer for details and insert requirements.

Accessories

310 ml Sonatac Adhesive.

Sustainability data

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Foam

Fabric

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

0 %

Third party certifications

Alcumus SafeContractor

Alcumus SafeContractor

SafeContractor Certificate

Alcumus SafeContractor

Alcumus SafeContractor

SafeContractor PQQ Certificate

Literature

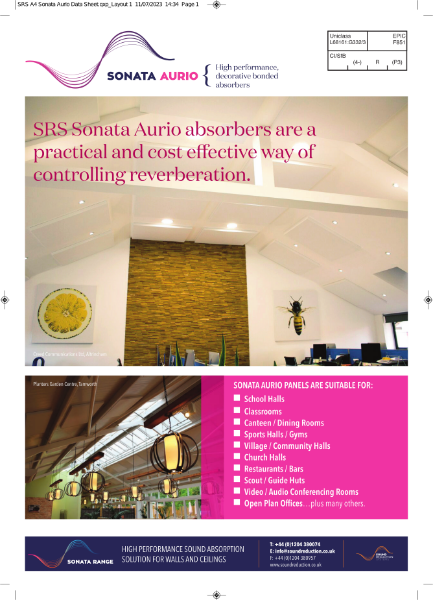

SRS Sonata Aurio Datasheet

SRS Sonata Aurio Datasheet

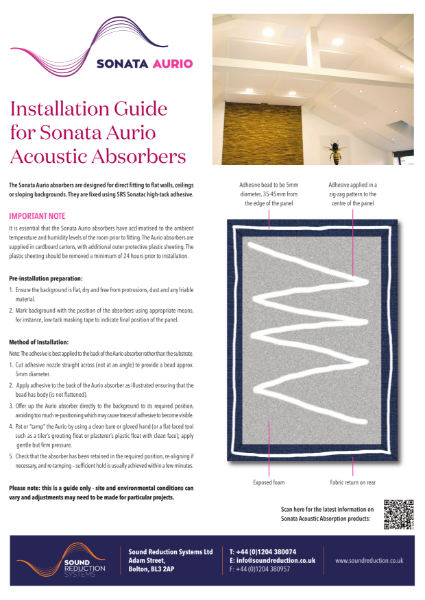

Sonata Aurio Installation Datasheet

Sonata Aurio Installation Datasheet

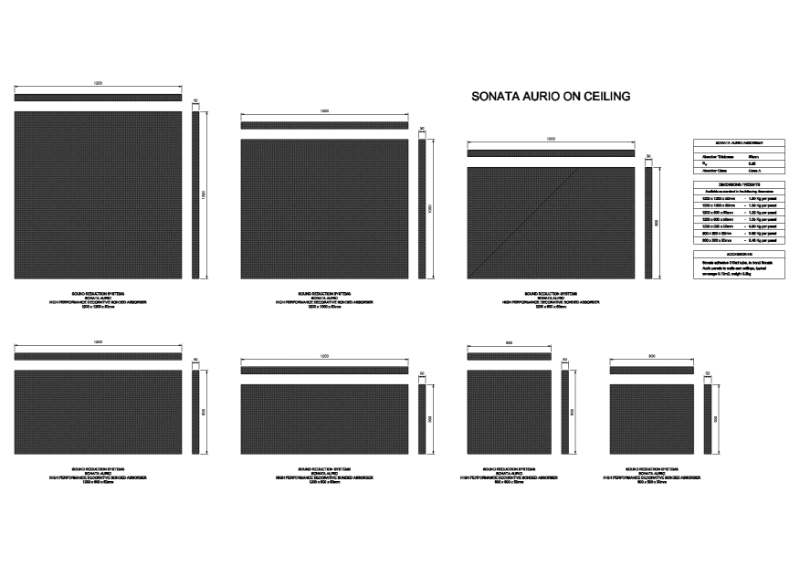

Sonata Aurio Ceiling Installation CAD Drawing
