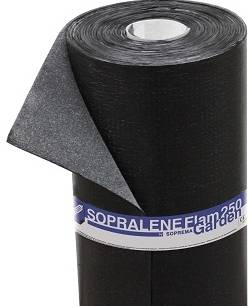

Sopralene Flam Garden 250 AF

Verified by manufacturer 5 months ago

Soprema UK Third party certifications:
  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

Styrene-butadiene-styrene (SBS) modified bitumen capsheet membrane with 250 g/m² polyester reinforcement for green roof applications.

Jump to:
+44 (0)330 058 0668 Website

Application

Used as a capsheet for a multi-layer, elastomeric bitumen waterproofing systems beneath green roof applications.

Description

Membrane composed of styrene-butadiene-styrene (SBS) modified bitumen with polyester reinforcement. The upper surface is finished with slates, with the selvedge protected by a polypropylene film. The lower surface has thermally activated SBS stripes alternated with non-stick stripes, protected by a thermofusible film. The membrane is root resistant; the coating mass contains a root-repellent substance to prevent roots from perforating the waterproofing system.


Features and benefits:

  • Root-resistant.
  • Torch-on or hot-air method including the overlaps.
  • CE marked to BS EN 13707.

General information

Color

Black

Finish

Slate

Guidance for specification option:

Upper side, with thermofusible film overlap protection.

Thermofusible film

Guidance for specification option:

Lower side.

Material

Styrene-butadiene-styrene (SBS) modified bitumen

Polyester

Length

8000 mm

Width

1000 mm

Uniclass

Pr_25_57_08_75 Reinforced bitumen roofing sheetsPrimary

CAWS

J41/120 Built-up reinforced bitumen membrane inverted roof covering

J41/400 Built-up reinforced bitumen waterproof covering

Q37/110 Intensive green roof

Q37/130 Extensive green roof

Product range

Reinforced bitumen membranes

Specification data - Reinforced bitumen roofing sheets

Standard

To BS EN 13707.

Material

-

Carrier material

Polyester.

Bitumen modification

Elastomeric.

Thickness (minimum)

4.5 mm.

Surface finish

-

Top

Slates with thermofusible film overlap protection.

Underside

Thermofusible film.

Colour

Black.

Tensile strength (minimum)

Longitudinal, 1200 N/ 50 mm / Transverse, 950 N/ 50 mm.

Elongation at break (to BS EN 12311-1)

45%.

Dimensional stability

0.5%.

Tear resistance (to BS EN 12310-1)

225 N.

Flexibility at low temperature

-20°C.

Third party certifications

BBA Agrément Certificate

BBA Agrément Certificate

SOPRALENE FLAM GARDEN 250 AF - Sopralene Flam Garden 250 AF, a polyester-reinforced SBS modified bitumen waterproofing membrane, for use on flat and zero fall roofs in green roofs, and in flat, zero falls, and pitched green roof specifications

Literature

Sopralene Bituminous Waterproofing systems

Sopralene Bituminous Waterproofing systems

Sopralene Flam Bituminous Waterproofing Systems

Sopralene Flam Bituminous Waterproofing Systems
