Southdown Multi - Clay Facing Brick

Verified by manufacturer 5 months ago

Forterra Building Products Third party certifications:
  • UK Conformity Assessed (UKCA)

    UK Conformity Assessed (UKCA)

    Certificate type

  • DoP

    DoP

    Certificate type

  • Made in Britain

    Made in Britain

    Certificate type

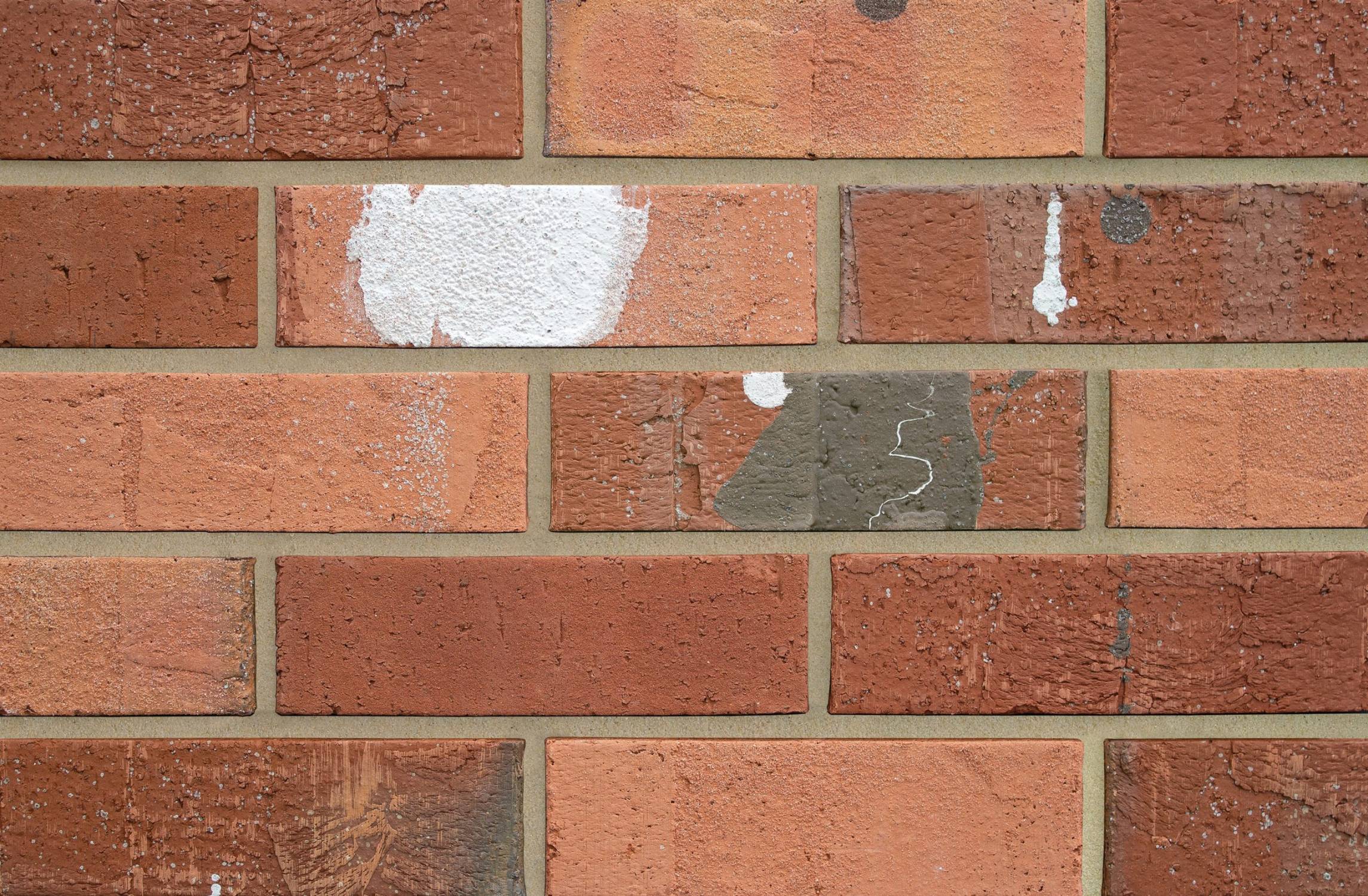

A tumbled red clay brick for residential applications.

Jump to:
+44 (0)1604 707600 Website

Application

For more product information please follow the link https://www.forterra.co.uk/product/southdown-multi-brick/

Description

With a history dating back over 150 years, Butterley bricks can be found in buildings as diverse St Pancras station and modern housing developments. Forterra manufacture it in a wealth of red, buff, yellow, brown, blue and grey colours, and in several textures: smooth, with a consistent, uniform character; light textured, which is modern and uniform, with an indented or printed finish; heavy textured, with a harder and rougher texture for a more rustic brick with a consistent finish; and tumbled, a distressed and irregular shape associated with reclaimed bricks.

General information

Color

Red

Finish

Rolled

Material

Clay

Shape

Rectangle

Length

215 mm

Width

102.5 mm

Height

65 mm

Uniclass

Pr_20_93_52_15 Clay bricksPrimary
Pr_25_71_14_29 Faced insulating wall panels
Pr_20_93_52_16 Clay brick slips

CAWS

M21/20 External wall insulation system . . . . . .

F10/5 Facing brickwork

F10/110 Clay facing brickwork

Specification data - Clay bricks

Standard

To BS EN 771-1.

Brick description

Facing brick.

Work size (length x width x height)

215 x 102.5 x 65 mm.

Tolerances

-

Mean value

T2.

Range

R1.

Compressive strength

-

Mean compressive strength (minimum)

75 N/mm².

Guidance for specification option:

Equal to or more than 75 N/mm².

Category

II.

Durability designation

F2.

Water absorption

Equal to or less than 7%.

Configuration

Vertically perforated, 24–29% voids.

Thermal conductivity

0.69 W/m.K [λ10,dry].

Water vapour permeability

50/100 µ.

Bond strength

Fixed 0.15 N/mm².

Reaction to fire

Class A1 to BS EN 13501-1.

Active soluble salts

S2.

Sustainability data

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

0 %

Third party certifications

UK Conformity Assessed (UKCA)

UK Conformity Assessed (UKCA)

Southdown Multi UKCA Certificate

DoP

DoP

Southdown Multi DoP Certificate

Made in Britain

Made in Britain

Forterra - Made in Britain

Literature

Forterra Brick Guide

Forterra Brick Guide

Southdown Multi Brick Datasheet

Southdown Multi Brick Datasheet
