Spectator Rail MUGA Sports Fencing

Verified by manufacturer 3 months ago

Zaun Limited

Spectator rail.

Jump to:
+44 (0)1902 796699 Website

Application

  • Civic and public sector.
  • Schools and education.
  • Sport and leisure.

Description

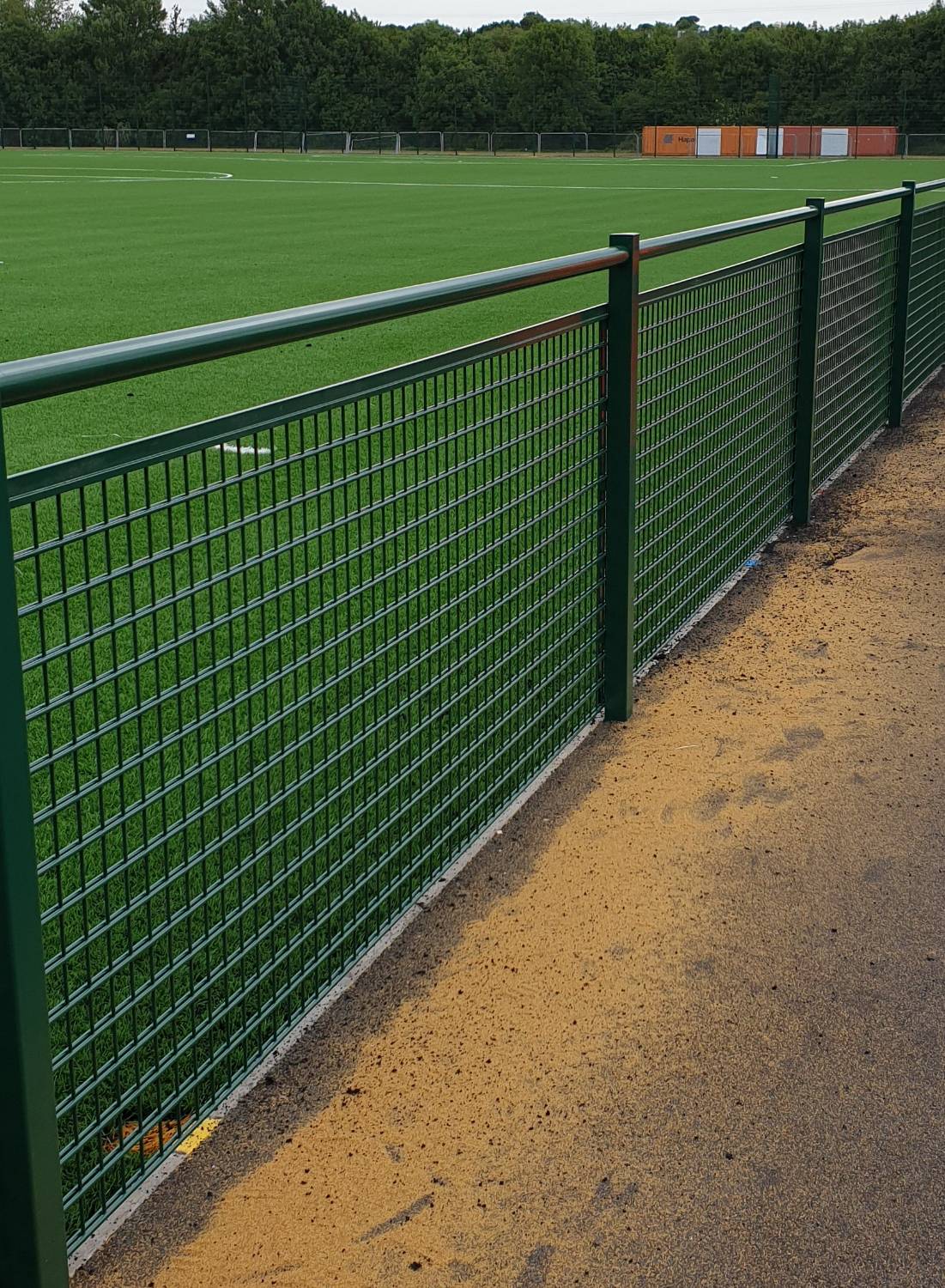

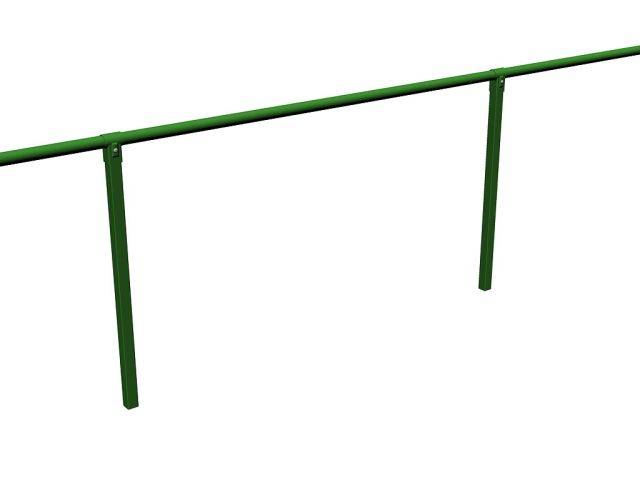

Zaun Spectator Rails improve safety for both players and spectators. The players feel that the game is played at a higher level and that there is less likely to be any incursion on the pitch by eager fans. Manufactured from tubular sections with fixings to hold the horizontal rails.


Can be infilled with Zaun Fencing Panels including Duo Sport and Duo Super Rebound. A safety capping strip helps to prevent any risk to fingers from the mesh panel.


Any number of gates of any size can be incorporated into the pitch perimeter to allow maintenance equipment unfettered access to the pitch. The Football Association has made spectator rails a requirement for many Non-League clubs, but Zaun’s Spectator Railings are also suitable for areas such as skate parks, where spectators on the playing surface would pose a safety hazard.


Features and benefits:

  • Specifically designed to provide a demarcation area around sports pitches.
  • Provides protection for players and supporters during game play.
  • Designed to provide spectators better viewing.
  • Manufactured from strong tubular section.
  • Available with gates to suit.
  • Available either bolt down, in-ground or on wall.
  • Adheres to FA guidelines.

General information

Finish

Galvanized

Powder-coated

Material

Steel

Width

2510 mm

Height

1200 mm

Uniclass

Ss_25_14_63_51 Metal post and rail fencing systemsPrimary

CAWS

Q40/30 Proprietary fencing

Q40/430 Proprietary fencing

Specification data - Metal post and rail fencing systems

Posts

60 x 60 mm rectangular hollow section (RHS) posts.

Guidance for specification option:

Spaced at 2525 mm centres.

80 x 40 mm rectangular hollow section (RHS) posts.

Guidance for specification option:

Spaced at 2525 mm centres.

100 x 50 mm rectangular hollow section (RHS) posts.

Guidance for specification option:

Spaced at 2525 mm centres.

120 x 60 mm rectangular hollow section (RHS) posts.

Guidance for specification option:

Spaced at 2525 mm centres.

Manufacturer guidance

Dependent on height.

System accessories

Not required.

Pedestrian gate.

Guidance for specification option:

Single leaf, 1.2 m wide, or width to suit, consult manufacturer and insert requirements.

Vehicular gate.

Guidance for specification option:

Double leaf, 3.0 m wide, or width to suit, consult manufacturer and insert requirements.

Height

1008 mm.

2030 mm.

2430 mm.

3030 mm.

4070 mm.

Show more

Manufacturer guidance

Fence heights above 3m are made using 2 or more panels.

Applied finish

Galvanized and polyester powder coated.

Gates

50 x 50 mm RHS, with Zaun Duo8 mesh welded inside the frame, slide latch, rubber bump stop, two gate posts.

Guidance for specification option:

Vehicular access also supplied with drop bolts.

Standards

To BS1722, ISO 12944.

Width

2510 mm.

Mesh size

66.6 x 50 mm.

Guidance for specification option:

Lower.

200 x 50 mm.

Guidance for specification option:

Above.

Manufacturer guidance

Full height rebound also available on request.

WireDiameter

5 mm / 2 x 6 mm.

Guidance for specification option:

Super rebound 6 - Vertical x Horizontal.

6 mm / 2 x 8 mm.

Guidance for specification option:

Super rebound 8 - Vertical x Horizontal.

Fixings

Anti tamper security fixings.

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom
