SPG Patent Glazing System

Verified by manufacturer 2 months ago

Senior Architectural Systems Ltd Third party certifications:
  • UKAS

    UKAS

    Certificate type

A patent glazing system with the glazing bar structural stalk to the exterior.

Jump to:
+44 (0)1709 772600 Website

Application

Vertical or sloping applications,

Description

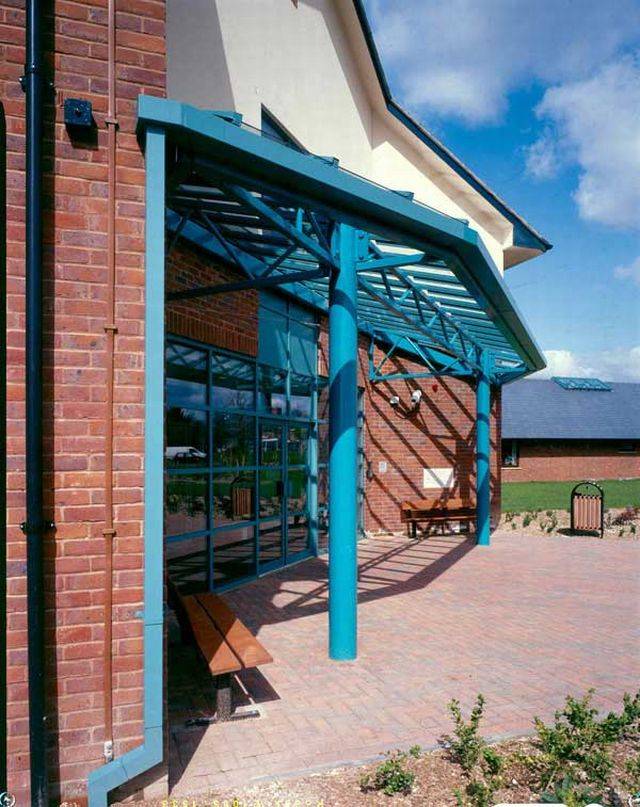

The SPG System single or double glazed patent glazing is suitable for vertical or sloping applications, including extended rooflights and canopies. It is a traditional patent glazing system with a two edge supported bar and the structural stalk on the outside of the building. Extruded saddle brackets and snap-on beads have no external fixings.

The system provides a weathertight roof down to a pitch of 15°. It is compatible with SAS windows, SAS shopfronts/ entrances and SAS curtain wall for a total facade service.

Design, installation and glazing service is available through a nationwide network of installers.


Composition and manufacture:

  • Aluminium alloy: 6063, T6 to BS 1474: 1987.
  • Insulation materials: Rigid PVC.
  • Gasketry: PVC Nytrile to BS 3734 and BS 7412 Cat A.


Dimensions:

  • Maximum bar spacing: 1200 mm.
  • Maximum height: To suit conditions.
  • Designed to accommodate various glazing options from 6 mm to 34 mm overall thickness.

General information

Finish

Anodized

Powder-coated

Material

Aluminium

Length

Bespoke

Width

Bespoke

Height

Bespoke

Uniclass

Pr_20_76_51_05 Aluminium patent glazing barsPrimary

CAWS

H10/10 Patent glazing

H10/115 Patent glazing

Product range

Patent Glazing Systems

Specification data - Aluminium patent glazing bars

Standard

To BS 1474:1987, BS 3734, BS 7412.

Finish

-

Coating

Anodized.

Guidance for specification option:

Insert colour requirements, 25 µm (minimum), satin or polished finish available.

Polyester powder coated.

Guidance for specification option:

Insert colour requirements, 40 µm standard and 60 µm available for marine environments.

Colour

-

Manufacturer guidance

Insert requirement.

Film thickness (minimum)

-

Manufacturer guidance

In micrometres (μm). Consult with manufacturer following choice of finish.

Infill

Insulating glass units.

Single glazed panes.

Spacing

-

Manufacturer guidance

Insert requirement, or 'As drawing'.

Sustainability data

Country of product manufacture

United Kingdom

Recyclability

100

Third party certifications

UKAS

UKAS

ISO 14001

UKAS

UKAS

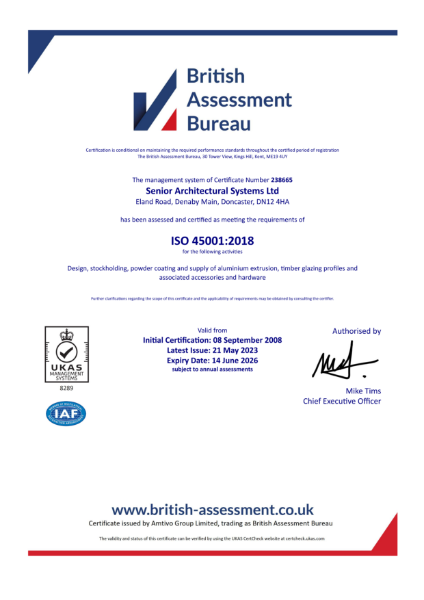

ISO 45001

UKAS

UKAS

ISO 9001
