SPW500 Commercial Door - Thermally Broken Screening Door System

Verified by manufacturer 2 months ago

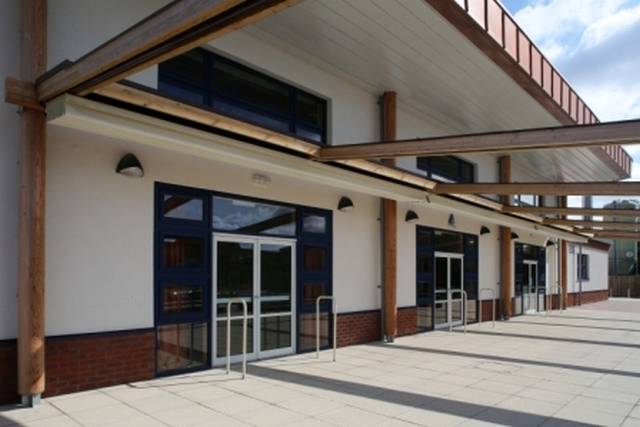

SPW500 Thermally Broken Screening And Door System - Double Door with mid rail

Senior Architectural Systems Ltd Variant:

Door system designed to provide a high performance commercial door and framing solution.

Jump to:
BOS
+44 (0)1709 772600 Website

Application

Suitable for high pedestrian usage.

Description

Designed to provide a high-performance commercial door and framing solution capable of being manufactured in single, double and emergency door types and utilizing low thresholds and a variety of options such as radius anti-finger trap stiles. A thermally broken polyamide framing system, capable of accepting glazing up to 28 mm-thick depending on weight.


Features and benefits:

  • Polyamide thermal barriers are manufactured in accordance with PA66 GF25.
  • Gaskets are manufactured in accordance with BS 3734.


Construction:

Constructed with square cut components, mechanically jointed using self-tapping screws into special cleats, and torsion bars are used for compressive strength. A sealant is used on all metal joints in line with good practice.


Performance:

Differing door configurations produce different ratings; consult manufacturer for details.

General information

Finish

Anodized

Guidance for specification option:

Insert colour requirements, 25 microns (minimum), satin or polished finish available.

Powder-coated

Guidance for specification option:

Insert colour requirements, 40 microns standard and 60 microns available for marine environments.

Material

Aluminium

Width

1150 mm

Guidance for specification option:

Typical size (single doors).

2300 mm

Guidance for specification option:

Typical size (double doors).

Bespoke

Height

2300 mm

Guidance for specification option:

Typical size.

Bespoke

Uniclass

Pr_30_59_24_02 Aluminium doorsetsPrimary

CAWS

H11/135 Doors

L20/480 Doorsets

L20/55 Doorsets

Product range

SPW500 Door & Framing System

Specification data - Aluminium doorsets

Standard

To BS 3734.

Third party accreditation

To PAS 24.

Configuration

Double door with mid rail.

Doorset size

Guidance for specification option:

Insert requirements or drawing/ schedule reference.

Typical size (w x h): 2300 x 2300 mm.

Performance

-

Intruder resistance

-

Minimum requirement

PAS 24.

Frame

-

Material

Aluminium.

Guidance for specification option:

Extruded aluminium: Aluminium alloy 6060 or 6063.T6 to BS EN 755-9.

Finish

-

Coating

Anodized.

Guidance for specification option:

Insert colour requirements, 25 µm (minimum), satin or polished finish available.

Polyester powder coated.

Guidance for specification option:

Insert colour requirements, 40 µm standard and 60 µm available for marine environments.

Texture

As Coating.

Colour

-

Manufacturer guidance

Insert requirements.

  • Polyester powder-coated available in single or dual colour.
  • Anodized/ Anolok coatings available in a limited range of colours.

Consult the manufacturer for the availability of colours and samples.

Door leaf

-

Material

Aluminium.

Glazing

-

Type

Guidance for specification option:

Insert requirements, up to 28 mm thick.

Manifestation

-

Manufacturer guidance

Consult manufacturer for options and insert requirements or omit.

Finish

-

Coating

As Frame.

Anodized.

Guidance for specification option:

Insert colour requirements, 25 µm (minimum), satin or polished finish available.

Polyester powder coated.

Guidance for specification option:

Insert colour requirements, 40 µm standard and 60 µm available for marine environments.

Texture

As Coating.

External colour

As Frame.

Other.

Guidance for specification option:

Insert requirements.

  • Polyester powder-coated available in single or dual colour.
  • Anodized/ Anolok coatings available in a limited range of colours.

Consult the manufacturer for the availability of colours and samples.

Internal colour

As External.

Other.

Guidance for specification option:

Insert requirements.

  • Polyester powder-coated available in single or dual colour.
  • Anodized/ Anolok coatings available in a limited range of colours.

Consult the manufacturer for the availability of colours and samples.

Film thickness (minimum)

As Coating.

Hardware

-

Manufacturer guidance

Insert requirements.

Accessories

-

Manufacturer guidance

Consult manufacturer for options and insert requirements or omit.

U-value

Manufacturer's standard.

Guidance for specification option:

Average: 1.72 W/m²K.

Sustainability data

Country of product manufacture

United Kingdom
