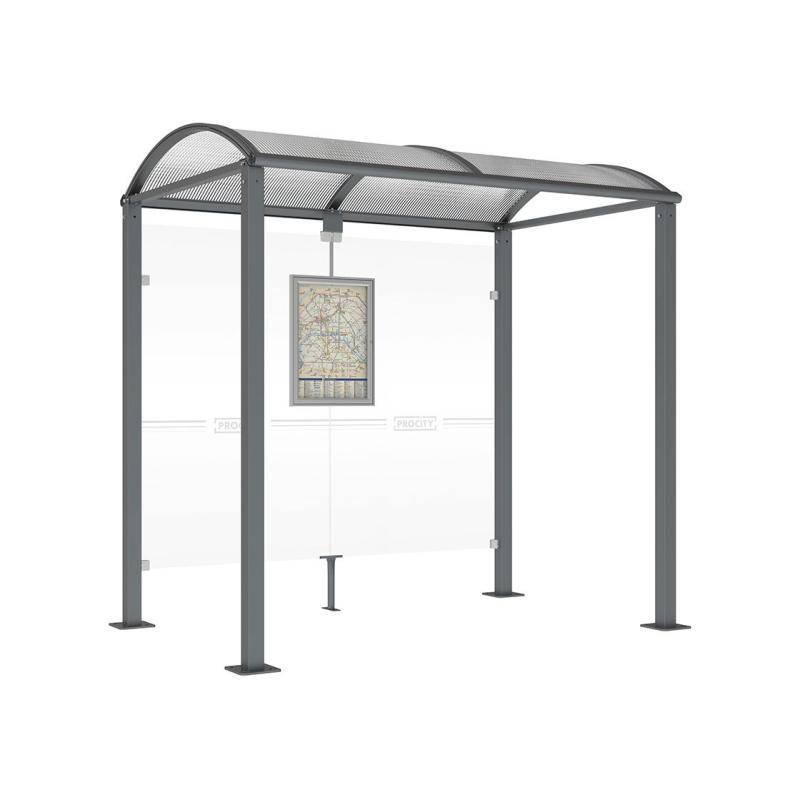

Square post bus shelters

Verified by manufacturer 9 months ago

529208 - 2500 mm, with no side cladding.

Procity Variant:

Bus shelters.

Jump to:
BOS
+44(0)1528488444 Website

Application

Bus shelter for external installation. Bus shelters offer protection from inclement weather conditions in both the public realm or large developments with internal transport.

Description

Our bus shelters have been carefully designed to integrate harmoniously into rural or urban environments.


Features and benefits:

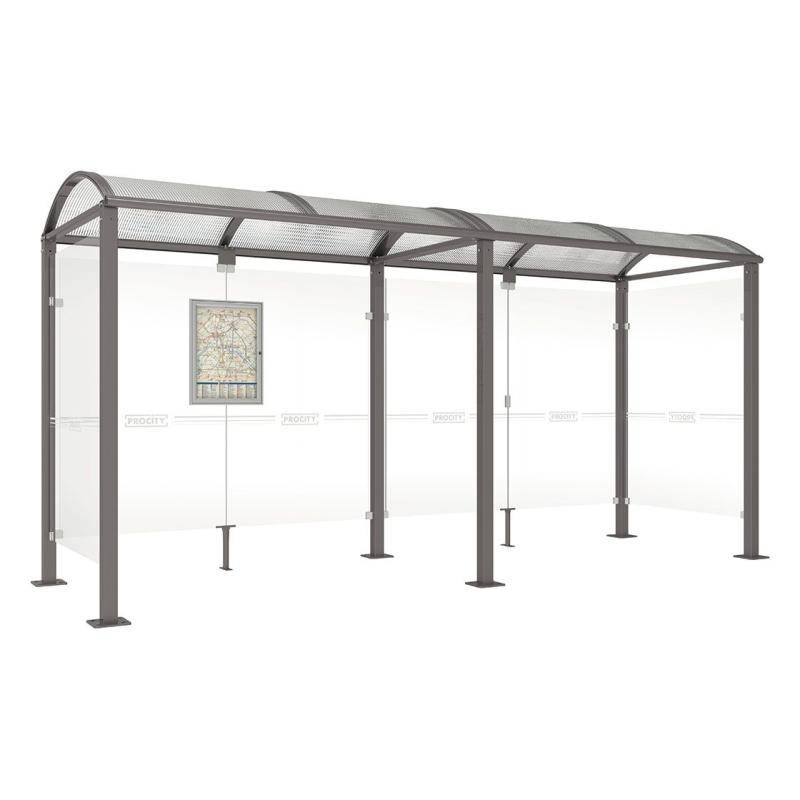

  • The standard square post bus shelter is available in 2500 mm length or 5000 mm for greater passenger waiting capacity.
  • Offers cladding and advertising space as required.
  • Framed structure galvanized steel tubes (80 x 80 mm).
  • Roof structure 60 x 40 mm steel crossbars and aluminium rain gutters, and anti-UV-treated 6 mm cellular polycarbonate dome.
  • Cladding in 8mm safety glass the “PROCITY” safety etching.
  • Available in a large range of painted finishes.
  • Installed on base plates, expansion anchors included.
  • All bus shelters are supplied with rear cladding and a timetable case.
  • Optional seating.
  • Square post bus shelters - Bus shelters - Bus shelters - Procity UK

General information

Color

Grey

White

Blue

Red

Black

Show more

Finish

Galvanized

Painted

Material

Steel

Polycarbonate

Glass

Shape

Rectangle

Length

2500 mm

5000 mm

Width

1600 mm

Guidance for specification option:

Depth

Height

2500 mm

Warranty description

Ten year

Uniclass

Pr_20_65_78_58 Open-sided sheltersPrimary
Pr_20_65_78_77 Semi-closed shelters

CAWS

B91/320 Bus shelter

B91/420 Waiting shelter

B91/385 Shelter

B91/330 Canopy

Specification data - Open-sided shelters

Shelter description

Bus shelter.

Dimensions

-

Plan size

2500 x 1600 mm.

Height

2500 mm.

Frame

-

Material

Steel tube.

Finish

Galvanized and painted.

Guidance for specification option:

RAL colours available for paint: RAL 3020, RAL 3004, RAL 5010, RAL 6005, RAL 8017, RAL 7044, RAL 9010, RAL 9005, Procity grey and Corten effect.

Colour

Red.

Blue.

Green.

Brown.

Grey.

White.

Black.

Procity grey.

Corten effect.

Roof covering

Polycarbonate (6 mm) with anti-UV treatment.

Integral services

None.

Guidance for specification option:

As standard.

LED lighting.

Guidance for specification option:

Powered by 220 V power supply. Electrical wiring (not included) must be installed by a professional electrician

Accessories

Bus stop sign.

Wind protectors around roof.

Perch seat.

None.

Configuration

With no side cladding.

Mounting

Base plates.

Sustainability data

Contains Red List materials

No

Country of material origin

France

Country of product manufacture

France

Recyclability

Steel and aluminium 100% recyclable.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Literature

EN 1090

EN 1090
