ST Solar Lighting Bollard

Verified by manufacturer 3 months ago

Prolectric Third party certifications:
  • Certificate of Compliance

    Certificate type

  • Constructionline Gold

    Constructionline Gold

    Certificate type

Solar Light Bollard - Off-grid lighting for commercial, largescale estates and housing estates.

Jump to:
+44 01275 400 570 Website

Application

Our solar lights save customers thousands of pounds on grid connections, cabling and installation, and the ongoing cost of powering the lights.


The uses include:

  • Car parks.
  • Parks.
  • Military sites.
  • Large commercial estates.
  • School and university campuses.
  • Business parks.
  • Unadopted roadways.
  • Construction and industrial sites.
  • Rural and remote area lighting.
  • Airports and ports.

Description

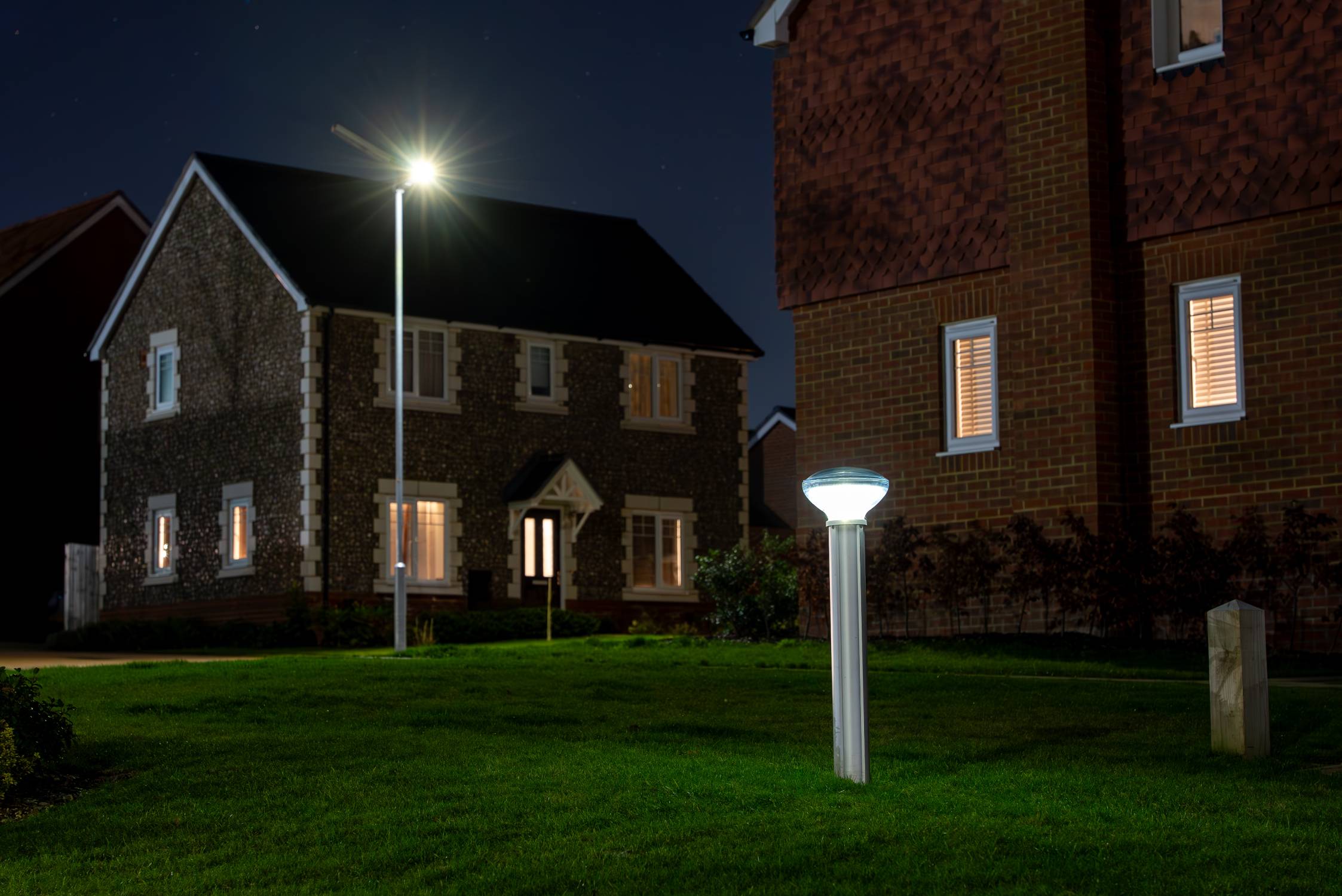

The ST solar bollard uses the latest LED technology for bright illumination with next-generation battery charging to optimize power usage. It is particularly suitable for streets, car parks and footpaths. It has an integrated charging unit to optimize battery charging and ensure light levels remain bright, providing a safer environment.


Features and benefits:

  • 'All in one' compact design.
  • Uses the latest LED technology for bright illumination with next-generation battery charging to optimize power usage.
  • No mains power - no need for trenches or cabling, external electricity or a DNO connection.
  • Reliable battery performance all year round, even during winter.
  • Low cost installation and no on-going running costs.
  • No maintenance.
  • Vandal-resistant - has a polycarbonate domed head for added strength and durability.

General information

Color

Silver

Black

Grey

Finish

Anodized

Material

Aluminium

Polycarbonate

Glass

Shape

Other

Width

257 mm

Warranty description

Ten year

Uniclass

Pr_80_77_48_02 Aluminium lighting bollardsPrimary

CAWS

Q50/31 Bollards

Q50/190 Bollards

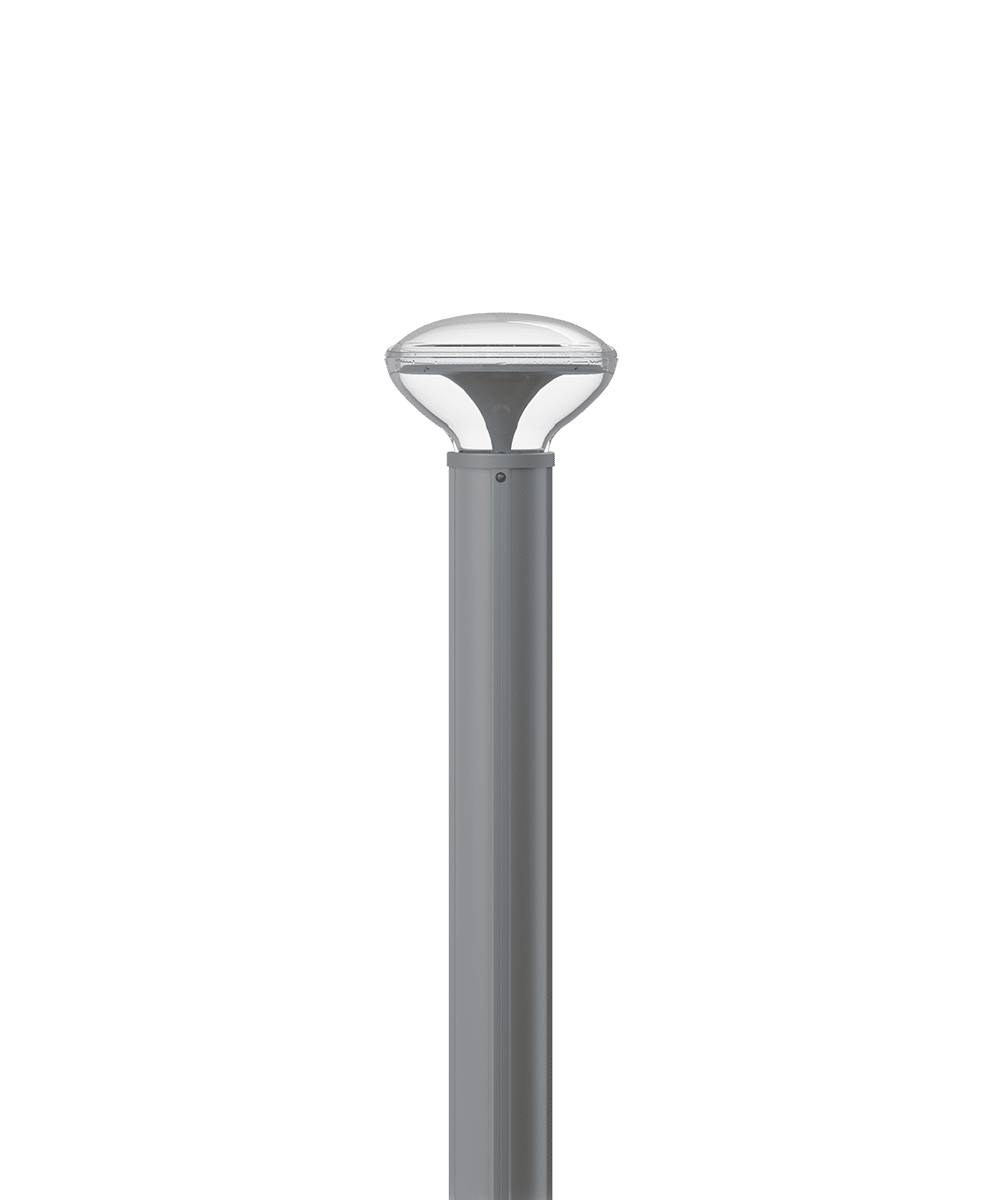

Specification data - Aluminium lighting bollards

Description

Solar lighting bollard.

Manufacturer

Prolectric.

Profile

Parallel-sided.

Cross section

Round.

Base

-

Type

Rooted.

Bollard diameter

257 mm.

Corrosion protection

-

Type

Anodized.

Colour

Silver.

Light source

-

Head

Polycarbonate.

Optic

Clear polycarbonate housing.

Lamp type and rating

1 W LED.

Guidance for specification option:

Nichia Initial, 180 lm/W.

Power

3.2 V d.c.

Manufacturer guidance

System power.

Solar panels

5 W PV peak.

Net weight

3 kg.

Battery

LiFePO4 lithium battery.

Guidance for specification option:

Expected battery recharge cycles: 5500.

Luminous flux

Adjustable lights to suit BS 5489.

Sustainability data

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Aluminium

Polycarbonate

Glass

Manufacturing plant location

Expected Life

Eight year

Third party certifications

Certificate of Compliance

Certificate of Compliance

Safe Contractor

Constructionline Gold

Constructionline Gold

Construction Line Gold

Literature

Prolectric ST Solar Bollard

Prolectric ST Solar Bollard

Case studies

Prolectric Save QinetiQ Farnborough £300k with Solar Lighting Install

Prolectric Save QinetiQ Farnborough £300k with Solar Lighting Install
