Stainless Steel Mirror - Large Mirrors

Verified by manufacturer 6 months ago

Anderson, GEC Ltd

Stainless steel mirrors are safe, durable and shatterproof.

Jump to:
BOS
+44 (0)1442 826999 Website

Application

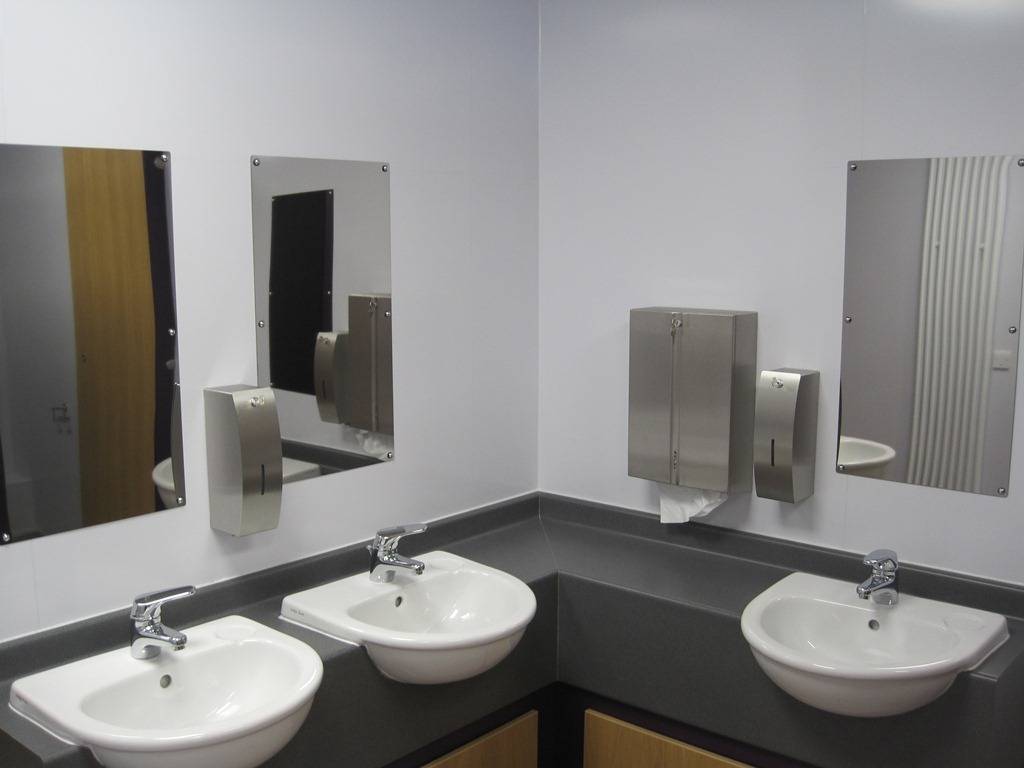

Typical applications include food services, prisons, public buildings, hospitals and schools.


Suitable for:

Commercial Projects

Bathroom

Washroom

Description

A range of stainless steel mirrors.


Features and benefits:

  • The mirrors are free from tarnishing, discoloration, scratches and other defects visible in the designed viewing conditions.
  • Reflection is un-distorted.
  • Made to order in any size. (Maximum size: 2400 x 1200 mm).
  • Manufactured from 1 mm, high grade (EN1.4301), mirror polished stainless steel.
  • Available with square or rounded corners, to be specified.
  • Fix using either adhesive or screws.
  • Screw-holes are provided as required.

General information

Color

Grey

Finish

Polished

Material

Stainless steel

Steel

Shape

Rectangle

Length

Bespoke

Guidance for specification option:

Maximum size: 2400 x 1200 mm.

Width

1 mm

Guidance for specification option:

Manufactured from 1 mm, high grade (EN1.4301).

Height

Bespoke

Guidance for specification option:

Maximum size: 2400 x 1200 mm.

Warranty description

Five year

Uniclass

Pr_40_30_53_30 Framed glass mirrorsPrimary

CAWS

N10/270 Mirrors

N13/438 Mirrors

Product range

Sanitaryware / Mirrors

Specification data - Framed glass mirrors

Materials and standards

-

Materials

1 mm, high grade (EN1.4301), mirror polished stainless steel.

Dimensions

2400 x 1200 mm (maximum).

Guidance for specification option:

Insert requirements.

Thickness

1 mm.

Finish

Polished.

Frame

-

Material

Stainless steel.

Finish

Polished.

Colour

Grey.

Edges

-

Profile

Square.

Rounded corners.

Provision for fixing

Ashesive.

Screws.

Guidance for specification option:

Screw holes provided as required.

Sustainability data

Contains Red List materials

No

Country of material origin

Europe

Country of product manufacture

Europe

Recyclability

100

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

0 %

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit

Revit 2017

1

IFC
-

1

Literature

GEC Anderson Combined Product Literature- The Complete Range Overview with Detailed Specification Data, Examples, Applications, History & Insight into GEC Anderson Stainless Steel

GEC Anderson Combined Product Literature- The Complete Range Overview with Detailed Specification Data, Examples, Applications, History & Insight into GEC Anderson Stainless Steel

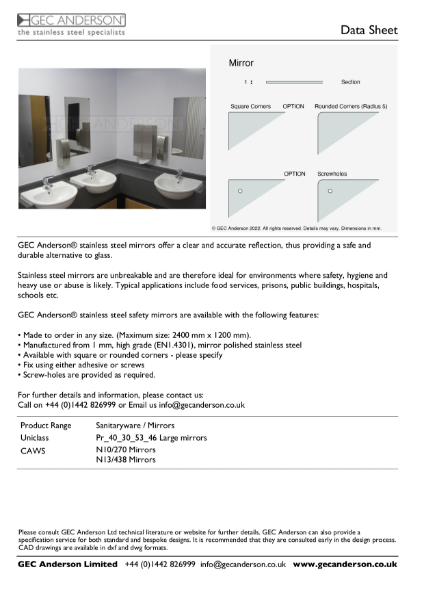

GEC Anderson Data Sheet - Mirror

GEC Anderson Data Sheet - Mirror

Made-to-measure Stainless Steel - Stainless Steel Sinks, Worktops, Cabinets, Panels, Doors and Shelving are Produced to Meet Precise Requirements, Dimensions and Specifications

Made-to-measure Stainless Steel - Stainless Steel Sinks, Worktops, Cabinets, Panels, Doors and Shelving are Produced to Meet Precise Requirements, Dimensions and Specifications
