Verified by manufacturer 6 months ago

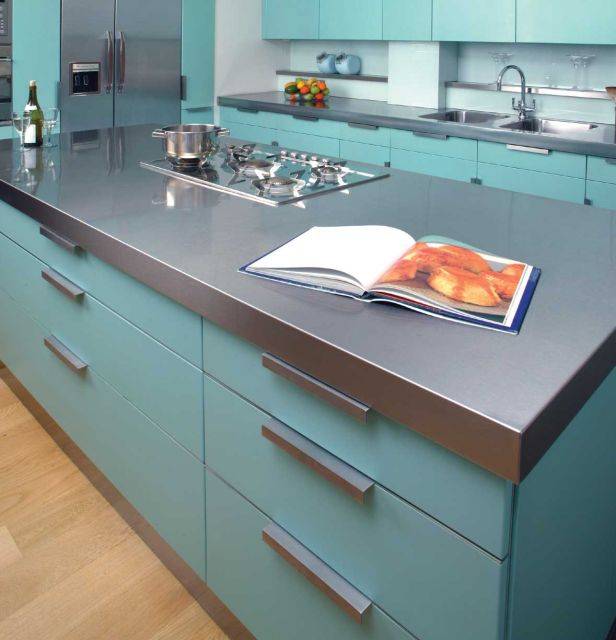

Made to measure stainless steel worktop. Variable shape, size, edge profiles, sink bowls and cutouts.
Suitable for:
Worktop products are manufactured using 1 mm, 1.25 mm, 1.5 mm and 2 mm brushed-satin stainless steel of domestic grade (EN 1.4301) or alternatively, acid resisting grade for laboratories/ special environments (EN 1.4401). The actual gauge is normally dependent on size of item.
Features and benefits (Textured finish):
Features and benefits (Brushed satin finish):
Color | Silver |
Finish | Satin Textured Brushed |
Material | Stainless steel Steel |

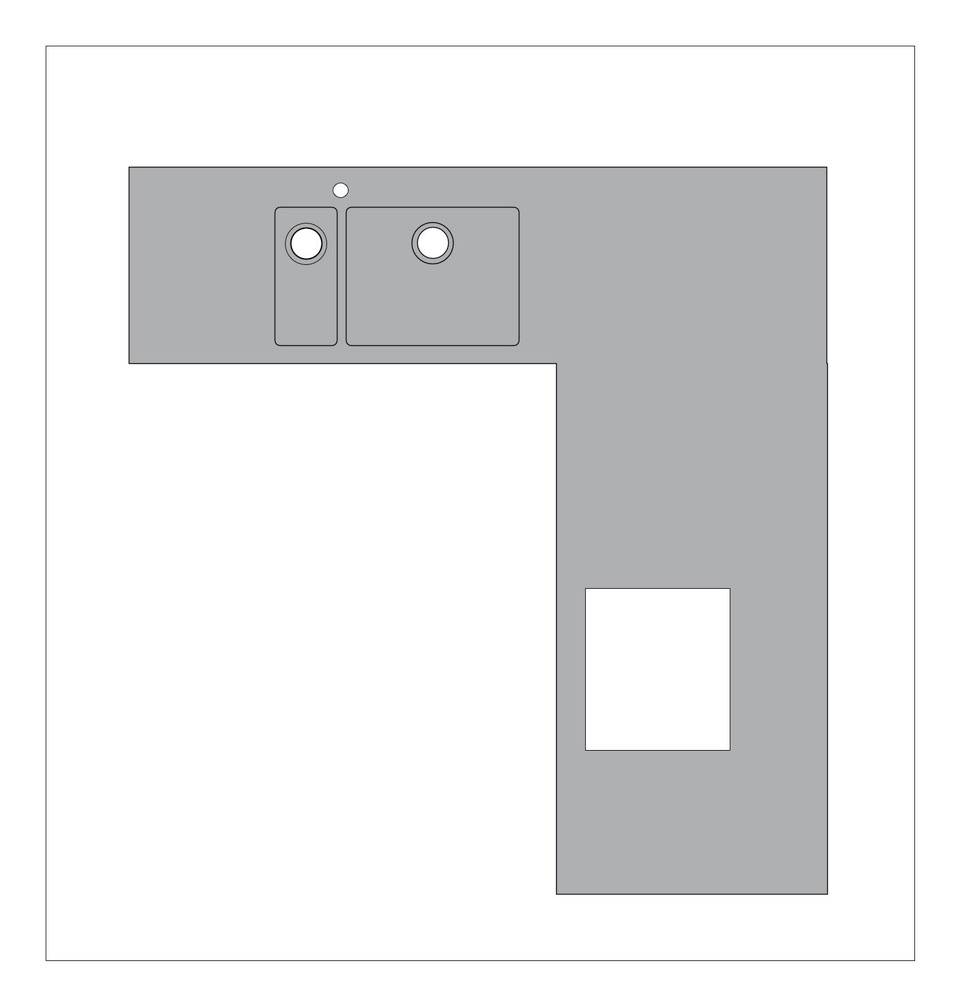

Shape | Other Guidance for specification option: L-shaped. |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Five year |
Uniclass | |
CAWS | N12/320 Worktops N11/340 Worktops N11/20 Worktops N10/200 Worktops N10/145 Vanity and washroom furniture N10/110 Purpose-made N10/10 Purpose-made |
Product range |
Material | Stainless steel to EN 1.4301.Guidance for specification option: As standard. Stainless steel to EN 1.4401. |
Dimensions | |
Plan size | As drawing.Guidance for specification option: Any size available. |
Thickness | 1 mm.1.25 mm.1.5 mm.2 mm. |
Exposed edges | |
Profile | Edge 1.Guidance for specification option: Watersafe back edge for tiling. Edge 2.Guidance for specification option: Watersafe side edge. Edge 3.Guidance for specification option: Watersafe front edge. Edge 4.Guidance for specification option: Anti-drip side/ back edge. Edge 5.Guidance for specification option: Anti-drip front edge. Edge 6.Guidance for specification option: Square back/ side up-stand. Edge 7.Guidance for specification option: Square front edge. Edge 8.Guidance for specification option: Square side/ back edge. Edge 10.Guidance for specification option: Back/ side up-stand. Edge 10R.Guidance for specification option: Back/ side up-stand. HTM63 Edges.Guidance for specification option: Bullnose front and back up-stand. Inset Edge. |
Cutouts | Required.Guidance for specification option:
Not required. |
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | Europe |
Recyclability | 100 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
Platform | Compatible | Version |
---|---|---|
- | 1 | |
Revit 2017 | 1 |
GEC Anderson Combined Product Literature- The Complete Range Overview with Detailed Specification Data, Examples, Applications, History & Insight into GEC Anderson Stainless Steel

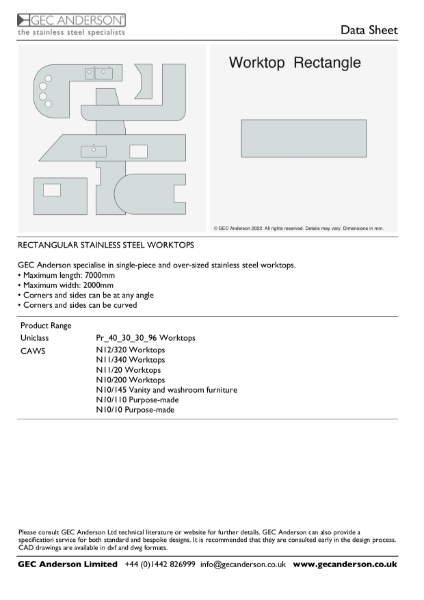

GEC Anderson Data Sheet - Stainless Steel Worktops
GEC Anderson Data Sheet - Worktop L-Left
GEC Anderson Data Sheet - Worktop L-Right
Made-to-measure Stainless Steel - Stainless Steel Sinks, Worktops, Cabinets, Panels, Doors and Shelving are Produced to Meet Precise Requirements, Dimensions and Specifications
