Standard Bow Top Railings

Name: Standard Bow Top Railings
Brand: Alpha Rail Ltd
SKU: pv6TF3Kbc32tfB3g2mBSZ7

Verified by manufacturer 5 months ago

Alpha Rail Ltd

Third party certifications:

ISO 9001 Quality Management
Certificate type

Steel bow top railings.

Jump to:

+44 (0)1623 750214 Website

Application

Railings suitable for:

Housing developments.

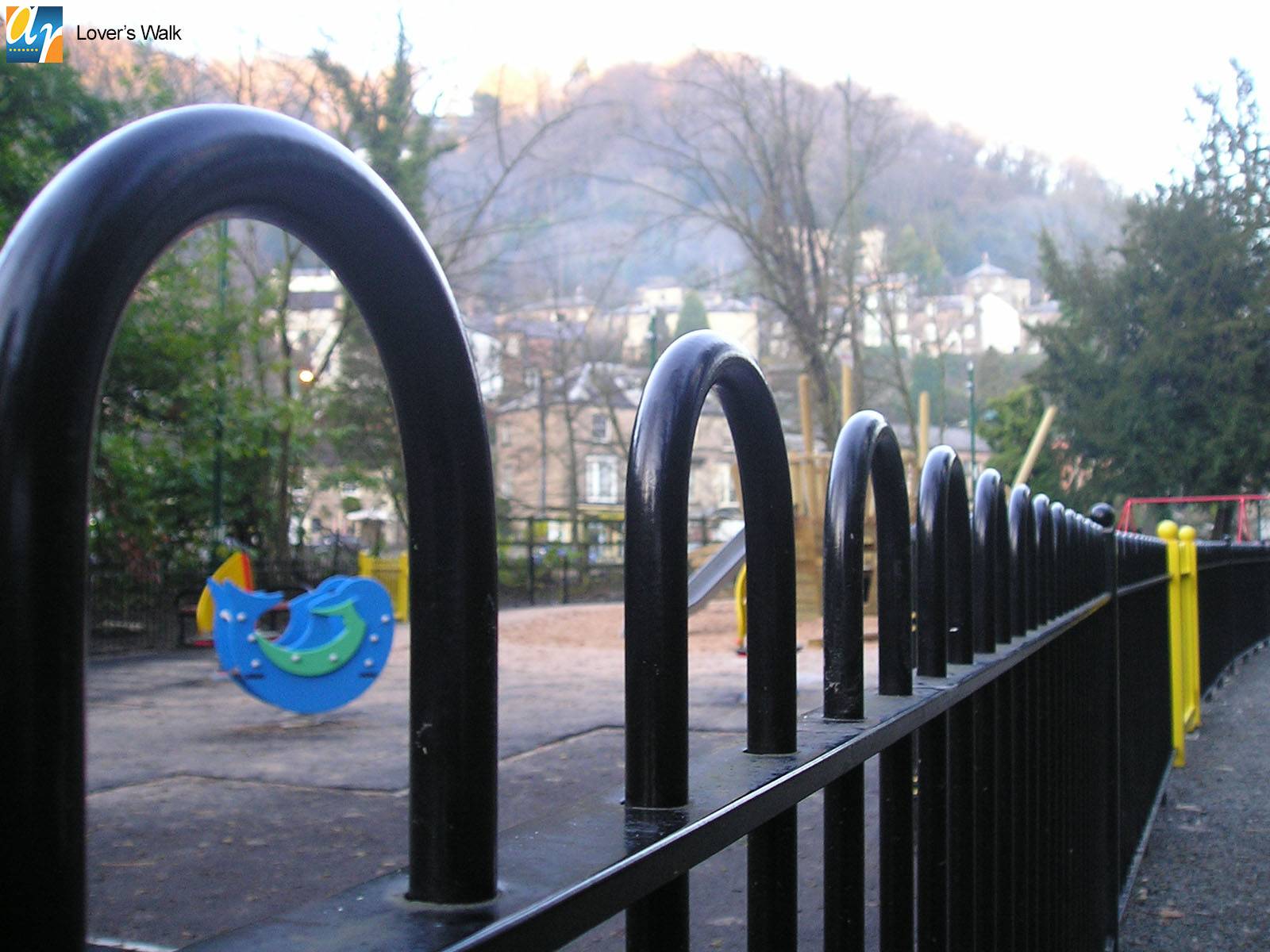

Schools, colleges and universities.

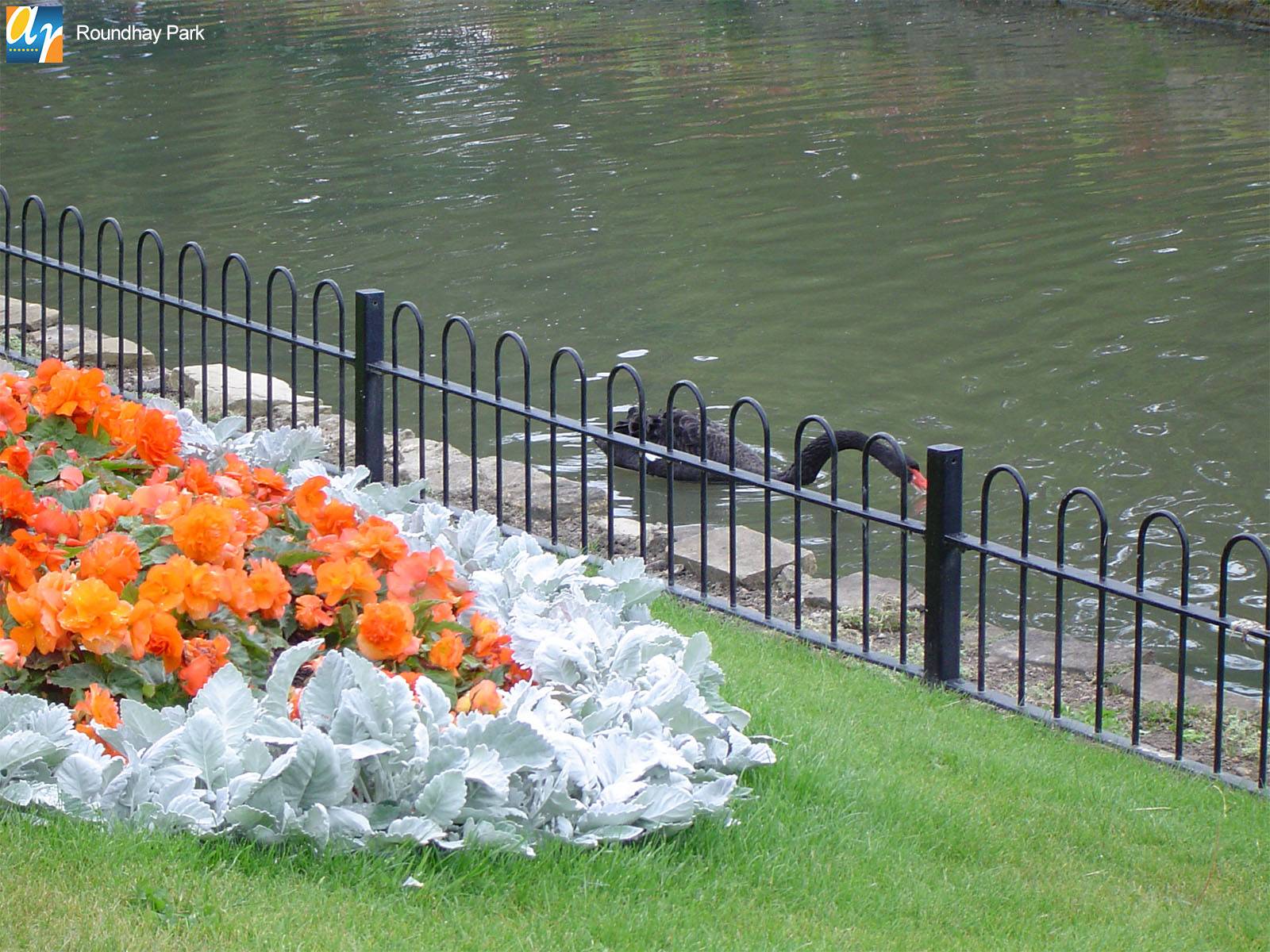

Parks and outdoor space perimeters.
commercial and industrial properties

Description

Standard bow top railings provide a safe environment and decorative touch. They are resistant to various weather conditions, making them particularly suitable for long-term use. Bow top railings can be used for a wide variety of applications.

Features and benefits:

Indicate boundaries and restricted areas.
Resistant to various weather conditions.
Manufactured from steel.
Solid sections S275JR.
Hollow sections S235JR.
Supplied hot dipped galvanized.
Optional polyester powder-coating to a RAL colour.
Panel to post fixings included.
Manufactured and compliant with BS 1722 part 9.

General information

Color	Black Green Grey Silver Blue Other Show more
Finish	Galvanized Powder-coated
Material	Steel
Shape	Rectangle
Length	Bespoke
Width	Bespoke
Height	500 mm 900 mm 1100 mm 1500 mm 1800 mm 2000 mm Bespoke Show more

Uniclass	Ss_25_14_61_86 Steel vertical bar fencing systemsPrimary
CAWS	Q40/340 Steel vertical bar fencing Q40/430 Proprietary fencing Q40/30 Proprietary fencing

Specification data - Steel vertical bar fencing systems

Standard	To BS 1722-9.
Posts	Steel 50 x 50 mm SHS posts. Guidance for specification option: Up to 1.6 m high. Steel 70 x 70 mm SHS posts. Guidance for specification option: Up to 2 m high.
Post foundations	Ground fixed into concrete foundation. Base plated fixing. Rooted into pockets. Manufacturer guidance Consult manufacturer for details.
Base boards	Carbon steel panels.
Rails	30 x 10 mm RSF rails. 40 x 10 mm RSF rails. 50 x 10 mm RSF rails.
Panels	Steel panels with Ø12 mm bows. Guidance for specification option: Up to 1.2 m high. Steel panels with Ø16 mm bows. Guidance for specification option: Up to 1.4 m high. Steel panels with Ø20 mm bows. Guidance for specification option: Up to 2 m high.
System accessories	Not required. Single leaf gate to suit. Double-leaf gates to suit. Support legs.

Panel height	500 mm. 900 mm. 1100 mm. 1500 mm. 1800 mm. 2000 mm. Bespoke. Guidance for specification option: Consult manufacturer and insert requirements. Show more
Post centres	2750 mm maximum.
Finish	Hot dip galvanized to BS EN ISO 1461.
Factory applied coating	Not required. Polyester powder-coated. Guidance for specification option: Powder-coated to any RAL or BS colour. Insert requirements.
Fixings	Panel to post fixings.
