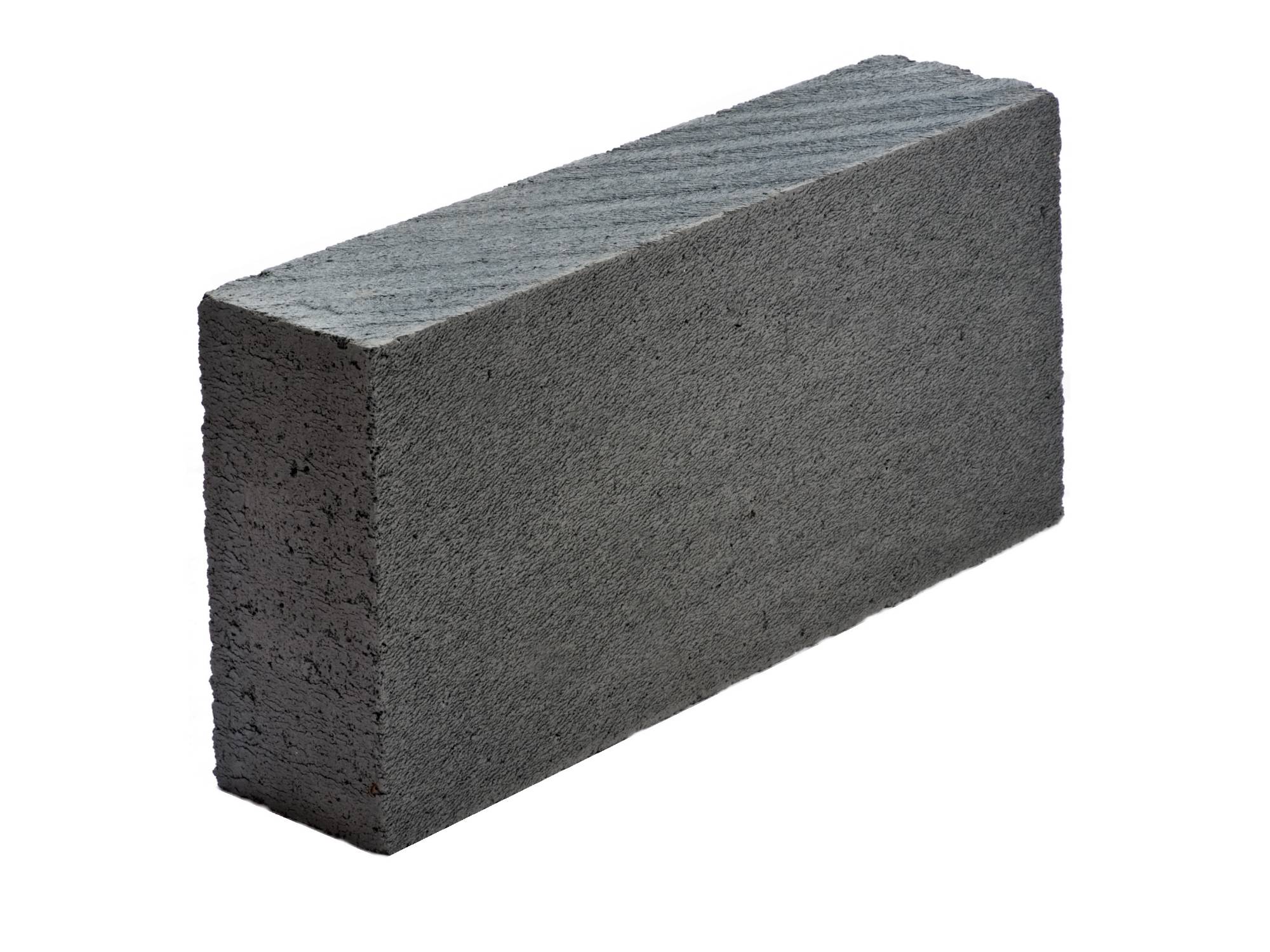

Standard Grade Celcon Block - Aircrete
Verified by manufacturer 4 months ago
440 x 75 x 215 mm
440 x 75 x 215 mm

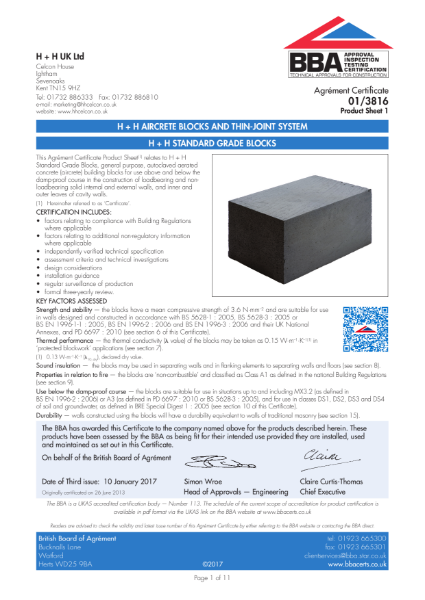

BBA Agrément Certificate
Certificate type
Aerated autoclaved concrete blocks.
Application
For use above and below the damp-proof course in the construction of loadbearing and non-loadbearing solid internal and external walls, and inner and outer leaves of cavity walls. Suitable for:
- Foundations;
- Internal and external leaf of cavity walls;
- Solid walls;
- Separating walls;
- Partitions;
- Multi-storey buildings;
- Beam and block floors (a separate BBA Certificate covers the product's use as floor infill);
- Flanking walls.
Description
Standard strength, aerated autoclaved concrete blocks available in a range of thicknesses.
Features and benefits:
- BBA certified.
- Fire resistant.
General information
Color | Grey |
Material | Autoclaved aerated concrete (AAC) |
Shape | Rectangle |
Length | 440 mm |
Width | 75 mm 100 mm 140 mm 150 mm 215 mm |
Height | 215 mm |
Uniclass | |
CAWS | F10/360 Autoclaved aerated concrete (AAC) common blockwork F10/37 Autoclaved aerated concrete (AAC) common blockwork F10/370 Thin-joint autoclaved aerated concrete (AAC) common blockwork F10/39 Thin joint autoclaved aerated concrete (AAC) common blockwork |
Specification data - Autoclaved aerated concrete (AAC) blocks
Standard | To BS EN 771-4. |
Configuration | Group 1. |
Mean compressive strength (minimum) | 3.6 N/mm². |
Category | II. |
Thermal conductivity (maximum) | 0.15 W/m·K. |
Recycled content | 80%. |
Work sizes (length x width x height) | 440 x 75 x 215 mm. |
Tolerance category | GPLM. |
Density | 600 kg/m³. |
Reaction to fire | Euroclass, A1. |
Moisture movement | 0.4 mm/m. |
Shear bond strength | 0.15 N/mm². |
Weight | 5 kg. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | Yes, at end of life |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 80 % |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 AECOsim | - | 1 |
 Revit | - | 6 |
 IFC | - | 3 |
 Vectorworks | - | 1 |
 ARCHICAD | - | 1 |
Third party certifications
Literature
Products and Applications Guide
