Verified by manufacturer 6 months ago
325 x 300 x 215 mm
BBA Agrément Certificate
Certificate type

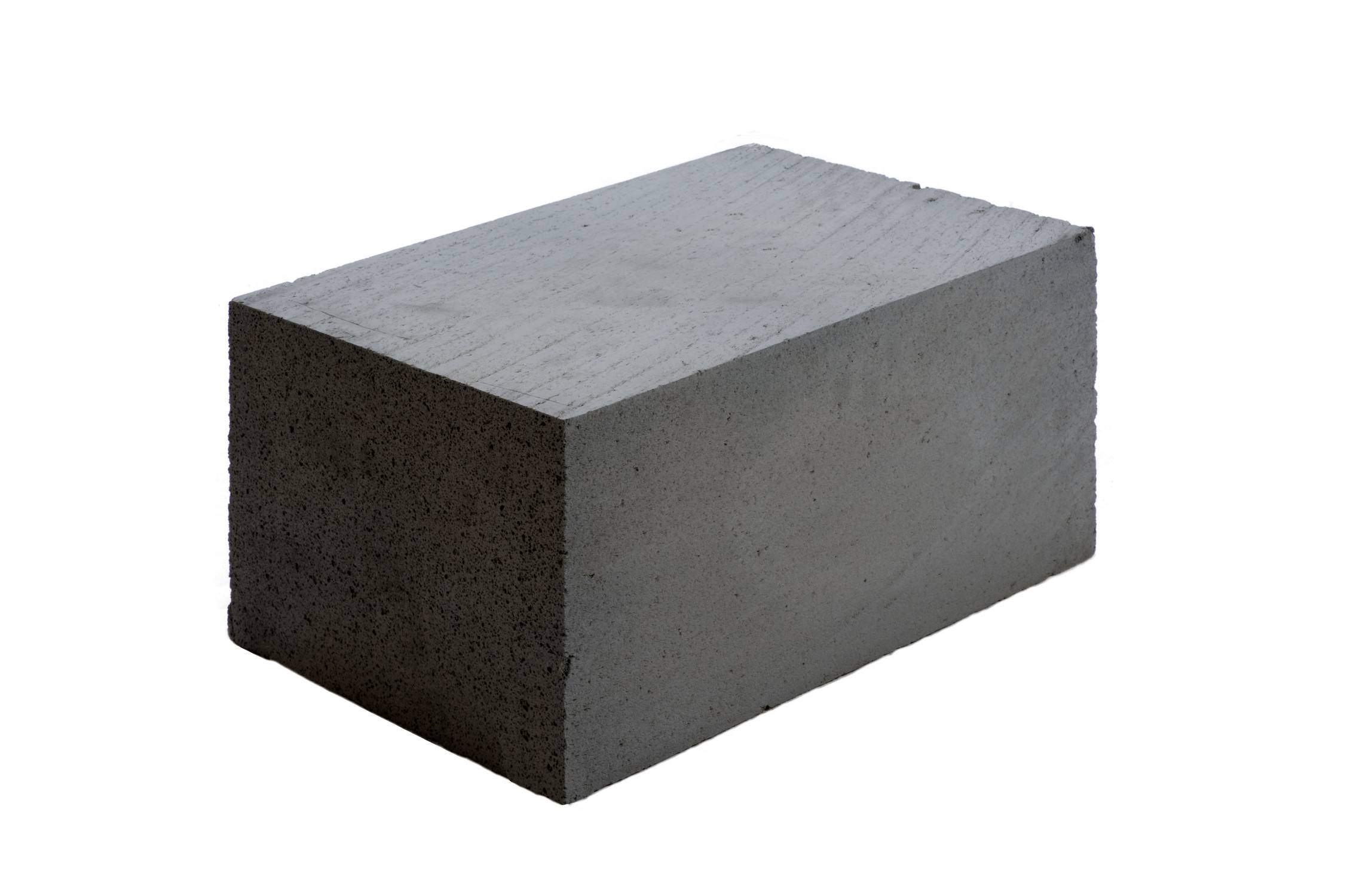

Aerated autoclaved concrete foundation blocks.
Suitable for use below damp proof course (DPC) level.
Standard strength, aerated autoclaved concrete foundation blocks available in a range of thicknesses. Foundation Blocks may also be used above ground for solid wall construction.
Features and benefits:
Color | Grey |
Material | Autoclaved aerated concrete (AAC) |
Shape | Rectangle |
Length | 440 mm 325 mm |
Width | 275 mm 300 mm 355 mm |
Height | 215 mm |
Uniclass | |
CAWS | F10/360 Autoclaved aerated concrete (AAC) common blockwork F10/37 Autoclaved aerated concrete (AAC) common blockwork F10/370 Thin-joint autoclaved aerated concrete (AAC) common blockwork F10/39 Thin joint autoclaved aerated concrete (AAC) common blockwork |
Standard | To BS EN 771-4. |
Mean compressive strength (minimum) | 3.6 N/mm². |
Thermal conductivity (maximum) | 0.24 W/m·K. |
Recycled content | 80%. |
Work sizes (length x width x height) | 325 x 300 x 215 mm. |
Density | 600 kg/m³. |
Weight | 16 kg. |
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | At end of life Manufacturer guidanceYes at end of life. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 80 % |
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
