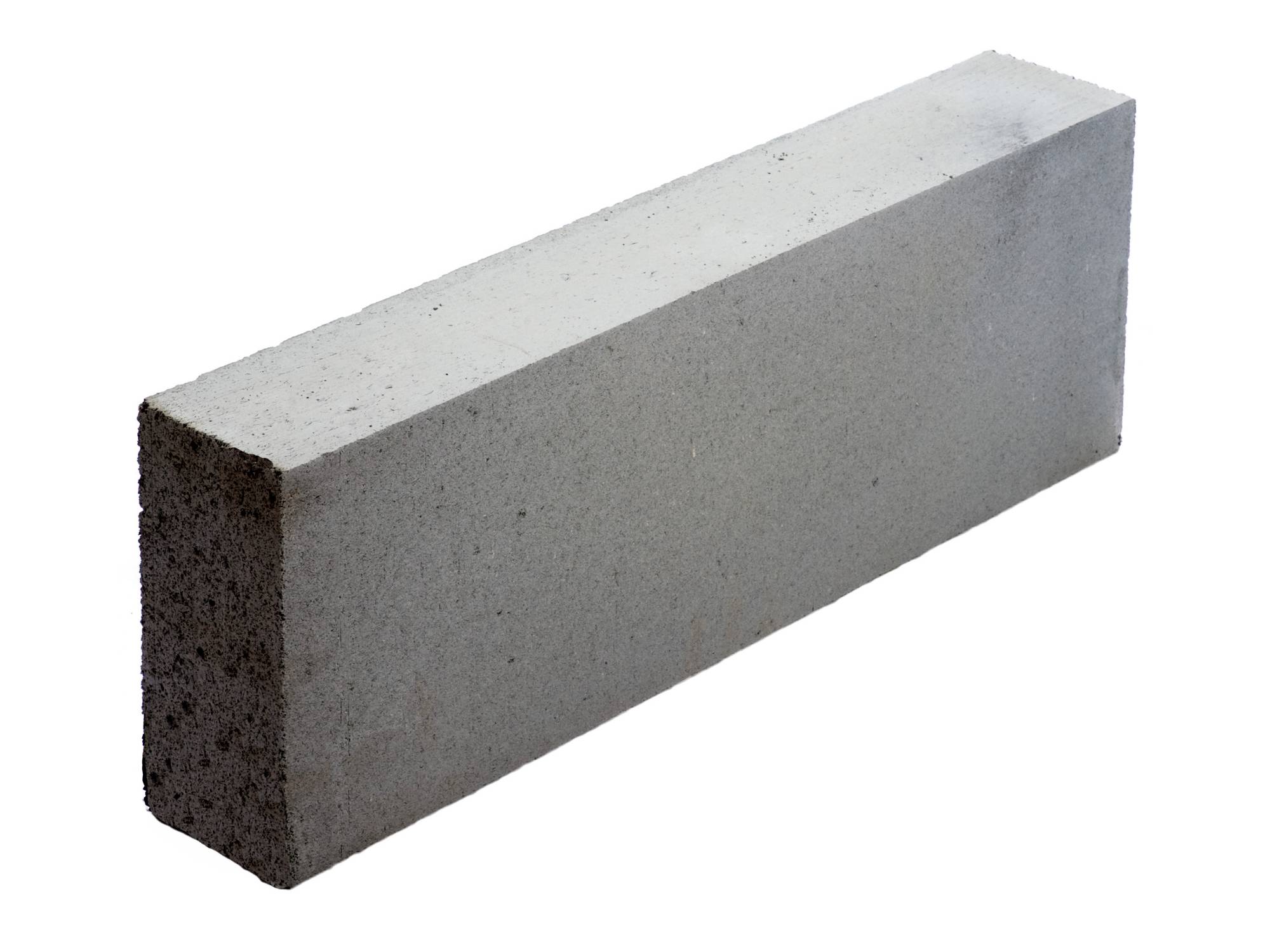

Standard Grade Celcon Plus Block - Aircrete

Verified by manufacturer 6 months ago

630 x 100 x 215 mm

H+H UK Ltd Variant:
Third party certifications:
  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

Standard Grade Aircrete large format block for both traditional and MMC.

Jump to:
BOS
+44 (0)1732 886444 Website

Application

Suitable for loadbearing and non‐loadbearing applications in all forms of walling including single leaf, cavity, partitions, retaining and basements:

  • Internal and external leaf of cavity walls;
  • Solid walls;
  • Separating walls;
  • Partitions;
  • Multi-storey buildings;
  • Flanking walls;
  • Foundations.

Description

Longer, standard strength, aerated autoclaved concrete blocks produced using the latest manufacturing technology.


Features and benefits:

  • Ranked amongst the most dimensionally accurate blocks available.
  • Ideal for use with H+H’s Thin-Joint System.
  • BBA certified.
  • Fire resistant.

General information

Color

Grey

Material

Autoclaved aerated concrete (AAC)

Shape

Rectangle

Length

630 mm

Width

100 mm

140 mm

150 mm

200 mm

Height

215 mm

Uniclass

Pr_20_93_52_05 Autoclaved aerated concrete (AAC) blocksPrimary

CAWS

F10/360 Autoclaved aerated concrete (AAC) common blockwork

F10/37 Autoclaved aerated concrete (AAC) common blockwork

F10/370 Thin-joint autoclaved aerated concrete (AAC) common blockwork

F10/39 Thin joint autoclaved aerated concrete (AAC) common blockwork

Specification data - Autoclaved aerated concrete (AAC) blocks

Standard

To BS EN 771-4.

Mean compressive strength (minimum)

3.6 N/mm².

Thermal conductivity (maximum)

0.15 W/m·K.

Recycled content

80%.

Work sizes (length x width x height)

630 x 100 x 215 mm.

Tolerance category

TLMA.

Density

600 kg/m³.

Reaction to fire

Euroclass, A1.

Weight

10 kg.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

Yes, at end of life

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

80 %

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC
-

3

Vectorworks
-

1

Revit
-

6

AECOsim
-

1

ARCHICAD
-

1

Third party certifications

BBA Agrément Certificate

BBA Agrément Certificate

05/4275

BBA Agrément Certificate

BBA Agrément Certificate

01/3816
