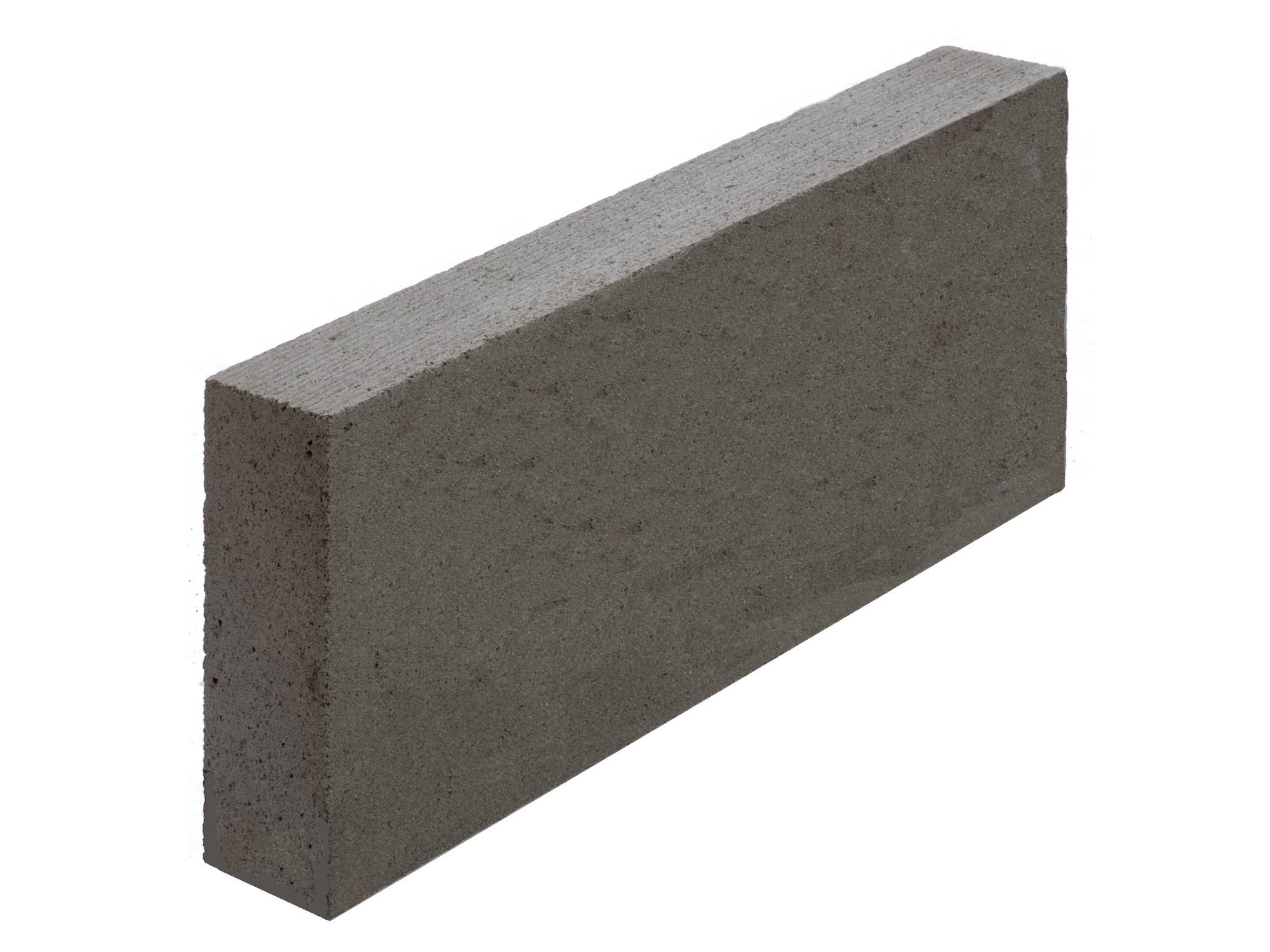

Standard Grade Jumbo Blok - Autoclaved Aerated Concrete
Verified by manufacturer 5 months ago
630 x 100 x 250 mm
630 x 100 x 250 mm
BBA Agrément Certificate
Certificate type
Standard Grade Jumbo Blok for large format and MMC.
Application
Suitable for loadbearing and non-loadbearing applications in all forms of walling including single leaf, cavity, partitions, retaining and basements:
- Internal and external leaf of cavity walls;
- Partitions;
- Flanking walls;
- Multi-storey buildings;
- Separating walls.
Description
Larger, standard grade, aerated autoclaved concrete blocks offering beneficial productivity, with as few as 6.3 blocks completing 1 m² of walling.
Features and benefits:
- Enhances the speed of build on site.
- A high degree of dimensional accuracy.
- Ideal for use with Celfix mortar.
- Ideal for use with H+H’s Thin-Joint System.
- BBA certified.
- Fire resistant.
- Available in a range of thicknesses.
General information
Color | Grey |
Material | Autoclaved aerated concrete (AAC) |
Shape | Rectangle |
Length | 630 mm |
Width | 100 mm 140 mm |
Height | 250 mm |
Uniclass | |
CAWS | F10/360 Autoclaved aerated concrete (AAC) common blockwork F10/37 Autoclaved aerated concrete (AAC) common blockwork F10/370 Thin-joint autoclaved aerated concrete (AAC) common blockwork F10/39 Thin joint autoclaved aerated concrete (AAC) common blockwork |
Specification data - Autoclaved aerated concrete (AAC) blocks
Standard | To BS EN 771-4. |
Configuration | Group 1. |
Mean compressive strength (minimum) | 3.6 N/mm². |
Category | II. |
Thermal conductivity (maximum) | 0.15 W/m·K. |
Recycled content | 80%. |
Work sizes (length x width x height) | 630 x 100 x 250 mm. |
Tolerance category | TLMA. |
Density | 600 kg/m³. |
Reaction to fire | Euroclass, A1. |
Moisture movement | 0.4 mm/m. |
Shear bond strength | 0.30 N/mm². |
Weight | 12 kg. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | Yes, at end of life |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 80 % |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Vectorworks | - | 1 |
 AECOsim | - | 1 |
 ARCHICAD | - | 1 |
 Revit | - | 6 |
 IFC | - | 3 |
Third party certifications
Literature
Products and Applications Guide
