Stannah A2T Public Transport Escalator

Verified by manufacturer 15 days ago

Stannah Lifts Third party certifications:
  • Health & Safety Accreditation

    Health & Safety Accreditation

    Certificate type

  • CHAS

    CHAS

    Certificate type

  • ISO 14001 Environmental Management Systems

    Certificate type

  • ISO 45001 Health and Safety Management

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

Escalator which is suited to demanding environments such as public transport systems.

Jump to:
+44 (0)1264 343777 Website

Application

For demanding environments such as public transport systems.

Description

The A2 family of escalators offers a wide range of tread sizes, inclines, widths and lengths. Every unit is quality engineered and finished to the highest specifications. The products all carry a wealth of safety features as standard. Passenger safety is a top priority.


The A2T range of escalators offers options for tread widths, unit widths and lengths. Each unit is robust and finished with stainless steel panel balustrades.


Features and benefits:

  • Smooth and quiet ride:

Designed on the principles of minimal friction, vibration and noise, offering not only a smooth and quiet ride, but also benefits from minimal wear and fatigue, high efficiency and offers durability and minimal maintenance requirements. Features include:


  • Low vibration and low noise motor and gear drive.
  • Acoustically treated one piece die-cast aluminium steps/pallets.
  • Robust truss structure.
  • Rigid and precision guide rails.


  • Energy efficiency:

In addition to the standard efficient worm gear drive, numerous options are available to enhance the energy efficiency:


  • High efficiency helical gear drive.
  • Motor energy control.
  • VVVF control.
  • Auto start/stop control.


  • Advance control system:

Escalators include an advanced ADV microprocessor control system designed specifically for escalator and moving walkway application. The ADV control system closely monitors and controls operation with the following control capability:


  • Dot matrix LCD or LED display.
  • MP3 voice announcement.
  • Automatic start/stop control with passenger detection and time.
  • Schedule operation.
  • RS485 communication link for interface to BMS or remote.

All equipment fulfils the safety requirements of the EC Directive, carries the CE Mark and complies with BS EN 115. Stannah is quality assured to ISO 9001 accreditation.

General information

Color

Silver

Guidance for specification option:

Silver painted die-cast aluminium alloy, yellow synthetic resin demarcation line.

Yellow

Guidance for specification option:

Demarcation line.

Black

Guidance for specification option:

Synthetic rubber for handrail.

Other

Guidance for specification option:

As per manufacturer and includes range of handrail colours option available.

Finish

Painted

Material

Steel

Guidance for specification option:

Stainless steel.

Aluminium

Guidance for specification option:

Die-cast aluminium alloy.

Shape

Rectangle

Length

Bespoke

Width

600 mm

800 mm

1000 mm

Height

3000 mm

9000 mm

Warranty description

One year

Uniclass

Pr_65_80_28_21 EscalatorsPrimary

CAWS

L30/20 Stairs

L30/270 Stairs

Product range

Escalators & Moving walkways

Specification data - Escalators

Standard

To BS EN 115-1.

Angle of inclination

30°.

Speed

0.5–0.75 m/s.

Motor starting method

Gear drive.

Landing floor plates

-

Material

Stainless steel.

Guidance for specification option:

Standard.

Aluminium alloy.

Guidance for specification option:

Optional.

Finish

Stainless steel with black etched grooves.

Guidance for specification option:

Standard.

Aluminium alloy with black grooves.

Guidance for specification option:

Optional.

Comb plates

-

Material

Aluminium alloy.

Guidance for specification option:

Natural colour aluminium alloy.

Demarcation marking

None.

Yellow powder coated.

Guidance for specification option:

Optional.

Step treads

-

Material

Die-cast aluminium alloy.

Finish

Silver painted, yellow synthetic resin demarcation line.

Guidance for specification option:

Standard.

Black painted grooves.

Guidance for specification option:

Optional.

Width (nominal)

600 mm.

800 mm.

1000 mm.

Height (maximum)

200 mm.

Depth (minimum)

400 mm.

Step demarcation markers

-

Location

Yellow synthetic resin demarcation line.

Level steps

Three.

Balustrades

-

Material

Stainless steel panel.

Height (minimum)

900 mm.

Handrail

-

Material

Vulcanized rubber with steel cord reinforcement.

Guidance for specification option:

Black, synthetic rubber, continuous vulcanized, with steel cord reinforcement and nylon cord gliding surface.

Colour

Black.

Other.

Guidance for specification option:

Includes 11 colours option available. Consult manufacturer for details.

Lighting

Not required.

Required.

Guidance for specification option:

Under handrail lighting.


Under handrail lighting can be fitted to the A2T Public Transport Escalators only.

Skirting

-

Material

Hairline stainless steel.

Guidance for specification option:

Standard.

Black anti-friction coating.

Guidance for specification option:

Optional.

Clear anti-friction coating.

Guidance for specification option:

Optional.

Lighting

Not required.

Required.

Guidance for specification option:

On skirt and comb.


To provide better illumination, skirt and comb lighting can be fitted to all A2 escalators.

Decking

-

Material

Hairline finished stainless steel.

Guidance for specification option:

Standard.

Mirror finished stainless steel.

Guidance for specification option:

Optional.

Other.

Guidance for specification option:

Various combinations of stainless steel or brass with coloured, hairline or mirror finish optionally available, consult manufacturer for details.

Width

1560 mm.

Guidance for specification option:

Step Width: 1000 mm

1360 mm.

Guidance for specification option:

Step Width: 800 mm.

1160 mm.

Guidance for specification option:

Step Width: 600 mm.

Cladding material

Guidance for specification option:

Various options available e.g. stainless steel, glass and marble. Consult manufacturer for details.

Rise

Guidance for specification option:

3000—9000 mm.

Sustainability data

Contains Red List materials

No

Country of material origin

China

Country of product manufacture

China

Recyclability

Glass, steel and aluminium can be recycled.

Third party certifications

Third party certifications

Health & Safety Accreditation

Health & Safety Accreditation

Certificate of Health & Safety Accreditation

CHAS

CHAS

CHAS – Contractors Health and Safety Assessment Scheme SSIP

ISO 14001 Environmental Management Systems

ISO 14001 Environmental Management Systems

ISO 14001 Environmental Management

ISO 45001 Health and Safety Management

ISO 45001 Health and Safety Management

ISO 45001 Health and Safety Management

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001 Quality Management

Literature

Stannah Escalators & Moving Walkways brochure

Stannah Escalators & Moving Walkways brochure

Case studies

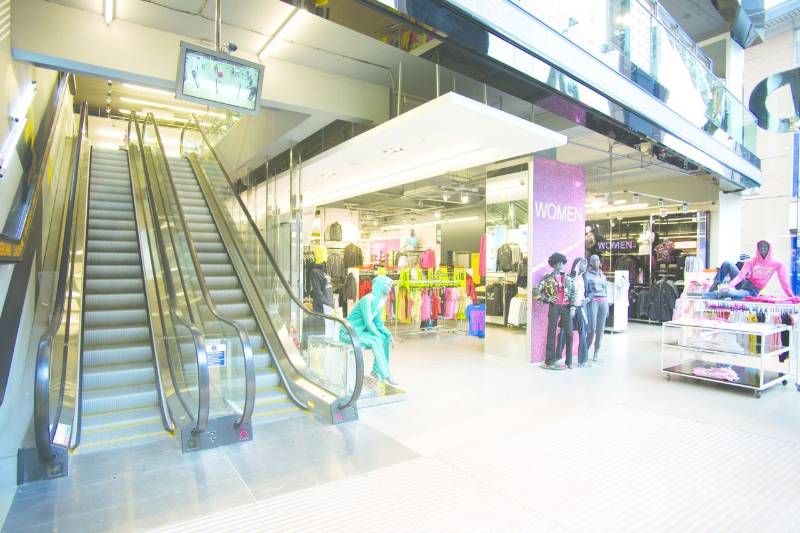

JD Sports, Liverpool One

JD Sports, Liverpool One

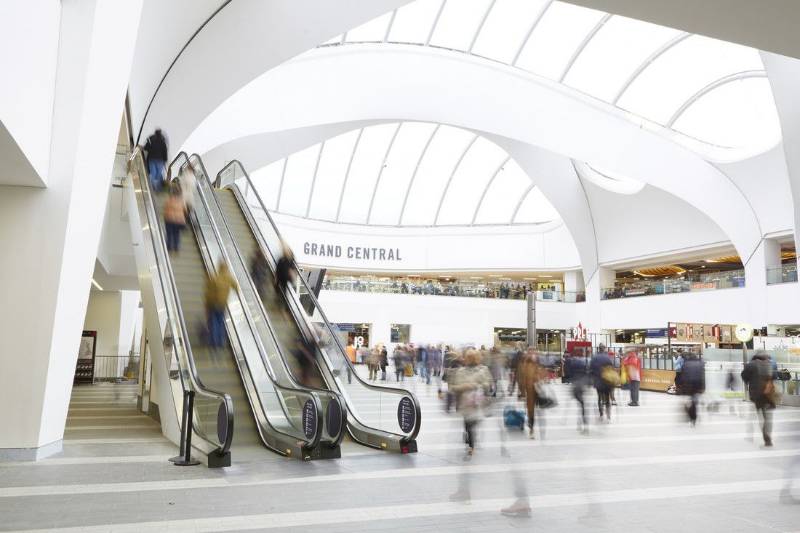

A £multi-million revamp at Birmingham New Street

A £multi-million revamp at Birmingham New Street

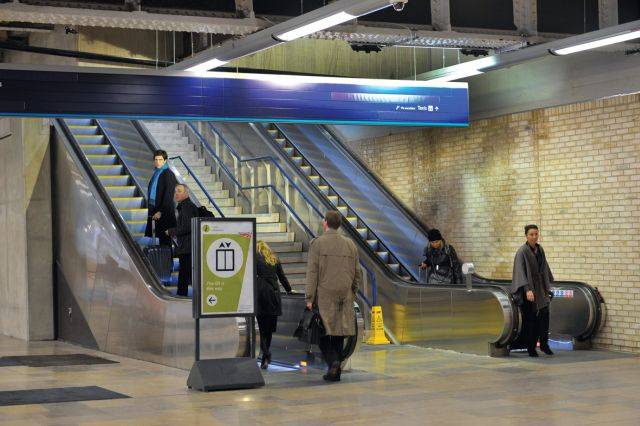

Stannah at Leeds Station Southern Entrance
