Stannah Levelmaster low rise platform goods lift

Verified by manufacturer 15 days ago

Stannah Lifts Third party certifications:
  • Health & Safety Accreditation

    Health & Safety Accreditation

    Certificate type

  • CHAS

    CHAS

    Certificate type

  • ISO 14001 Environmental Management Systems

    Certificate type

  • ISO 45001 Health and Safety Management

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

Low rise goods only platform lift with a carrying capacity of up to 2000 kg. Supplied in its own self-supporting structure suitable for both internal and external applications.

Jump to:
+44 (0)1264 343777 Website

Application

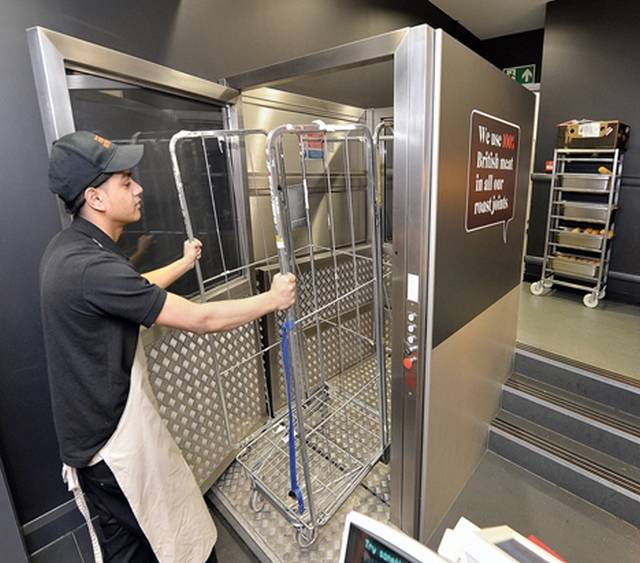

Suitable for both internal and external applications with a travel of up to 1500 mm where trolleys and roll cages need to be moved over a small change in level.

Description

A low rise goods lift, with low pit requirement, offers a cost-effective, simple solution with a wide range of platform sizes.


Features and benefits:

  • Flexible platform sizes individually designed to suit building space restrictions.
  • Vertical lifting platform with aluminium chequer plate floor and half height sides.
  • Choice of entrance configurations – through or adjacent.
  • Low pit requirements (from 90 mm).
  • Self-supporting enclosed structure.
  • Constant-pressure call and send buttons on landing entrances, no controls on platform.
  • Hardwearing finishes for excellent durability.
  • Sheet steel structure panels with glazed or stainless steel available as an option.
  • Electrical and mechanical interlocked hinged landing doors at both levels.
  • Full height door at lower level and half height door at upper level.
  • Minimal builders work requirements.
  • CE marked and complies with BS EN 1570-1.


Consult manufacturer's literature for further specification options.

General information

Color

Grey

Guidance for specification option:

Powder coated grey, RAL 7023.

Silver

Guidance for specification option:

Stainless steel.

Other

Guidance for specification option:

Other RAL colours available on request.

Finish

Powder-coated

Material

Steel

Guidance for specification option:

Stainless steel.

Length

Bespoke

Guidance for specification option:

Variable to suit individual requirements, contact manufacturer for details.

Width

Bespoke

Guidance for specification option:

Variable to suit individual requirements, contact manufacturer for details.

Height

Bespoke

Guidance for specification option:

Variable to suit individual requirements, contact manufacturer for details.

Warranty description

One year

Uniclass

Ss_80_50_01_39 Hydraulic accessible goods-only lift (AGOL) systemsPrimary

CAWS

X12/355 Step lifts

X12/355 Step lifts

Product range

Service & Goods lifts

Specification data - Hydraulic accessible goods-only lift (AGOL) systems

Lift type

Adjacent.

Through.

Door configuration

Automatic steel gate leaves.

Guidance for specification option:

Stainless steel or powder-coated, insert requirement.

Varying infill materials available - sheet steel, stainless steel, and glass.

Drive type

Hydraulic drive system.

Guidance for specification option:

With flexible location of motor and controller cabinet.

Height

1500 mm.

Manufacturer guidance

Travel (maximum).

Size:

90 mm.

Manufacturer guidance

Pit.

Enclosure material

Steel.

Finish

Stainless steel.

Powder-coated.

Manufacturer guidance

Enclosure finish.

Colour

Stainless steel.

RAL 7023 grey.

Guidance for specification option:

Powder coated.

Other.

Guidance for specification option:

Other RAL colours available on request.

Manufacturer guidance

Enclosure colour.

Material

Sheet steel structure panels with aluminium chequer plate half height sides.

Glazed structure infill panels with aluminium chequer plate half height sides.

Manufacturer guidance

Infill material.

Colour/ Finish

RAL 7023 grey.

Other.

Guidance for specification option:

Other RAL colours available on request.

Manufacturer guidance

Infill colour/ finish.

Accessories

None.

Glass infill for landing gates.

Glazed structure infill panels.

Key switch to isolate the lift and prevent unauthorised use.

Stainless steel structure and infill panels.

Speed

0.05 m/s.

Standard

To BS EN 1570-1.

Rated load

2000 kg (maximum).

Electrical supply

415 V, 50 Hz, three phase and earth.

Control

Push button.

Guidance for specification option:

Constant-pressure call and send buttons on landing entrances, no controls on platform.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

Steel, glass and aluminium can be recycled.
