Stannah Microlift 50kg & 100kg dumbwaiter service lift

Verified by manufacturer 15 days ago

Stannah Lifts Third party certifications:
  • Health & Safety Accreditation

    Health & Safety Accreditation

    Certificate type

  • CHAS

    CHAS

    Certificate type

  • ISO 14001 Environmental Management Systems

    Certificate type

  • ISO 45001 Health and Safety Management

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

Service lift suitable for loads up to 100 kg over a total distance of 30 m.

Jump to:
+44 (0)1264 343777 Website

Application

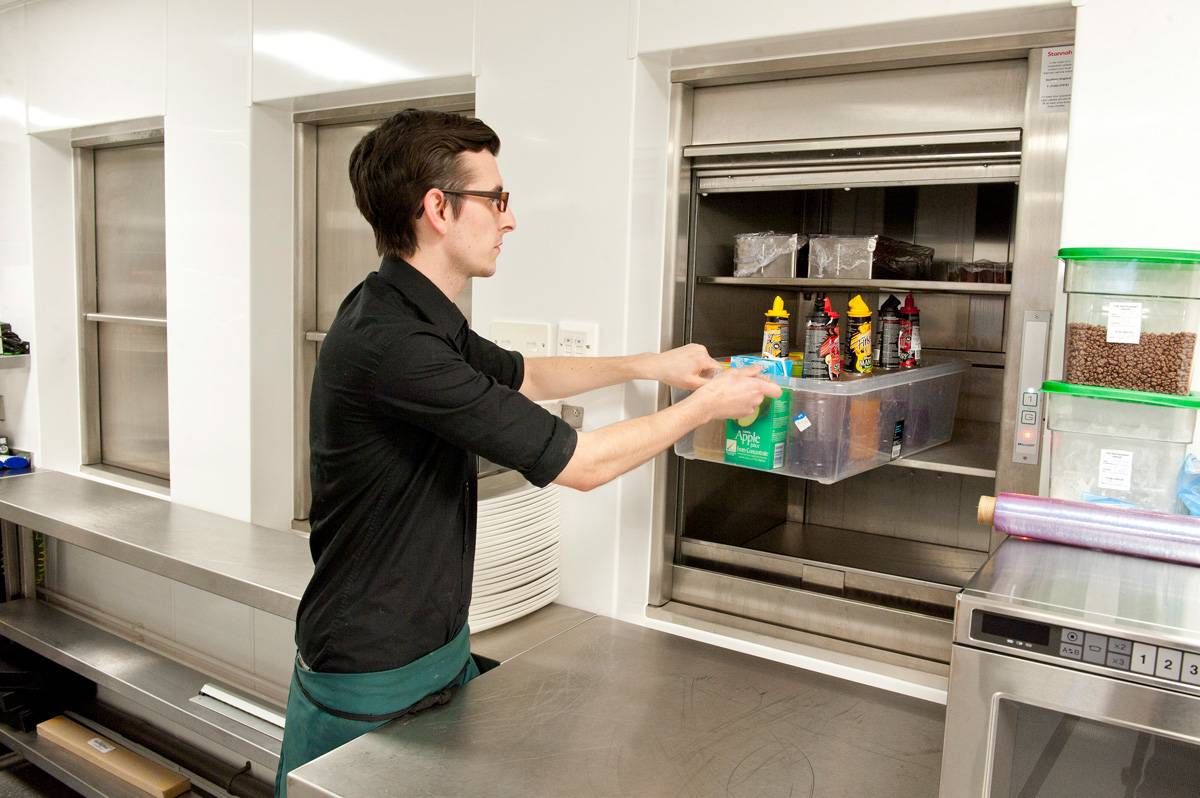

Suitable for many settings where loads of up to 100 kg need transporting between floors, such as catering premises, pubs and restaurants, offices and private homes.

Description

The Stannah Microlift dumbwaiter is a small-load service lift that uses a galvanized steel structure supporting frame erected quickly with minimal building works on site and no load-bearing shaft.


A counterbalance VVVF drive system makes the Microlift more energy-efficient without a power reduction. The lift features safety locks on the doors, and the car can be fitted with adjustable or fixed and heated shelving if desired.


The dumbwaiter is available in four versions:

  1. standard range - the popular choice for waist-height loading
  2. double-decker - two separate lift cars working in tandem within the same shaft
  3. floor-level loading - service lift with floor level access
  4. bottom drive - a base-mounted motor for low-headroom


Features and benefits:

  • 50 and 100 kg models
  • Up to 12 floors and 30 m travel distance
  • Single, through or adjacent entrances

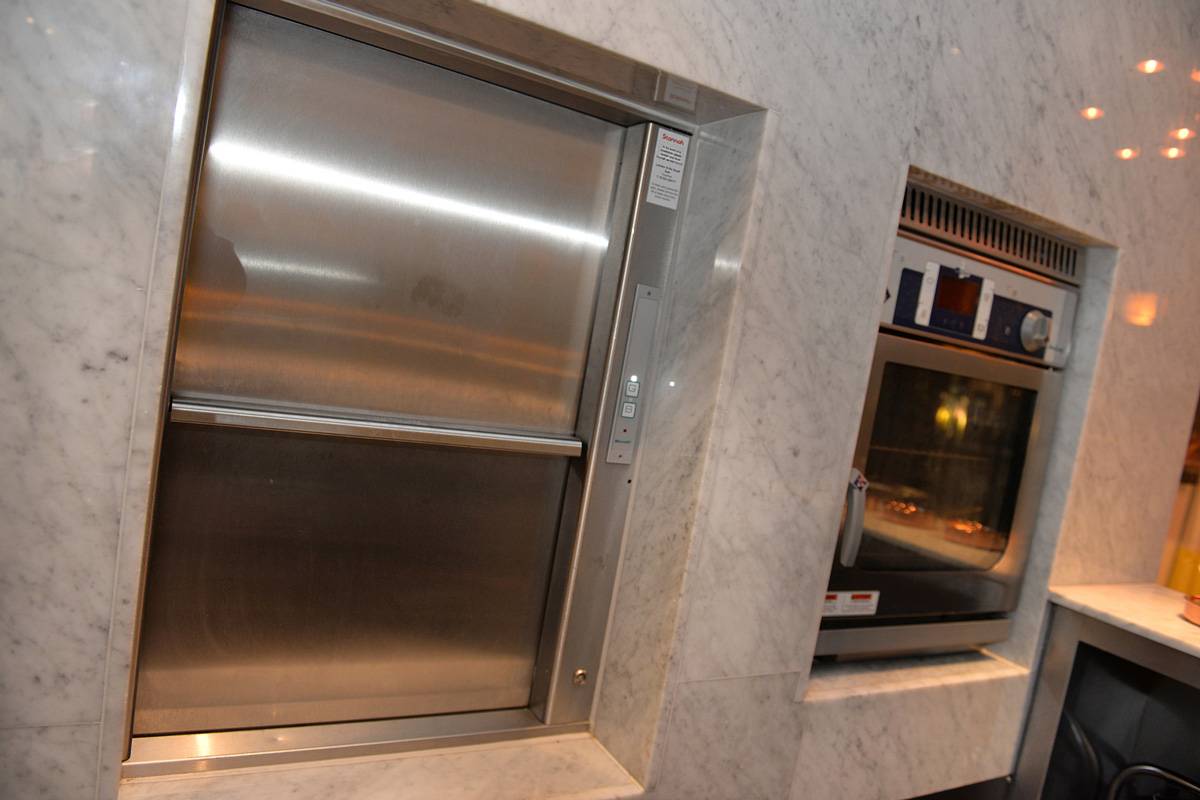

  • ‘Rise and fall’ shutters or hinged doors
  • Doors at serving, counter or floor height
  • Adjustable and heated shelving options
  • Drive system: Motor winding unit with counterbalance drive
  • Landing control: Automatic call /send at each entrance
  • Three-phase or single-phase supply


Approvals:

  • European machine directive 2006/42/EC and BS EN 81-3 where applicable.

General information

Color

Grey

Guidance for specification option:

Grey baked enamel (RAL 7038). Standard.

Silver

Guidance for specification option:

Stainless steel.

Other

Finish

Galvanized

Material

Steel

Guidance for specification option:

Galvanized and stainless steel.

Manufacturer guidance

Steel

Shape

Square

Rectangle

Length

320 mm

420 mm

520 mm

620 mm

720 mm

Show more

Manufacturer guidance

Car dimensions quoted, please refer to manufacturers guidance for shaft dimensions and exact configurations.

Width

510 mm

520 mm

545 mm

620 mm

720 mm

Show more

Manufacturer guidance

Car dimensions quoted, please refer to manufacturers guidance for shaft dimensions and exact configurations.

Height

800 mm

975 mm

1000 mm

1175 mm

1200 mm

Manufacturer guidance

Car dimensions quoted, please refer to manufacturers guidance for shaft dimensions and exact configurations.

Warranty description

One year

Uniclass

Ss_80_50_01_26 Electric service lift systemsPrimary

CAWS

X12/110 Vertical lifting platform systems

X12/110 Vertical lifting platform systems

Product range

Service & Goods lifts

Specification data - Electric service lift systems

System performance

Design of small-load service lift.

Lift type

Standard.

Guidance for specification option:

Standard for waist-height loading.

Double-decker.

Guidance for specification option:

Two lift cars in one structure; eliminates cross-contamination.

Floor-level loading.

Guidance for specification option:

Floor-level service for small trolleys.

Low headroom/ bottom drive.

Guidance for specification option:

For low headroom applications.

Door configuration

Single entrance.

Through entrance.

Adjacent entrance.

Manufacturer guidance

Insert requirement.


Number of doors (maximum): Up to three sides on most models except double-decker which is only available with up to two sides open (not only through car) configuration. Consult with manufacturer for details.

Drive position

Top drive.

Bottom drive.

Guidance for specification option:

Model-dependent, consult manufacturer for details.

Lift shaft and machine room cabling and containment

-

Containment

Galvanized frame with motor, and cabling included within structure.

Height

775 mm.

800 mm.

975 mm.

1000 mm.

1175 mm.

Show more

Manufacturer guidance

Car Interior Height.

Model-dependent, consult manufacturer for details.

Rated load

50 kg.

100 kg.

Manufacturer guidance

Car interior rated load.

Finish

Grey baked enamel (RAL 7038).

Guidance for specification option:

Standard.

Stainless steel.

Custom.

Guidance for specification option:

Other RALs and steel colours available, consult manufacturer for details.

Manufacturer guidance

Car interior finish.

Shelving

Manufacturer's standard - one shelf.

Additional shelving - Fixed.

Guidance for specification option:

Insert number of shelves required.

Additional shelving - Adjustable.

Guidance for specification option:

Insert number of shelves required.

Additional shelving - Fixed heated shelf.

Manufacturer guidance

Car interior shelving.

Type

Collapsible gates.

Guidance for specification option:

Floor level installation only.

Hinged doors.

Rise and fall shutters.

Manufacturer guidance

Door type.

Finish

Grey baked enamel (RAL 7038).

Guidance for specification option:

Standard.

Stainless steel.

Custom.

Guidance for specification option:

Other RALs and steel colours available, consult manufacturer for details.

Manufacturer guidance

Door finish.

Power

Single-phase, 240 V.

Three-phase, 415 V.

Accessories

Not required.

Heated car.

Heated shelves.

Intercom.

Load weighing.

Show more

Speed

0.35 m/s.

Guidance for specification option:

Maximum.

Manufacturer guidance

Rated speed.

Supply

48 V.

Manufacturer guidance

Control supply.

Current

50 Hz, 16 A isolator.

Landing doors

Up to two hour fire rated with electro-mechanical locking.

Standard

To BS EN 81-3.

Pit depth

Not required.

350–400 mm.

Guidance for specification option:

Required for some models; consult manufacturer for details.

Size:

Not required.

350 mm.

Guidance for specification option:

Where required maximum.

Manufacturer guidance

Pit.

Controls

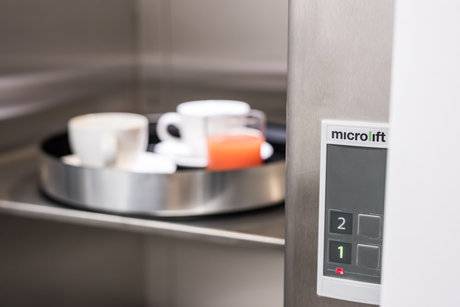

Fully automatic push button control with call and despatch facilities at each landing entrance with 'Lift arrival', 'lift occupied' and 'lift position' indicators and audible arrival buzzers on each floor.

Drive space

With machine room.

Traction drive

Geared (worm above).

Guidance for specification option:

Mounted at the top of the lift structure, the smooth, quiet motor drives a high-quality reduction gearbox fitted with a traction vee-sheave.


An electro-magnetic disc brake is supplied with emergency release mechanism. Mounted at the top of the lift structure, the smooth, quiet motor drives a high quality reduction gearbox fitted with a traction vee-sheave. An electro-magnetic disc brake is supplied with emergency release mechanism.

Control of lift drive

The reliable controller and counter-balance drive system ensure electrical consumption is minimal. An electromagnetic disc brake is supplied with an emergency release mechanism.

Sustainability data

Contains Red List materials

No

Country of material origin

Italy

Country of product manufacture

Italy

Recyclability

Steel can be recycled
