Stannah Midilift PL vertical platform lift - Vertical Lift
Verified by manufacturer 24 days ago
Aluminium structure, 1125 x 1425 mm platform
Aluminium structure, 1125 x 1425 mm platform
Health & Safety Accreditation
Certificate type
CHAS
Certificate type
ISO 45001 Health and Safety Management
Certificate type
ISO 9001 Quality Management
Certificate type

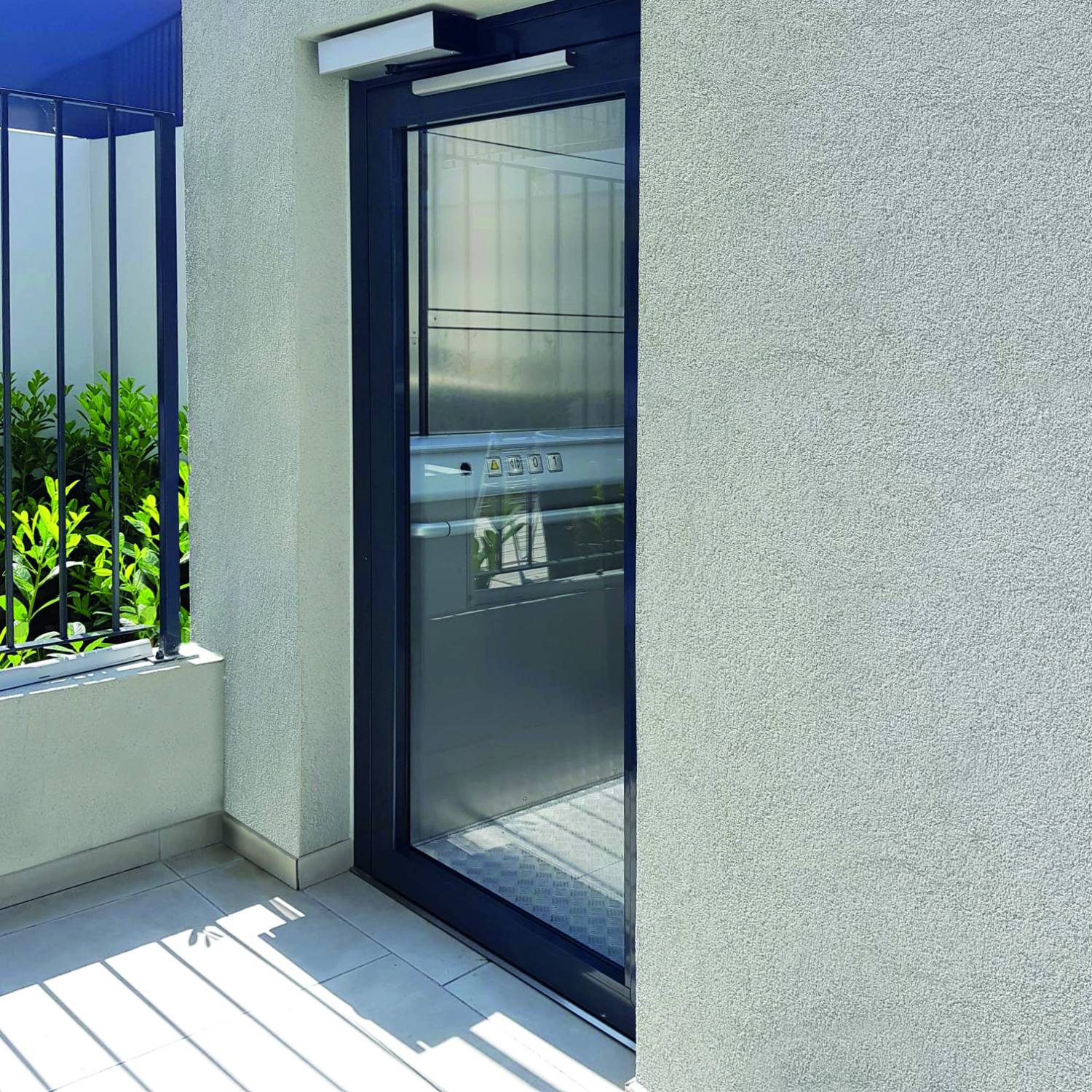

Vertical platform lift for indoor and outdoor use.
Application
Suitable for private residences, hotels, schools, offices and shops.
Description
Vertical platform lift for accessibility in a limited space. Powered by an electrical screw-driven system - our quietest solution yet at just 48 dB, the same volume as a modern refrigerator.
Features and benefits:
- Accessible for those with impaired mobility.
- Compact and ultra-light.
- Constant pressure controls on platform & automatic landing controls
- Inverter provides smooth lift start and stop.
- LED energy-efficient ceiling.
- No external cabinet or machine room.
- Helps to meet the requirements of Part M in England and Wales and Section 4.2 in Scotland .
- 2-year warranty covers four service visits per year.
General information
Color | Beige Grey Bronze Black Ivory Manufacturer guidanceAny RAL colour. |
Finish | Anodized Anti-slip Powder-coated Painted |
Material | Aluminium Glass Granite Rubber Stainless steel |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Two year |
Uniclass | |
CAWS | X12/110 Vertical lifting platform systems X12/350 Platform lifts X12/110 Vertical lifting platform systems X12/350 Platform lifts |
Product range |
Specification data - Vertical lifting platforms
Standard | To BS EN 81-41. |
Rated load (minimum) | 340 kg.400 kg. |
Drive type | Screw and nut.Guidance for specification option: Electrical, no machine room. Equipped with an inverter for a smooth start and stop. |
Carriage type | Standard.Guidance for specification option: Moving platform, standard console with aluminium profile and LED strip. Consult manufacturer for further details. Deluxe.Guidance for specification option: Moving platform, deluxe console with aluminium profile and abstract lines. Consult manufacturer for further details. |
Carrier | |
Frame material | Aluminium.Guidance for specification option: Indoor only as standard. |
Frame finish | Anodized.Guidance for specification option: As standard. Painted.Guidance for specification option: Insert colour requirements. |
Frame colour | Not applicable.Guidance for specification option: Standard - unpainted finish (anodized or stainless steel as applicable). Pure White RAL 9010.Guidance for specification option: Painted, crinkled finish. Traffic White RAL 9016.Guidance for specification option: Painted, crinkled finish. Oyster White RAL 1013.Guidance for specification option: Painted, crinkled finish. Sand Desert Rose.Guidance for specification option: Painted, crinkled finish. Light Grey RAL 7035.Guidance for specification option: Painted, crinkled finish. Silver Grey RAL 7001.Guidance for specification option: Painted, crinkled finish. White Aluminium RAL 9006.Guidance for specification option: Painted, crinkled finish. Grey Aluminium RAL 9007.Guidance for specification option: Painted, crinkled finish. Grey Mica RAL Grey Mica.Guidance for specification option: Painted, crinkled finish. Rame - Blasted Copper.Guidance for specification option: Painted, crinkled finish. Corten - Antique Rust.Guidance for specification option: Painted, crinkled finish. Grey Brown RAL 8019.Guidance for specification option: Painted, crinkled finish. Anthracite Grey RAL 7016.Guidance for specification option: Painted, crinkled finish. Jet Black RAL 9005.Guidance for specification option: Painted, crinkled finish. Metallised Bronze – Y540NE3.Guidance for specification option: Painted, smooth finish. Metallised Gold – K500Y08.Guidance for specification option: Painted, smooth finish. RAL.Guidance for specification option: Painted, crinkled finish. Insert colour requirements from the complete RAL range. Manufacturer guidanceIn fire-rated structures the frame is clad; consult manufacturer for details. |
Doors | |
Arrangement | Single.Through.Adjacent.Three sides. |
Type | Full height automatic hinged swing door.Full height manual hinged swing door.Guidance for specification option: Panoramic as standard. Half height automatic swing gate.Half height manual swing gate.Guidance for specification option: As standard. |
Clear opening width (minimum) | 950 mm.Guidance for specification option: As standard. |
Frame material | Aluminium. |
Frame finish | Anodized.Guidance for specification option: As standard. Painted. |
Frame colour | To match carrier frame.Not applicable.Guidance for specification option: Standard - unpainted finish (anodized or stainless steel as applicable). Pure White RAL 9010.Guidance for specification option: Painted, crinkle finish. Metal infills only. Traffic White RAL 9016.Guidance for specification option: Painted, crinkle finish. Metal infills only. Oyster White RAL 1013.Guidance for specification option: Painted, crinkle finish. Metal infills only. Sand Desert Rose.Guidance for specification option: Painted, crinkle finish. Metal infills only. Light Grey RAL 7035.Guidance for specification option: Painted, crinkle finish. Metal infills only. Silver Grey RAL 7001.Guidance for specification option: Painted, crinkle finish. Metal infills only. Standard for fire-rated doors. White Aluminium RAL 9006.Guidance for specification option: Painted, crinkle finish. Metal infills only. Grey Aluminium RAL 9007.Guidance for specification option: Painted, crinkle finish. Metal infills only. Grey Mica.Guidance for specification option: Painted, crinkle finish. Metal infills only. Rame - Blasted Copper.Guidance for specification option: Painted, crinkle finish. Metal infills only. Corten - Antique Rust.Guidance for specification option: Painted, crinkle finish. Metal infills only. Grey Brown RAL 8019.Guidance for specification option: Painted, crinkle finish. Metal infills only. Anthracite Grey RAL 7016.Guidance for specification option: Painted, crinkle finish. Metal infills only. Jet Black RAL 9005.Guidance for specification option: Painted, crinkle finish. Metal infills only. Metallised Bronze – Y540NE3.Guidance for specification option: Painted, smooth finish. Metal infills only. Metallised Gold – K500Y08.Guidance for specification option: Metal infills only. Painted, smooth finish. RAL.Guidance for specification option: Painted, crinkle finish. Metal infills only. Insert colour requirements from complete RAL range. |
Infill material | Aluminium.Guidance for specification option: Indoor only as standard. Glass. |
Infill finish | Anodized.Guidance for specification option: Indoor only as standard. Painted.Not applicable.Guidance for specification option: Glass. |
Infill colour | Not applicable.Guidance for specification option: Standard - unpainted finish, metal infills only (anodized or stainless steel as applicable). To match frame insert colour.Guidance for specification option: Metal infills only. Pure White RAL 9010.Guidance for specification option: Painted, crinkle finish. Metal infills only. Traffic White RAL 9016.Guidance for specification option: Painted, crinkle finish. Metal infills only. Oyster White RAL 1013.Guidance for specification option: Painted, crinkle finish. Metal infills only. Sand Desert Rose.Guidance for specification option: Painted, crinkle finish. Metal infills only. Light Grey RAL 7035.Guidance for specification option: Painted, crinkle finish. Metal infills only. Silver Grey RAL 7001.Guidance for specification option: Painted, crinkle finish. Metal infills only. Standard for fire-rated doors. White Aluminium RAL 9006.Guidance for specification option: Painted, crinkle finish. Metal infills only. Grey Aluminium RAL 9007.Guidance for specification option: Painted, crinkle finish. Metal infills only. Grey Mica.Guidance for specification option: Painted, crinkle finish. Metal infills only. Rame - Blasted Copper.Guidance for specification option: Painted, crinkle finish. Metal infills only. Corten - Antique Rust.Guidance for specification option: Painted, crinkle finish. Metal infills only. Grey Brown RAL 8019.Guidance for specification option: Painted, crinkle finish. Metal infills only. Anthracite Grey RAL 7016.Guidance for specification option: Painted, crinkle finish. Metal infills only. Jet Black RAL 9005.Guidance for specification option: Painted, crinkle finish. Metal infills only. Metallised Bronze – Y540NE3.Guidance for specification option: Smooth finish. Painted, metal infills only. Metallised Gold – K500Y08.Guidance for specification option: Smooth finish. Painted, metal infills only. RAL.Guidance for specification option: Painted, metal infills only; insert colour requirements from full RAL range. Natural (glass).Guidance for specification option: Glass infills only. Acid Etched (glass).Guidance for specification option: Glass infills only. Natural Milky White (glass).Guidance for specification option: Glass infills only. Smoke Grey (glass).Guidance for specification option: Glass infills only. Smoke Bronze (glass).Guidance for specification option: Glass infills only. Bronze Stopsol (glass).Guidance for specification option: Glass infills only. |
Carrier floor | |
Dimensions | |
Width (minimum) | 1125 mm.Guidance for specification option: Insert carrier standard sizes, consult manufacturer for information. |
Depth (minimum) | 1425 mm.Guidance for specification option: Insert carrier standard sizes, consult manufacturer for information. |
Material | As colour. |
Colour | Rubber Light Grey Circles G804.Guidance for specification option: As standard. Rubber Black Circles N004.Rubber Aluminium Effect 13712.Rubber Chrome Effect 13772.Rubber Charcoal Slate Effect 42292.Aluminium 5 Bar Chequer Plate.Guidance for specification option: Outdoor as standard. Granite Polar Ice 607.Granite White 431.Granite Dove Grey 646.Granite Black Diamond 646.Granite Copper Black 663. |
Electrical supply | 230 V, 50/ 60 Hz single-phase supply 2.2 kW rated power, 8.5 A rated running current. |
Control device type | Large, square illuminating Braille and tactile push buttons.Round, illuminating, Braille and blue backlighting.Guidance for specification option: As standard. Keyswitch control.Card reader. |
Control features | Audible and visual overload device with acoustic alarm, emergency stop button and emergency lowering device. |
Accessories | Canopy roof over door.Guidance for specification option: Outdoor only. Pitched roof with optional fan.Guidance for specification option: Outdoor only. Ramp. |
Third party certification: | UKCA mark, 2006/42/EC Machinery Directive. |
Aperture dimensions (w x d) | 1590 x 1545 mm. |
Headroom | 2150 mm (for half-height gate). 2200 mm (for 2 metre full-height door). |
Pit depth | 50 mm. Guidance for specification option: Standard. Not required. Guidance for specification option: Ramps require no pit depth (See also Accessories above). |
Height | Door: 2000 mm. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Italy |
Country of product manufacture | Italy |
Material | Aluminium Glass Granite Rubber Stainless steel |
Recyclability | Steel, Stainless Steel, Aluminium, Glass |
Third party certifications
Health & Safety Accreditation
Certificate of Health & Safety Accreditation
CHAS
CHAS – Contractors Health and Safety Assessment Scheme SSIP
ISO 45001 Health and Safety Management
ISO 45001 Health and Safety Management
ISO 9001 Quality Management
ISO 9001 Quality Management
