Steel Fire Rated - Doors

Verified by manufacturer 1 month ago

Lusso FUEGO Light Non-Rebated Glazed Door – Ei30

Lusso Systems Ltd Variant:

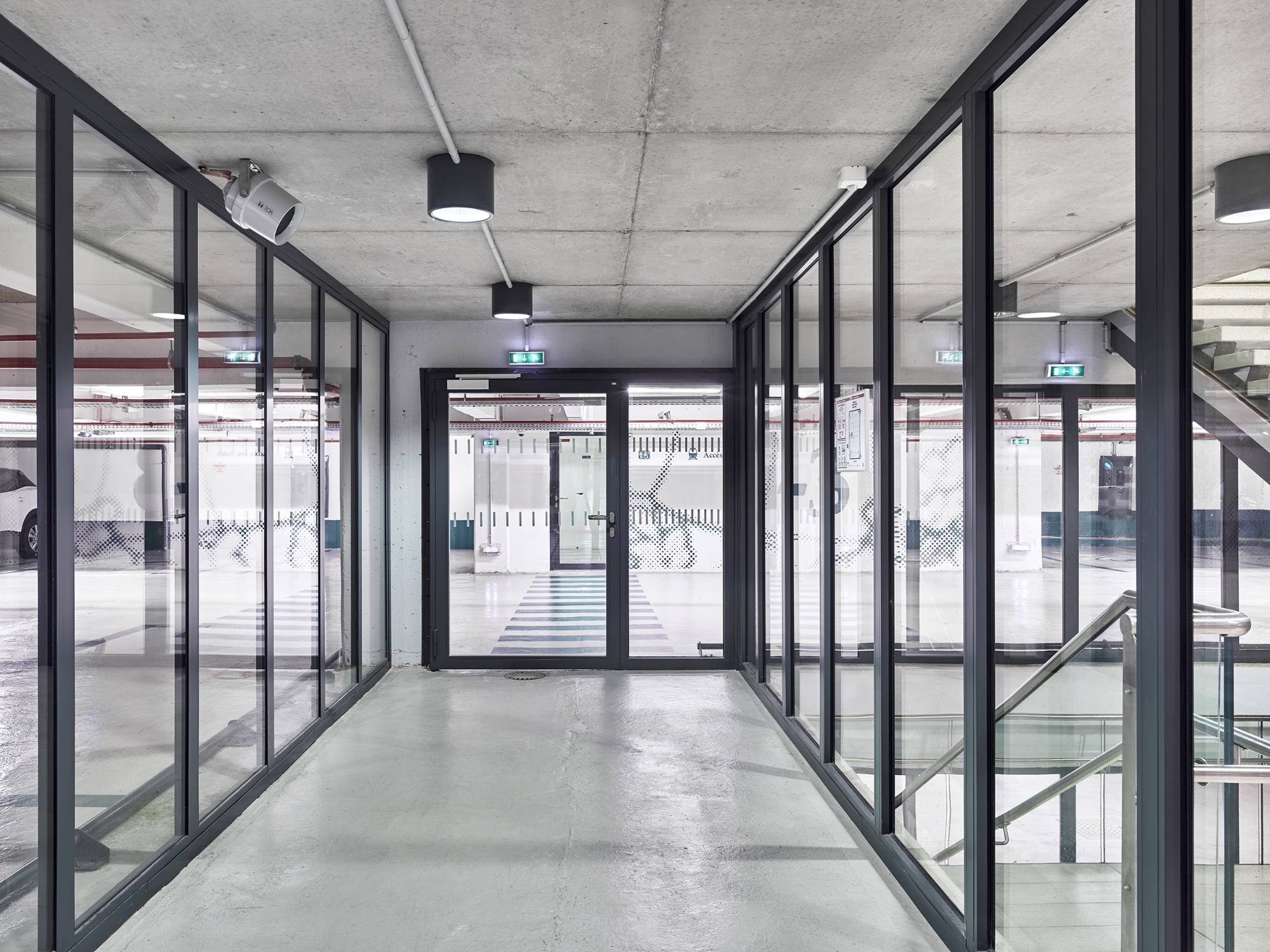

A range of glazed fire-resistant doors providing 30, 60 or 90 minutes fire protection along with smoke control.

Jump to:
BOS
01275 372293 Website

Application

For use in a range of applications and sectors. These include commercial, education, healthcare, leisure, automotive, retail and technology.

Description

A range of glazed fire-resistant doors providing 30, 60 or 90 minutes fire protection along with smoke control. Fully tested and approved, extensive profile system with fittings and accessories for single and double leaf glazed fire-resistant doors. The system has slender visible profile widths, an overall filigree appearance and great transparency.


Both rebated and non-rebated doors are available. The Lusso Fuego light NR door range offers non-rebated, non-latched doors in a variety of configurations both in steel and stainless steel.


Features and benefits:

  • Minimalistic powder-coated steel framework, in a variety of RAL colours and finishes.
  • Aesthetically pleasing sightlines.
  • Incorporation of sidelights and fanlights.
  • Slender appearance.
  • Ease of use for either leaf operation.
  • Very slender visible section widths, outer frame/leaf measurement of only 110 mm.
  • Fittings to match the system and concealed hinges.
  • Stainless steel handle fittings and a wide range of standard weld-on and screw-mounted rolling hinges.
  • Concealed invisible door-closing systems.
  • Prefabricated profiles for efficient processing, including assembly of the concealed door-closers.


Please note that acoustic, fire rated and structural certification and support for Lusso products and systems is available on a project-specific basis. Please contact Lusso's specification team directly for further information.

General information

Color

Other

Guidance for specification option:

RAL polyester powder-coated.

Finish

Powder-coated

Material

Steel

Stainless steel

Glass

Shape

Other

Manufacturer guidance

To suit project requirements, consult manufacturer for further details.

Length

Bespoke

Guidance for specification option:

Please consult manufacturer for further details.

Width

Bespoke

Guidance for specification option:

Please consult manufacturer for further details.

Height

Bespoke

Guidance for specification option:

Please consult manufacturer for further details.

Warranty description

-

Manufacturer guidance

Based on a job specific basis, please contact Lusso for further information.

Uniclass

Pr_30_59_24_52 Carbon steel doorsetsPrimary

CAWS

L20/55 Doorsets

L20/480 Doorsets

Specification data - Carbon steel doorsets

Third-party certification

Constructionline-Gold; Builders Profile; CHAS; FIRAS; SMAS; Acclaim (SIPP).

Configuration

Single-leaf.

Leaf and part-leaf.

Double-leaf.

Doorset size

-

Manufacturer guidance

Maximum single leaf size: 1180 mm wide x 2450 mm high.

Insert requirements or refer to a drawing.

Performance

-

Fire resistance

-

Integrity

30 minutes.

Insulation

30 minutes.

Smoke leakage

Yes.

Acoustic performance

Up to 30 dB sound attenuation.

Frame

-

Material

Thermally broken mild steel sections.

Thermally broken stainless steel sections.

Threshold

Barrier free.

Perimeter seals or inserts

As standard.

Finish

-

Coating

Powder-coated.

Colour

-

Manufacturer guidance

Insert requirements.

Installation fasteners

To manufacturer’s specifications.

Door leaf

-

Thickness

65 mm.

Material

Steel.

Stainless steel.

Glazing

-

Type

-

Manufacturer guidance

Consult manufacturer for details.

Manifestation

2 rows of 50 mm opal frost dots.

2 rows of 50 mm opal frost squares.

Privacy mirror film.

Client specific custom designs.

Guidance for specification option:

Insert requirements.

To suit architects’ choice and in accordance with Approved Document K.

Finish

-

Coating

Powder-coated.

External colour

-

Manufacturer guidance

Insert requirements.

Internal colour

-

Manufacturer guidance

Insert requirements.

Hardware

Lever handles.

Pull handles.

Door closers.

Access control.

Door automation.

Other.

Guidance for specification option:

Insert requirement for specified ironmongery options. Consult manufacturer for details.

StrengthGrade

All glass used satisfies the requirement of Class 3 BS EN 12600 or Class C of BS 6206.

Samples required

-

Manufacturer guidance

Available from manufacturer on request.

Sustainability data

Contains Red List materials

No

Country of material origin

Europe

Country of product manufacture

Europe

Recyclability

100% (Steel and glass)

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

17 %
