Steel Gratings - Heel-Proof Flooring - Open floor small mesh pedestrian walkway

Verified by manufacturer 20 days ago

EF – 11 x 76

Lang+Fulton Variant:

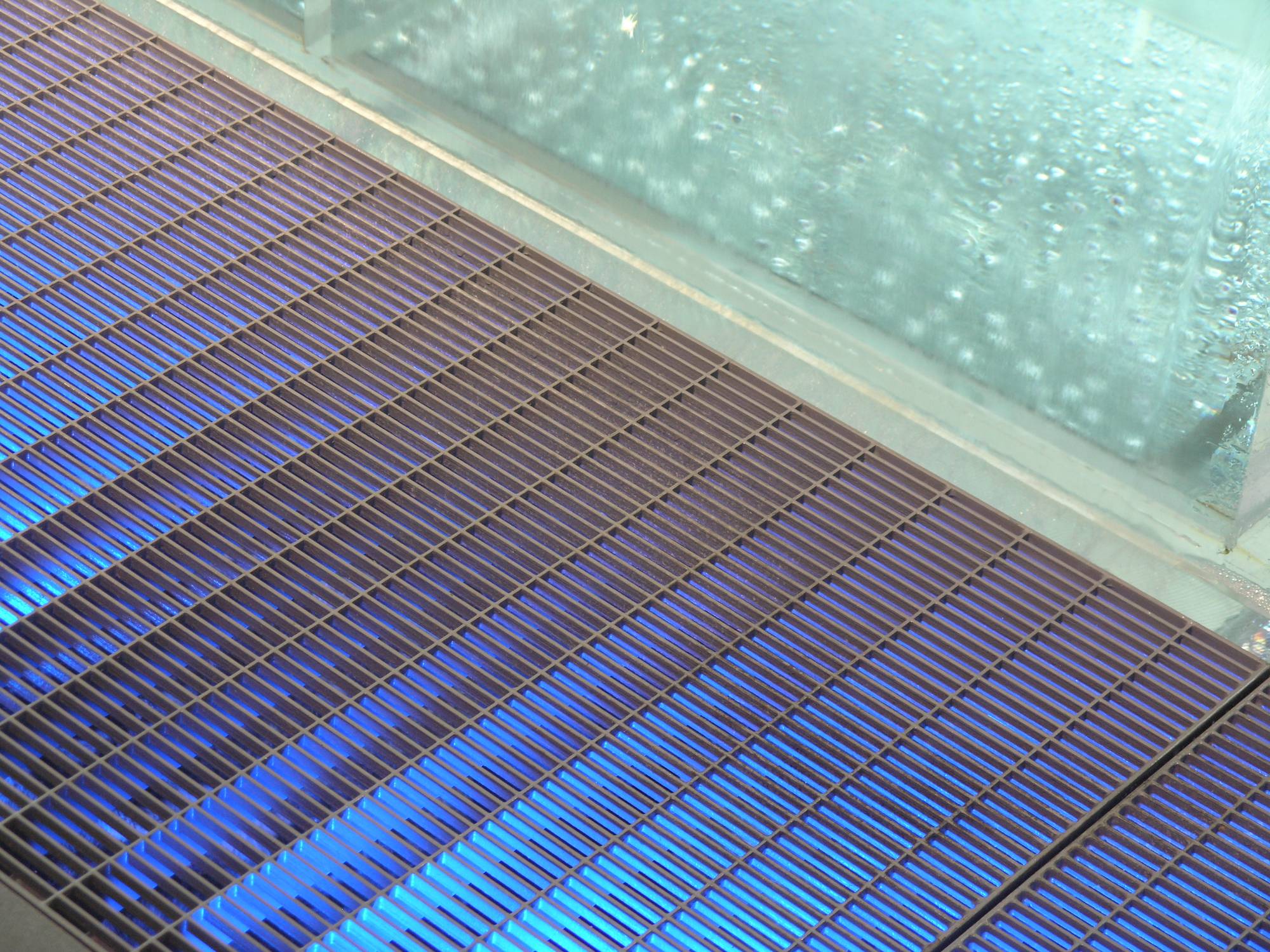

Steel gratings – heel-proof open mesh flooring for pedestrian areas.

Jump to:
+44 (0)131 441 1255 Website

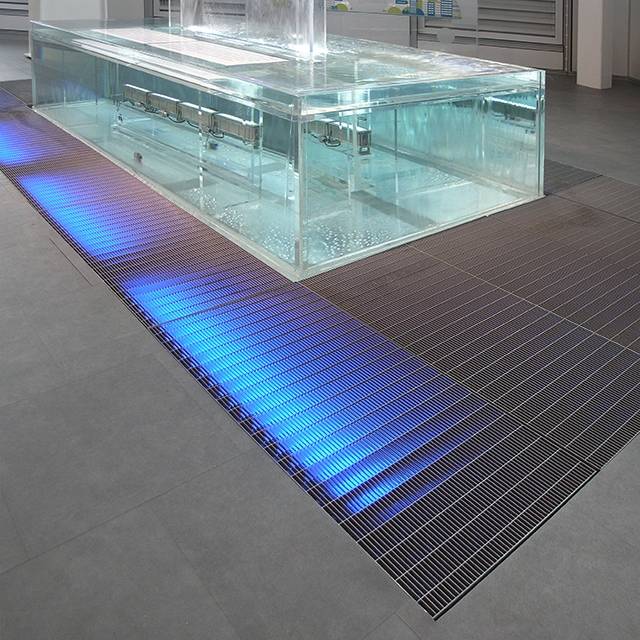

Application

  • Suitable for pedestrian areas.
  • Wide variety of applications such as walkways, balcony decking, ventilation grilles, service platforms, escape stairs and brise soleil.

Description

A comprehensive range of grating panels made with small heel-proof apertures, designed for pedestrian areas.


Features and benefits:

  • Framed panels are manufactured to custom-sizes for a wide variety of applications such as walkways, balcony decking, ventilation grilles, service platforms, escape stairs and brise soleil.
  • Floor treads and landings are made from all grating types.
  • Panels and support steelwork are supplied hot-dip galvanized, with an option for an additional polyester powder coating to any RAL colour.


Pressure locked gratings (Type-PL):

  • Pressed gratings which are manufactured exclusively from flat bars.
  • Available in the following apertures: 33 x 11 mm, 44 x 11 mm, 55 x 11 mm and 66 x 11 mm.
  • The bearing bar can vary from 25 x 2 mm to 150 x 4 mm and the transverse bar from 10 x 2 mm to 20 x 4 mm, to meet different loading/ span requirements.


Electrofused gratings (Type-EF):

  • Manufactured from flat bearing bars and round transverse bars.
  • Available in the following apertures: 11 x 76, 15 x 76, and 17 x 76 mm.
  • The bearing bar can vary from 20 x 2 to 40 x 3 mm and the transverse bar from 3-5 mm in diameter, for different loading/ span requirements.

General information

Color

Grey

Guidance for specification option:

Galvanized.

Other

Guidance for specification option:

Galvanized and polyester powder coated to any RAL.

Black

Blue

Bronze

Show more

Finish

Galvanized

Guidance for specification option:

Hot-dipped to BS EN ISO 1461.

Powder-coated

Guidance for specification option:

Hot-dip galvanized and polyester powder coated to BS EN ISO 1461 and BS EN 13438.

Material

Steel

Shape

Rectangle

Square

Other

Manufacturer guidance

To suit project requirements.

Length

Bespoke

Width

Bespoke

Height

Bespoke

Uniclass

Pr_25_96_30_31 Footway gratingsPrimary
Pr_25_30_30_18 Carbon steel open bar metal gratings

CAWS

L30/30 Proprietary stairs

L30/45 Ramps/ walkways

L30/20 Stairs

L10/670 Brises-soleil

L30/310 Proprietary stairs

Q10/312 Footway gratings

L30/470 Ramps

L30/460 Walkways

L30/250 Metal stairs

Product range

Flooring

Specification data - Footway gratings

Grating type

Electrofused gratings (Type-EF).

Material

Mild steel S235JR.

Loading grade

-

Manufacturer guidance

Contact manufacturer for more information.

Finish

Hot-dip galvanized.

Guidance for specification option:

Hot-dipped to BS EN ISO 1461.

Hot-dip galvanized and polyester powder coated, RAL.

Guidance for specification option:

Hot-dip galvanized and polyester powder coated to BS EN ISO 1461 and BS EN 13438, to any RAL or BS colour.

Colour

Natural.

Guidance for specification option:

Hot-dip galvanized only.

RAL.

Guidance for specification option:

Polyester powder-coated only; insert requirements.

Pattern

Flat bearing bars and round transverse bars, heel-proof.

Manufacturer guidance

Heel-proof floor gratings are designed with the transverse bar to the top.

Fixing type

Fixing clips.

Guidance for specification option:

Gratings are supplied with fixing clips to clamp the panel to the substructure.

Panel Type

EF – 11 x 76.

Bearing bar

From 20 x 2 mm to 40 x 3 mm.

Manufacturer guidance

To meet different loading/ span requirements.

Transverse bars

3—5 mm diameter.

Manufacturer guidance

To meet different loading/ span requirements.

Aperture

11 x 76 mm.

Type

Electrofused.

Sustainability data

Contains Red List materials

No

Country of material origin

Europe

Country of product manufacture

United Kingdom

Material

Steel

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

1.42 kg CO₂ eq/kg

Self declared

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

56 %
