Steelwork Ties

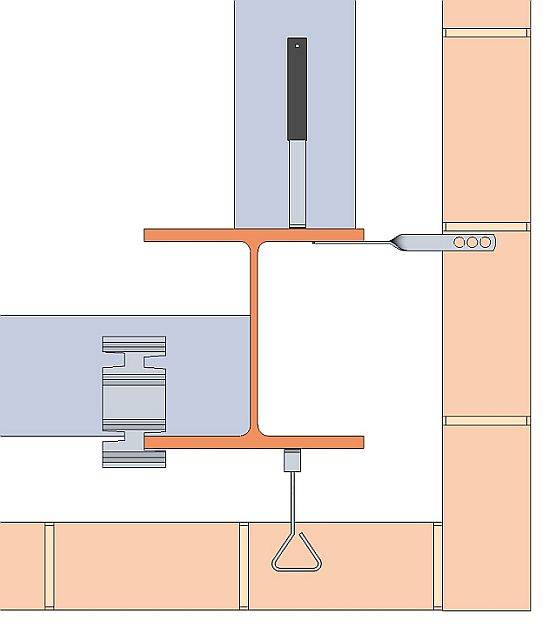

A variety of wall ties for used in steel frame buildings.

Features and benefits:

• Comes in variations, consult manufacturer for details.
• Suits any construction detail.
• Manufactured from stainless steel, grade 1.4301 (304).

Wincro WTS4H Half-twist Safe tie:

• Safe ended, half twist tie with 6 mm outer and a 7 mm central fixing hole.
• Fixes onto the vertical face of a column.
• Available in six lengths.

Wincro WTW2H Flexible clasp tie:

• Wire tie with welded vertical plate.
• Two 6 mm outer and a central 7 mm fixing hole.
• Available in three lengths.

Wincro WTW2U Flexible frame cramp:

• Frame cramp with flexible wire tie end.
• Two 6 mm outer and a central 7 mm fixing hole.
• Available in four projections.

Wincro WTUC Universal Column tie:

• Designed to fit onto a column flange with appropriate notch sizes and to provide an effective restraint between the inner and outer leaves of masonry cavity walls.
• Exceed the requirements for a type 2 tie to BS 5628-1.
• Available in two lengths of 152–205 mm.

Wincro WTS3UC offset angle tie:

• Provides a solution for tying offset masonry back to steelwork by the use of an offset angle section with welded tie at the required angle/ offset.
• Angle cleat features an 8 x 30 mm fixing slot as standard and the tie can be used with the WDS debonding sleeve where required.
• Sizes to suit each individual application.
