StoneMaster - Modular Concrete Paving Units
Verified by manufacturer 3 days ago
800 x 200 x 80 mm
800 x 200 x 80 mm
Certificate of Compliance
Certificate type
ISO 45001 Health and Safety Management
Certificate type
ISO 9001 Quality Management
Certificate type
Concrete paving.
Application

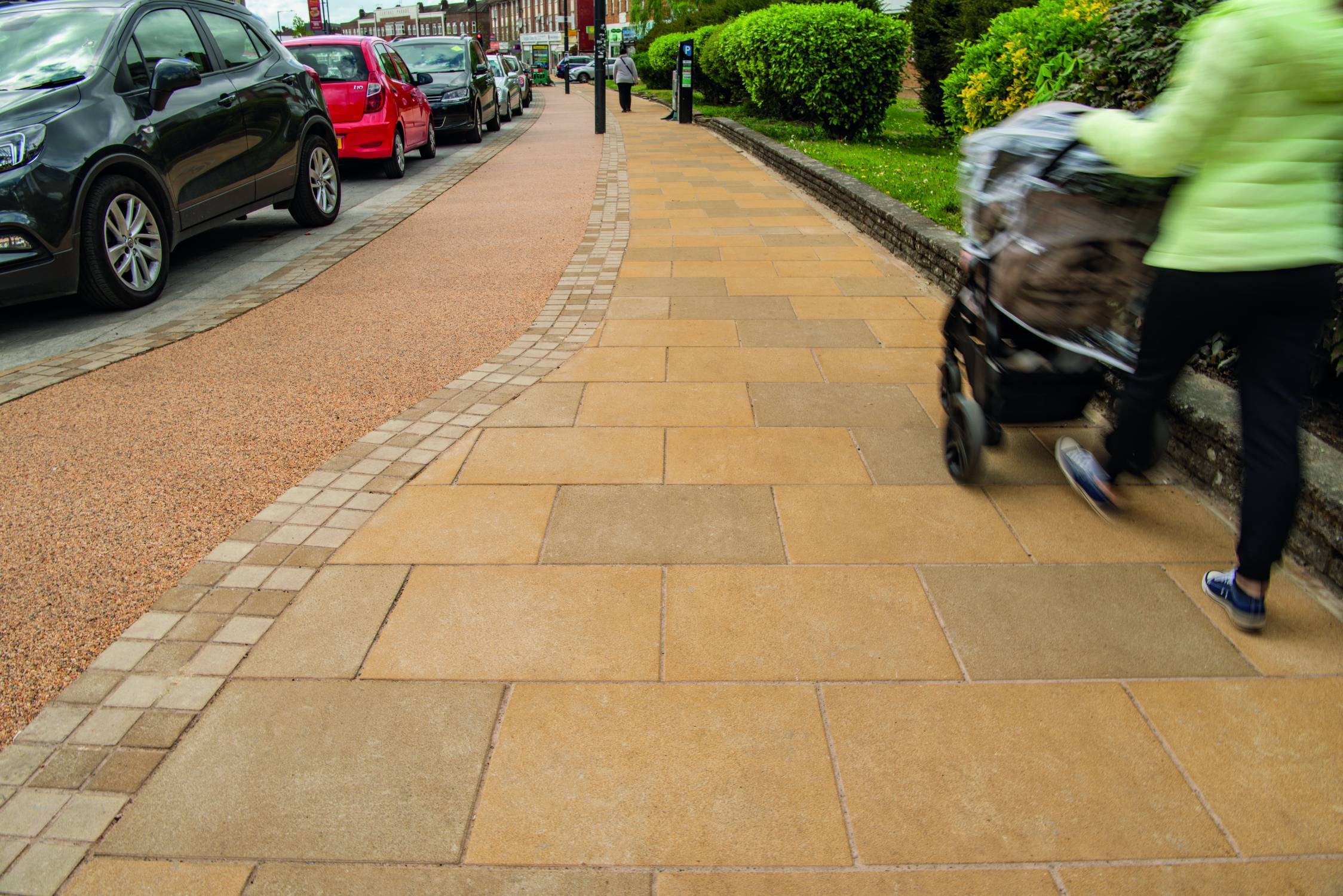

StonemasterⓇ is suitable for all types of applications where the aesthetic appeal is desirable whilst having the durability to cater for all types of traffic loadings.
Description
A unique range of paving that incorporates a wide range of colour blends to make any project harmonious to its environment. Stonemaster is manufactured from specialist selected aggregates using a semi-dry process, Protect+ and Aqua Etched.
Features and benefits:
- Includes Protect+ for superior cleaning and maintenance.
- Wide range of colours and sizes.
- Pencil edge for enhanced contemporary aesthetics.
- Semi-dry manufacturing process.
- Aqua Etched to achieve an unrivaled textured surface finish.
- Manufactured in the UK using specially selected aggregates.
BREEAM Rating: GENERIC GREEN GUIDE RATING*
- Concrete paving Flags (60 mm with a prepared recycled sub-base) A+ rated.
- Concrete paving flags (60 mm with a prepared sub-base) A rated. Concrete block pavers, CBP (80 mm) over prepared recycled sub-base A rated.
- Concrete block pavers, CBP (80 mm) over prepared sub-base B rated.
General information
Color | Cream Brown White Grey Pink |
Finish | Textured |
Material | Concrete |
Shape | Rectangle Square |
Length | 800 mm 600 mm 450 mm 300 mm 200 mm |
Width | 100 mm 200 mm 300 mm 450 mm |
Height | 80 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | Q24/113 Conventional concrete block paving overlay Q24/112 Conventional concrete block paving with bound base Q24/110 Conventional concrete block paving Q24/10 Conventional concrete block paving |
Specification data - Concrete paving blocks
Standard | To BS EN 1338. |
Physical properties | |
Colour | Cream.Sandy buff.Amber buff.Sienna buff.Chestnut.Oak.White.Guidance for specification option: Light reflectance value (LRV): 52.36. Light grey.Guidance for specification option: Light reflectance value (LRV): 26.8. Mid grey.Guidance for specification option: Light reflectance value (LRV): 24.8. Dark grey.Guidance for specification option: Light reflectance value (LRV): 44.08. Dark pink.Medium pink.Light pink. |
Finish | Aqua-etched textured granite aggregate. |
Profile | |
Paver type | Regular plan form. |
Arrises | Pencil. |
Dimensions and associated tolerances | |
Nominal sizes | 800 x 200 x 80 mm. |
Tolerances on diagonals | Class 2. |
Weathering resistance | Class 3. |
Abrasion resistance | Class 3. |
Slip resistance | USRV to BS EN 1338 of 45. |
Skid resistance | No requirement. |
Recycled content (minimum) | 20% to BS EN ISO 14021. |
Weight | 28.8 kg. |
Surface protection | Charcon Protect+. None. |
Reaction to fire | Class 1. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Concrete |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 29.5 kg CO₂ eq/m² Self declared |
Recyclability | 100%. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 21 % |
Third party certifications
Certificate of Compliance
ISO 44001 Health and Safety Management
ISO 45001 Health and Safety Management
ISO 45001 Health and Safety Management
ISO 9001 Quality Management
ISO 9001 Quality Management
Certificate of Compliance
PAS 2080:2023 - Carbon Management in Building and Infrastructure
Literature
Charcon Product Selector 2024
StoneMasterⓇ TDS
