Application

Suitable for outdoor areas, or areas prone to getting wet such as swimming pools and wash down areas.

Description

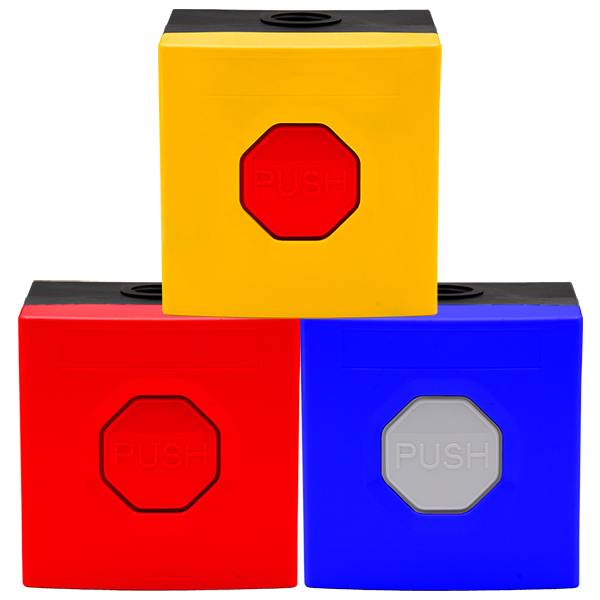

A range of low/high voltage waterproof push buttons.


Available in two models:

  • StopperPush – for applications where momentary push and release activation is desired.
  • StopperLatch – for applications where repeat activation must be controlled. Once the switch has been manually activated, it can only be reset by inserting a special key.


All models are available in a variety of colours with space for function marking and operating instructions. It is advisable to protect StopperSwitches with an STI Universal Stopper.


Features and benefits:

  • One year guarantee on electromechanical and electronic components.
  • Inset design on the Push Button helps prevent accidental activation.
  • The Waterproof Push Button series is tested to IP67.
  • Space available for function marking and operating instructions.
  • Surface mount only.

General information

Color

Material

Polycarbonate

Shape

Square

Width

89 mm

Height

90 mm

Warranty description

One year

Guidance for specification option:

One year guarantee on electromechanical and electronic components.

Uniclass

Pr_75_51_17_66 Push-button switchesPrimary

CAWS

W90/435 Deliberately operated devices

W90/435 Deliberately operated devices

Specification data - Push-button switches

Format

Push button.

Number of poles

2.

Guidance for specification option:

Available for Key-to-Reset and Momentary Models only. Can achieve Single Pole Changeover and Double Pole Changeover.

Operating method

Manual.

Features

Push and release (StopperPush).

Latch in actuating position (StopperLatch).

Guidance for specification option:

For applications where repeat activation must be controlled. Once the switch has been manually activated, it can only be reset by inserting a special key.

Enclosure

-

Material

Polycarbonate.

Ingress protection (minimum)

IP 67.

Operating voltage

Rated 1A (48 V d.c.), 6A (125–250 V a.c.).

Hand push button

Red.

Guidance for specification option:

Only available with yellow and white housings.

Green.

Guidance for specification option:

Only available with a white housing.

Yellow.

Guidance for specification option:

Only available with a yellow housing.

White.

Guidance for specification option:

Only available with green, blue or red housings.

Blue.

Guidance for specification option:

Only available with a white housing.

Show more

Housing colour

Label

'EMERGENCY'.

'ISOLATE'.

'EMERGENCY POWER OFF'.

'PANIC ALARM'.

'EMERGENCY STOP'.

Show more

Manufacturer guidance

Standard Function Marking Kit labels (black or white: depending on colour housing selected).

Cover

Not required.

Integral Cover.

Call Point Stopper.

Euro Stopper.

Universal Stopper.

Sustainability data

Country of product manufacture

United Kingdom

Material

Polycarbonate

Manufacturing plant location

Literature

STI StopperSwitches® Waterproof Push Buttons

STI StopperSwitches® Waterproof Push Buttons

STI EMEA Product Catalogue 0123

STI EMEA Product Catalogue 0123
