Strainer (Fig. 822, 922, 810 and 910)

Verified by manufacturer 2 months ago

DN50: Fig 822/ 922

Hattersley Variant:

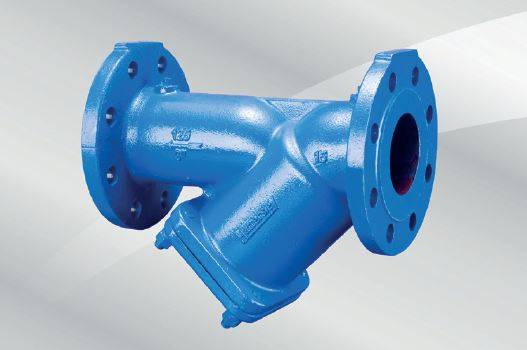

Cast iron and ductile iron, DN50 to DN300 (Fig 822 and Fig. 922) and DN350 to DN600 (Fig. 810 and fig. 910), Y-type strainers.

Jump to:
+44 (0)1473 277300 Website

Application

Suitable for system protection by trapping foreign matter.

Description

Cast iron and ductile iron, DN50 to DN300 (Fig 822 and Fig. 922) and DN350 to DN600 (Fig. 810 and fig. 910), Y-type strainers.


Features and benefits:

  • Helps to protect the system by trapping foreign matter.
  • Drain plug in cap as standard.
  • Stainless steel screen.
  • Test points can be fitted for system diagnostics.
  • ANSI versions are also available to Class 125 – Fig. 822ANSI, Fig. 922ANSI, Fig. 810ANSI and Fig. 910ANSI.
  • Fig. 910 and 922 supplied complete with two Fig. 631 test points.
  • Bolted cover.

General information

Color

Blue

Guidance for specification option:

Body and cover.

Material

Stainless steel

Guidance for specification option:

Screen.

Steel

Guidance for specification option:

Stud, nut and washer.

Cast iron

Guidance for specification option:

Body, cover and body plug.

Iron

Guidance for specification option:

Malleable iron drain plug and body plug.

Fibre

Guidance for specification option:

Gasket.

Show more

Uniclass

Pr_65_57_95_96 Water strainersPrimary

Specification data - Water strainers

Material

Body and cover: Ductile Iron BS EN 1563 EN-GJS-450-10, Screen: Stainless steel grade 304, Stud nut and washer: Steel, Drain and body plug: Malleable iron, Gasket: Fibre (Asbestos Free) Klingersil C4430.

Guidance for specification option:

DN50 to DN300.

Mesh size

Single screen, 1.5 mm mesh.

Connections

-

Type

Flanged to BS EN 1092-2, PN16.

Flanged to ANSI B16.1, Class 125.

Size

DN50.

Manufacturer guidance

Nominal diameter.

PressureRange

Temperature (DN50 to DN300): -10 to +120°C: 16 bar, +220°C: 13 bar, DN350 to DN600: Fig. 910 restricted to 135°C.

Manufacturer guidance

  • Hydraulic pressure test: Shell (24 bar).

Dimensions

230 x 140 x 197 mm.

Manufacturer guidance

Nominal A x B x C, where C = withdrawal distance for the strainer screen.

Weight

10 kg.

Flow capacity

58 Kv.

Manufacturer guidance

Flow coefficient Kv.

EffectiveArea

32%.

Manufacturer guidance

Free flow area/cm².

Plug

DN15.

Manufacturer guidance

Cover plug size.

Sustainability data

Material

Stainless steel

Guidance for specification option:

Screen.

Steel

Guidance for specification option:

Stud, nut and washer.

Cast iron

Guidance for specification option:

Body, cover and body plug.

Iron

Guidance for specification option:

Malleable iron drain plug and body plug.

Fibre

Guidance for specification option:

Gasket.

Show more

Recyclability

Recycle locally

Expected Life

20 year

Literature

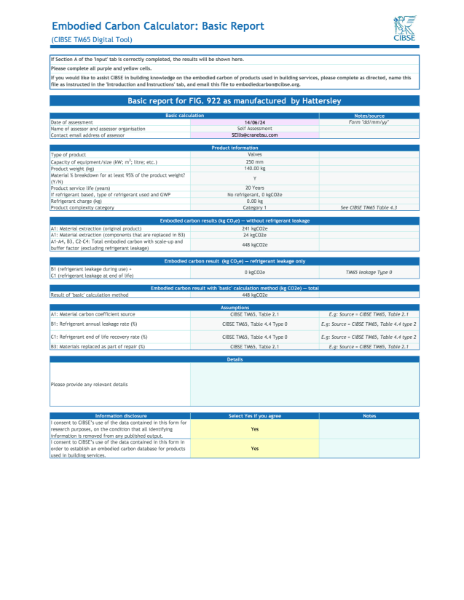

Strainer (Fig. 822, 922, 810 and 910) - TM65-HATTERSLEY-FIG. 810-DN350
