Stucanet - Plaster and Render Carrier

Verified by manufacturer 6 months ago

Stucanet® 80 E-BM

Bekaert Variant:

A plaster and render carrier manufactured from a steel welded wire mesh, into which a sheet of chip paper is interwoven.

Jump to:
+44 (0) 114 242 7488 Website

Application

  • For exterior facade applications.
  • Suitable for use with gypsum, lime, lime-cement or cement render.

Description

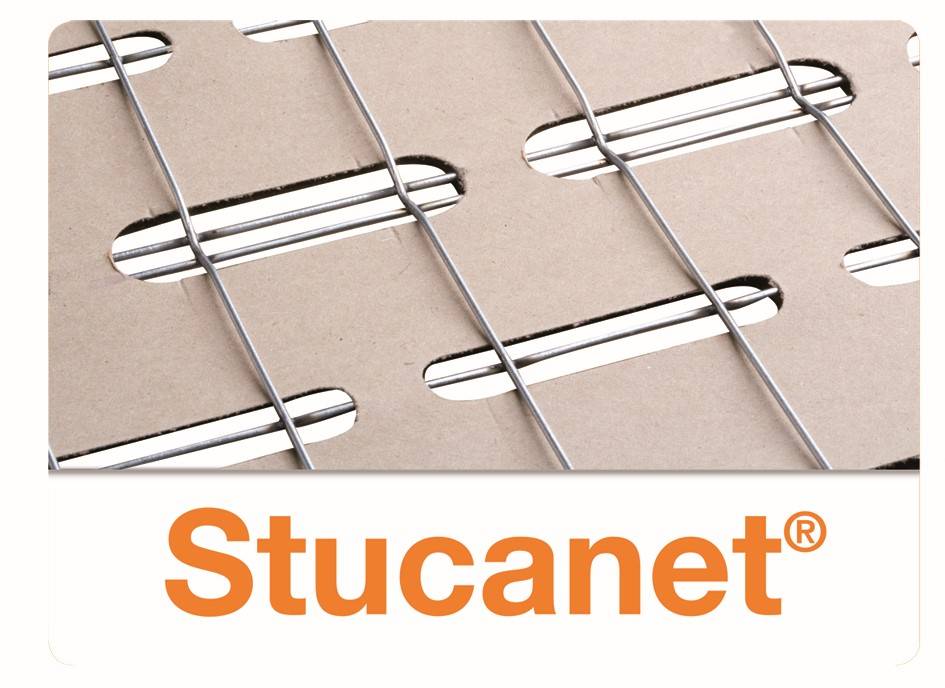

A range of a plaster and render carriers manufactured from a steel welded wire mesh into which a moisture-absorbent sheet of chip paper is interwoven.


The chip paper assists with the wet adhesion and curing of the mortar and the perforations allow the mortar to bond around the steel wires, resulting in firm anchoring of the mortar and high resistance to load and impact.


The panels are protected with a breather membrane to prevent moisture penetration, whilst still allowing the wall to breathe naturally.


Stucanet® 80 E-BM and Stucanet® 80 HG-BM have solid flat wires incorporated to increase the stiffness of the panel, and Stucanet® S E-BM and Stucanet® S HG-BM have two parallel, round fixing wires.


Features and benefits:

  • Available with galvanized steel or stainless steel welded wire mesh.
  • Quick and easy installation on every substrate or supporting structure including timber and metal frames.
  • New architectural and artistic freedom for plasterwork.
  • The solution for durable plastering and rendering.

General information

Color

Silver

Brown

Material

Steel

Stainless steel

Paper

Shape

Other

Rectangle

Length

2395 mm

Width

700 mm

Height

2 mm

Uniclass

Pr_20_85_46_28 Expanded metal lathingsPrimary

CAWS

M20/624 Damp proof lathing

M20/85 Damp proof lathing

Specification data - Expanded metal lathings

Material

Stainless steel and chip paper.

Material standard

To BS EN 13658-1, internal plastering and BS EN 13658-2, external rendering.

Form

Heavy galvanized welded wire mesh.

Guidance for specification option:

Moisture absorbent sheet of chip paper is interwoven.

Stainless steel welded wire mesh.

Guidance for specification option:

Moisture absorbent sheet of chip paper is interwoven.

Thickness

Fixing wire: 2 mm; Longitudinal and cross wire: 1.5 mm.

Material weight (minimum)

1.58 kg/m2.

Colour

Silver.

Sustainability data

Contains Red List materials

No

Country of material origin

Europe

Country of product manufacture

Slovakia
