Studio-Linked Rooflights
Verified by manufacturer 6 months ago
CR-1
CR-1

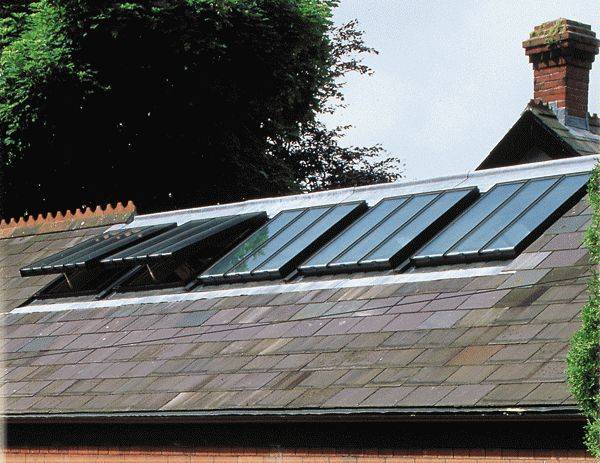

Close-coupled run of Conservation Rooflights®, using linking bar system.
Application
Suitable for pitched roof applications (17.5° - 65°) and can be incorporated into the roof ridge.
Description
Close-coupled run of Conservation Rooflights®, using linking bar system.
Features and benefits:
- Achieves a close-coupled run of rooflights by means of a linking bar system.
- Limitless runs of rooflights can be achieved.
- Steel frames, with a protective polyester powder coating.
- Include our unique Thermoliner® detail to minimise the risk of condensation and mould.
- Silicone beading and fronting to the glazing resembles traditional putty in appearance.
- Genuine glazing bars fitted as standard to most sizes.
General information
Color | Black Guidance for specification option: RAL9005. Grey Guidance for specification option: Light Grey (BS00A09), Dark Grey (BS00A13). White Guidance for specification option: RAL9010. Other Guidance for specification option: As per manufacturer and includes all BS, RAL and special colours available on request. |
Finish | Powder coated to BS EN ISO 12944 |
Material | Glass Steel |
Shape | Rectangle Square |
Warranty description | One year Guidance for specification option: On ancillary items. Five year Guidance for specification option: On glass. Ten year Guidance for specification option: On frames upon registration online. |
Uniclass | |
CAWS | L10/480 Roof windows |
Product range |
Specification data - Steel frame roof window units
Product performance | |
Whole window U-value | 1.4 W/m²K. |
Frame | |
Finish as delivered | |
Coating | Polyester powder coating to BS EN ISO 12944. |
Colour | Black (RAL 9005).Dark Grey (BS 00A13).Light Grey (BS 00A09).White (RAL 9010).Any BS.Guidance for specification option: Insert requirement. Any RAL.Guidance for specification option: Insert requirement. As drawing.As schedule. |
Glazing or infill | |
Standard | Relevant parts of BS EN 1279. |
Composition | 4 mm SGG Planilux Toughened Outer, 16 mm 90% Argon Cavity, 4 mm SGG Planitherm One II (Low E) Toughened Inner.Guidance for specification option: Producing a glass centre pane U value of 1.0 w/m²K. Manufacturer guidanceEnhanced glazing specification incorporating thermal, acoustic, security, light transmission, passive solar gain and decorative options available. |
Drained and vented rebate | Required. |
Clips or tape | Required. |
Beading | Silicone beading. |
Operation | |
Type | Electric operation.Electric chain actuator.Electric linear actuator.Electric rack actuator.Hand winder.Manual operation (within reach).Manual operation (out of reach).Pole winder and winding crank. |
Fixing features | Linking bar system. |
Accessories | Not required.Flashing kit.Guidance for specification option: Suitable for most roof types. Insert requirement. |
Dimensions | 385 x 545 mm. Manufacturer guidance
|
Linking bar | L-1. |
Glazing bar | Required. Guidance for specification option: As standard. Not required. Guidance for specification option: On request. |
Layout | As drawing. As schedule. |
Type | Not required. Pleated Blind. Roller Blind. Manufacturer guidanceBlind type. |
Style | Coma Collection. Natural Plains. Manufacturer guidanceBlind style. |
Colour | White. Guidance for specification option: Available in all types. Ivory. Taupe. Silver. Dark Grey. Manufacturer guidanceBlind colour. |
Operation | Manual. Electric. Rod. Manufacturer guidanceBlind operation. |
FrameMaterial | Steel. Other. Guidance for specification option: Different material specifications (e.g. stainless steel) are available for applications in industrial or maritime locations. Consult manufacturer for details. |
Electric actuators | Guidance for specification option:
|
Third-party certification | BSI Kitemark and KM 93754. |
