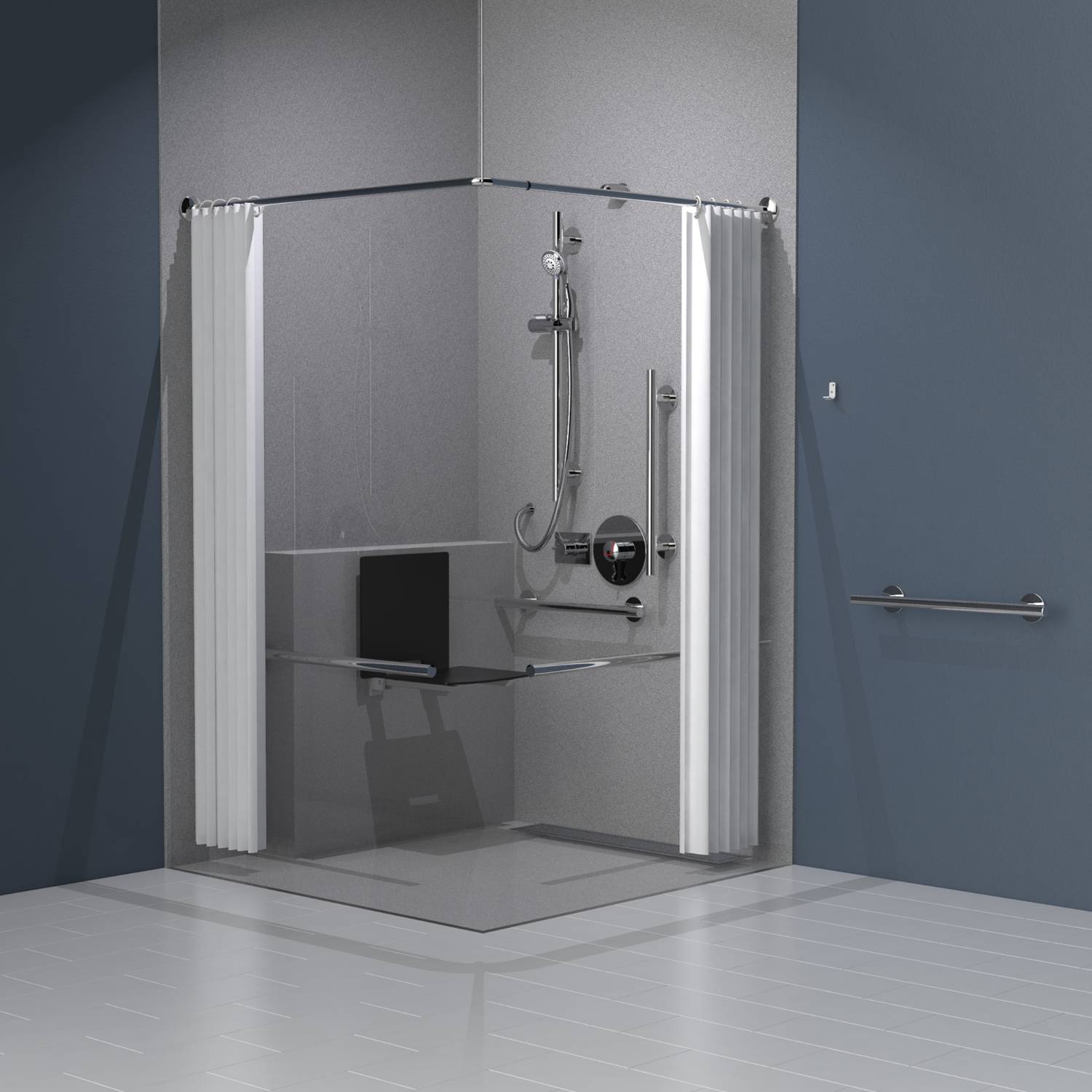

STYLE Concealed Valve Doc M Shower Pack with Stainless Steel Luxury Concealed Fixing Grab Rails and Slimline Shower Seat
Verified by manufacturer 3 months ago
321104/SP
321104/SP
DoP
Certificate type
WRAS
Certificate type
Concealed valve Doc M shower pack with stainless steel luxury concealed grab rails and slimline shower seat.
Application
Suitable for accessible shower rooms and wet areas.
Description
Doc M concealed valve shower pack with stainless steel luxury concealed fixing grab rails and slimline shower seat.
Features and benefits:
- Concealed valve and diverter with extended levers.
- Extended projection shower seat to allow easier side transfer from wheelchair.
- Non-corrosive concealed fixings stainless steel grab rails and hinged support rails.
- Simple one box solution.
- Complies with Part M of the Building Regulations.
- TMV3 and WRAS approved valve and diverter.
Pack contents:
- Slimline shower seat.
- Concealed TMV3 Doc M shower valve.
- Concealed Doc M shower diverter.
- Antivandal overhead shower head.
- Shower head and hose.
- 600 mm stainless steel luxury grab rails with concealed fixings (three).
- 450 mm stainless steel luxury grab rail with concealed fixings.
- 900 mm stainless steel luxury grab rail with concealed fixings.
- 800 mm stainless steel contemporary hinged support rails (two).
- 1200 x 1200 mm stainless steel shower curtain rail.
- Weighted shower curtains (two).
- Sliding shower head bracket.
- Single robe hook.
General information
Color | Black Silver Grey |
Finish | Polished Satin Matt Chrome |
Material | Stainless steel Plastic Aluminium Polyurethane (PUR) Polyester |
Shape | Other |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Manufacturer guidanceConsult manufacturer's literature for individual product warranties. |
Uniclass | |
CAWS | N13/14 Unisex accessible shower room equipment packages (Document M) N13/312 Unisex accessible shower room equipment packages (Document M) |
Specification data - Accessible shower equipment packages
Standard | In accordance with Approved Document M. |
Form | Complete accessible shower Doc M package and fittings. |
Transfer handing | Left-hand.Right-hand. |
Material and colour | |
Seat | Plastics, black. |
Seat back | As Seat. |
Shower curtains and rails | White stainless steel curtain rail with white polyester curtain.Satin stainless steel curtain rail with white polyester curtain.Polished stainless steel curtain rail with white polyester curtain. |
Handrails | Polished stainless steel.Manufacturer guidanceConsult manufacturer's literature for details. |
Water supply fittings | |
Shower fittings | Shower head and hose with sliding shower head bracket. |
Finish | Chrome-plated. |
Operating control | Lever and temperature ring. |
Water supply temperature (maximum) | 65°C. |
Flow rate | 8 l/min. at 5 bar. |
Integral accessories | Single aluminium robe hook, white.Single aluminium robe hook, dark blue.Single aluminium robe hook, dark grey.Single aluminium robe hook, grey. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Manufacturer guidanceIndividual items within pack vary in source |
Country of product manufacture | Manufacturer guidanceIndividual items within pack vary in source |
Material | Stainless steel Plastic Aluminium Polyurethane (PUR) Polyester |
Recyclability | Metal items recyclable Guidance for specification option: Other items within pack check local disposal guidelines, disassembly may be required |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Third party certifications
DoP
DOP-321104
WRAS
REG4-NYOPTS3650CLCKIT
Literature
NymaSTYLE Concealed valve Doc M shower pack with stainless steel luxury concealed fixing grab rails and slimline shower seat
