SupaDuct External Ducting PIR Insulation Board

Verified by manufacturer 2 days ago

MW Insulation Ltd

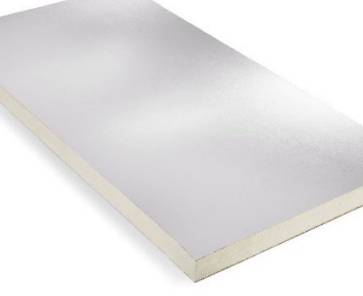

External ducting insulation board made of rigid polyisocyanurate (PIR) foam, faced with a multilayer foil vapour barrier on both sides.

Jump to:
+44(0)161 877 1608 Website

Application

Insulation product used for external ductwork.

Description

MW SupaDuct insulation is a premium, high performing insulation product used for external ductwork. SupaDuct is a rigid insulation board, to be applied to HVAC and building service ductwork. SupaDuct can be applied to circular and flat ductwork, together with associated equipment and is ideal for combining with cladding systems due to its lightweight but rigid form.

Features and benefits:

  • Tested and CE marked in accordance with BS EN 14308: 2009 + A1: 2013 (thermal insulation products for building equipment and industrial installations).
  • Manufactured under the management systems ISO 14001 and ISO 9001 and is currently supported by an EPD verified by the BRE.
  • Made of rigid polyisocyanurate (PIR) foam, faced with a multilayer foil vapour barrier on both sides.

General information

Color

Silver

Finish

Foil

Material

Polyisocyanurate (PIR)

Shape

Rectangle

Length

2400 mm

Width

1200 mm

Height

Bespoke

Uniclass

Pr_80_77_76_65 Polyisocyanurate (PIR) insulationPrimary
Pr_25_71_63_66 Polyisocyanurate (PIR) foam boards

CAWS

U90/490 Site-applied insulation to ductwork

Specification data - Polyisocyanurate (PIR) insulation

Standard

To BS EN 14308.

Form

Duct slab.

Thermal conductivity

0.023 W/m·K at 10°C.

Manufacturer guidance

  • 0.020 W/m·K at -20°C.
  • 0.022 W/m·K at 0°C.
  • 0.023 W/m·K at 10°C.
  • 0.024 W/m·K at 19°C and 25°C.
  • 0.028 W/m·K at 50°C.
  • 0.032 W/m·K at 80°C.

Finish

Aluminium.

Fire performance

Euroclass reaction to fire rating of F tested to BS EN 13501-1.

Environmental rating

GWP: Classified as ‘Low’.

Insulation thickness

To BS 5422.

Vapour barrier

-

Material

Low emissivity plain multilayer foil.

Vapour permeability

To BS 5422, clause 5.6.

Dimensions

1200 x 2400 mm.

Density

30 kg/m³.

Sustainability data

Material

Polyisocyanurate (PIR)
