Heavy Duty Folding Lift Shutter Door

Jump to:
+44 (0)1204 871001 Website

Application

Traditionally the Superior Lift Door is specified for use on goods lifts in supermarkets, shopping malls, retail stores, warehouses and storage facilities but there are countless other locations around world that have benefitted from it’s integral strength and resilience for example, museums and galleries such as the V & A, London and Munch Museum, Oslo where it is used in the transportation of precious art work to the extreme opposite of heavy industry and it’s use in the worlds largest diamond mine, Jubilee, in Botswana.


Performance Characteristics:

EN81 Part 58 (Rated E120 / EW20).

EN81 Part 20 compliant.

EN81 Part 50 compliant.



Key Attributes:

Perfect solution for goods lift car and landing doors.

Heavy duty construction.

Bespoke, compact design.

Compliant with relevant EN81 requirements.




Description

Bolton Gate Company’s Superior Folding Lift Shutter Door offers all the advantages of a compact folding door arrangement but with the addition of an extremely robust and heavy duty design.



Manufactured without compromise, for many years the ‘Superior Lift Door’ has been the benchmark for the lift  industry and this still continues today for projects in the UK and around the world. When there is a need for ‘heavy duty’ or when a Client is seeking greater longevity with the resultant lower maintenance costs the Bolton Superior Lift Door is the product of choice.



All the necessary testing and design considerations have been undertaken to ensure the door satisfies the requirements of EN81 Part 20 and Part 50 when specified.


Operation

The Superior Lift Door is a manually operated door system.



Despite it’s extremely robust and heavy duty construction, the sliding folding gate frame easily allows the door to be pulled or pushed into position with the minimum of effort.



Gate Frame

In this step up from the Eurofold Lift Door, the Superior’s greater resilience stems from the additional strength of it’s gate frame. This gate frame boasts 3mm thick double  channel vertical pickets which are interconnected by 6mm thick solid steel lattice bars.



The gate frame is top hung from a ball bearing pulley connected to the picket by zinc plated pulley brackets.



Additionally, at the base, the frame is fitted with zinc plated guide pieces designed to engage within the bottom track.



Leading Edge

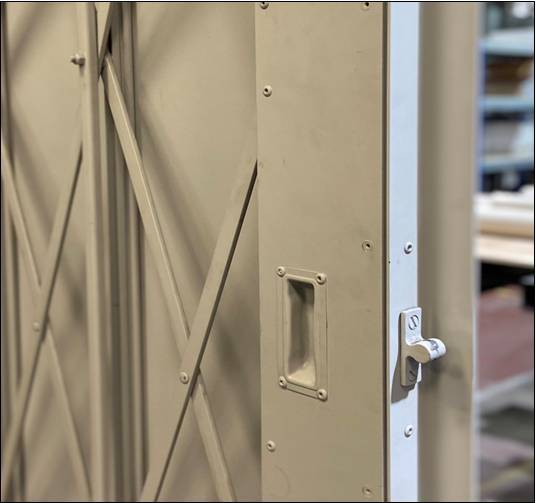

The heavy duty leading edge is fabricated from steel channels and 3mm thick full height side plates. This leading edge can be prepared for optional locks, latches or interlock beaks etc.



A Number 10 bow handle is fitted as standard for ease of operation.



Shutter Leaves

The shutter leaves are rolled from galvanised steel and are available in a 152mm standard width. A 229mm leaf option is also available.


Top Track

The shutter is suspended from a top track constructed from two 90mm deep galvanised steel sections bolted together to provide a smooth running carrier for the gate frame.  Being compact in design only minimal headroom is required for the top track.



Bottom Track

The bottom guide pieces are retained within a 26 x 26mm galvanised steel channel type bottom track.



If existing bottom tracks or cills are to be re-used, specially milled guides can be supplied to suit the existing track  dimensions.



Finish

Mainly galvanised steel with remaining components finished with a coat of primer paint.



Maximum Size

7000mm wide x 7000mm high

3640mm wide x 2990mm high (for EN81 Part 58)



Weight

Varies with opening size but approximately 38kg/m².



Options

· Vision Panel.

· Holdfast Magnet.

· Mathews Catch.

· Electro-magnet (Car Doors).

· VL10 Gatelocks (Landing Doors).

· Low level VL10 Gatelock release (Landing Doors).

· Complete and partial subframe assemblies (Landing Doors).

· Heavy duty cills (Landing Doors).

· Stainless steel finish to face side.

· Polyester powder coat finish.

General information

Color

-

Manufacturer guidance

Galvanised as standard with the additional cost option of a polyester powder coat finish to a single RAL colour.

Finish

Galvanized

Guidance for specification option:

Standard.

Powder-coated

Guidance for specification option:

Optional.

Material

Steel

Guidance for specification option:

Galvanized steel with remaining components finished with a coat of primer paint.

Stainless steel

Guidance for specification option:

Optional for one side of face.

Shape

Square

Rectangle

Width

Bespoke

Manufacturer guidance

The doors are bespoke and manufactured to suit the project requirements.


Maximum dimensions: -

7000mm clear width x 7000mm clear height.


Maximum dimensions when fire rated (for EN81 Part 58): -

3640mm clear width x 2990mm clear height.

Height

Bespoke

Manufacturer guidance

The doors are bespoke and manufactured to suit the project requirements.


Maximum dimensions: -

7000mm clear width x 7000mm clear height.


Maximum dimensions when fire rated (for EN81 Part 58): -

3640mm clear width x 2990mm clear height.

Warranty description

One year

Uniclass

Pr_30_59_46_46 Lift landing doorsetsPrimary

CAWS

L20/480 Doorsets

L20/540 Sliding folding doors

L20/520 Sliding doors

L20/535 Sliding folding shutter doors

P21/350 Door track and running gear

L20/60 Doors

Product range

Lift

Specification data - Lift landing doorsets

Landing doors

-

Door type

Folding shutter door.

Fire classification

E120.

Guidance for specification option:

Landing doors are supplied in a fire-resisting version when specified. The door has been successfully tested to EN 81-58 for up to two hours fire resistance (E120 rating in accordance with EN 13501-2).

Operation

Manual.

Sills

-

Type

Without carpet trim.

FrameMaterial

Frame: Double channel vertical pickets (3 mm thick), solid steel horizontal lattice bars (6 mm thick), galvanized steel.

Guidance for specification option:

  • The gate frame is top hung from a ball bearing pulley connected to the picket by zinc plated pulley brackets.
  • Additionally, the frame is fitted with zinc plated guide pieces at the base, designed to engage within the bottom track.

Leading edge fittings

Heavy duty leading edge steel channels, 3 mm thick full height side plates.

Guidance for specification option:

  • Standard width leading edge provided with 10 bow handles fitted as standard for ease of operation.
  • Leading edge can be prepared for optional locks, latches or interlock beaks.

Shutter

152 mm, galvanized steel.

Guidance for specification option:

Standard width.

229 mm, galvanized steel.

Guidance for specification option:

Optional width.

Dimensions

7000 x 7000 mm (maximum).

Guidance for specification option:

W x H, insert requirement.

3640 x 2990 mm (maximum).

Guidance for specification option:

Maximum W x H for EN 81 Part 58, insert requirement.

Weight

38 kg/m² (approximate).

Guidance for specification option:

Varies with opening size.

Performance

Internal, heavy duty.

Track system

Galvanized steel channel, two 90 mm deep section top track, 26 x 26 mm bottom channel.

Guidance for specification option:

  • Top tracks bolted together to provide a smooth running carrier for the gate frame.
  • Being compact in design, only minimal headroom is required for the top track.
  • If existing bottom tracks or cills are to be re-used, specially milled guides can be supplied to suit the existing track dimensions.

Construction

Galvanized steel.

Finish and colour

Galvanized steel and primer paint.

Guidance for specification option:

Standard.

Stainless steel finish to face side.

Guidance for specification option:

Optional.

Polyester-powder coated, RAL.

Guidance for specification option:

Optional.

Accessories

Not required.

Vision panel.

Holdfast magnet.

Mathews catch.

Electro-magnet (car doors).

Show more

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Steel

Guidance for specification option:

Galvanized steel with remaining components finished with a coat of primer paint.

Stainless steel

Guidance for specification option:

Optional for one side of face.

Manufacturing plant location

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

0 %

Expected Life

25 year

Third party certifications

ISO 9001 Quality Management

ISO 9001 Quality Management

Certificate of Management System Registration - ISO 9001:2015

dhf certificate

dhf certificate

DHF Membership

 Acclaim Accreditation

Acclaim Accreditation

Health & Safety Accreditation
