Application

Suitable for use in many environments where high resistance to wear, coupled with hygiene qualities are necessary, such as chemical processing plants, underground rail stations, refineries, food processing, abattoirs, dairies, breweries, paper-making industries, marine decking, hospitals and nuclear power decontamination areas.

Description

Stainless steel flooring used in a wide range of industries as a long term, corrosion resistant solution for use in most environments.


Features and benefits:

  • Anti-static.
  • Cost effective.
  • Low maintenance.
  • Provides a long-term corrosion resistant solution.
  • Providing sanitary and hygiene qualities.
  • High durable solution for floors, platforms and access equipment.
  • Can be supplied with plain holes, countersunk holes or elongated slots in all thicknesses.

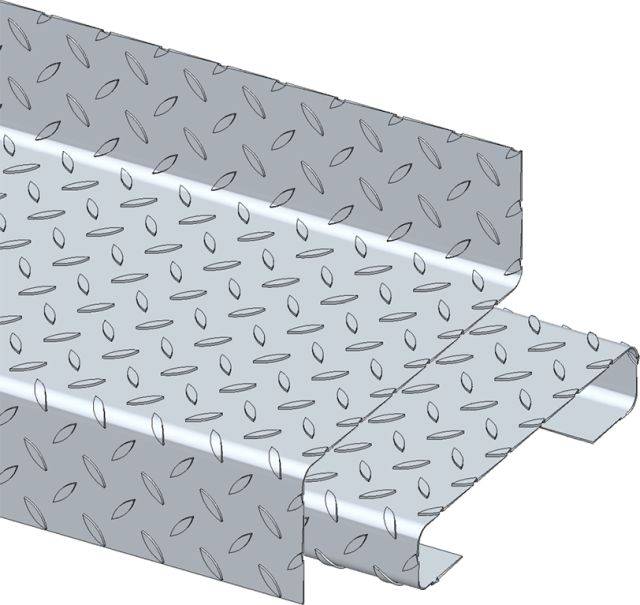

  • Can also be bent to specified angles to form kickflats, upstands and stair treads up to 3500 mm long.
  • The distinctive tear-shaped, raised tread pattern provides positive traction for both pedestrian and wheeled traffic.
  • Floorfasts fixings should be used when fixing to steelwork to enable the Suregrip to be secured from above using a simple tee-handled hexagon key.
  • Floorfasts fixing eliminates the need for access from below and does not require any site drilling or welding.


Suregrip floor plate:

  • High wear resistance, durability and toughness in most environments.
  • Available in five thicknesses.


Suregrip thin gauge floorplate:

  • Light weight safety flooring.
  • Versatile as a flooring or cladding material.
  • Available in four thicknesses.

General information

Color

Silver

Finish

Mill

Bead blast

Electropolished

Manufacturer guidance

Consult manufacturer for details.

Material

Stainless steel

Guidance for specification option:

Grade 1.4301 (304).

Grade 1.4401 (316) for use in corrosive environments.

Shape

Other

Length

3000 mm

Width

1000 mm

1250 mm

Uniclass

Pr_25_30_30_12 Carbon steel cold-formed planksPrimary

CAWS

L35/110 Companionway system

L35/120 Duckboard system

L35/140 High level walkway system

L35/150 Stair systems

L35/160 Working platform system

Specification data - Carbon steel cold-formed planks

Format

Closed.

Finish

Mill.

Bead blast.

Electropolished.

Special order.

Guidance for specification option:

Consult manufacturer for information.

Size

-

Length x width

3000 x 1000 mm.

3000 x 1250 mm.

Special order.

Guidance for specification option:

Consult manufacturer for details.

Manufacturer guidance

Available length up to 6000 mm, consult manufacturer for details.

Thickness

3 mm.

Tread

Integrally formed 1–2 mm thick ‘teardrop’.

Guidance for specification option:

It is grip effective for any angle of approach.

Working load limit (WLL)

-

Manufacturer guidance

Maximum safe working load, dependent on thickness, width and length, consult manufacturer for details.

Type

Hot rolled.

Slots

Not required.

Plasma profile cut outs.

Holes for fixing down.

Formed upstand.

Manufacturer guidance

Holes and slots.

Can be supplied with plain or countersunk holes or elongated slots as required in all thicknesses.

Weight (approximate)

24.6/ 26.7 kg/m².

Manufacturer guidance

Theoretical weight.

Materials

Stainless steel, grade 1.4301 (304).

Stainless steel, grade 1.4401 (316).

Guidance for specification option:

For use in corrosive environments.

Fixing method

Floorfast fixing.

Guidance for specification option:

Recommended - the Floorfast is designed to enable the SUREGRIP to be secured from above using a simple tee-handled hexagon key, eliminating the need for access from below. It does not require any site drilling or welding

Not required.
