Verified by manufacturer 1 month ago
EPD
Certificate type
Certificate of Conformity
Certificate type
Heterogeneous safety vinyl collection with decorative wood effect designs combined with slip-resistant particles.
Internal use, all busy commercial and public sector locations where there is an increased slip risk due to continuous contamination such as small commercial kitchens.
A heterogeneous safety vinyl collection with decorative wood effect designs combined with slip-resistant particles.
With 12 realistic natural designs, Surestep Wood provides a warm ambiance to all areas. Forbo’s Surestep Wood meets Health and Safety Executive (HSE) and European Standard requirements.
Features and benefits:
Optional fabricated underlay:
Adhesive:
- Eurocol 140 Euromix PU Pro:
Polyurethane resin and hardener, water-resistant, two-component PU adhesive.
- Eurocol 233 Eurosol Contact:
Synthetic rubber in solvent, fast-setting contact adhesive.
- Eurocol 640 Eurostar Special:
Superior acrylic dispersion, low VOC-emitting adhesive with a high initial grab.
Color | Brown Grey |
Finish | Other |
Material | PVC |
Shape | Rectangle |
Length | 20000 mm 21000 mm 22000 mm 23000 mm 24000 mm |
Width | 2000 mm |
Height | 2 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | M50/150 Sheeting M50/20 Sheeting |
Standard | Heterogeneous PVC to BS EN ISO 10582 and BS EN 13845 and 14041. |
Use class | Class 34 Commercial very heavy, Class 43 light industrial. |
Slip potential | |
Slip resistance value (SRV) (minimum)/ Pendulum test value (PTV) (minimum) | DIN 51130, R10; BS EN 13893, DS ≥0.30.; PTV Wet slider 96: ≥36. |
Surface roughness (Rz) (minimum) | ≥20. |
Recycled content | 20%. |
Width | 2000 mm. |
Thickness | Total: 2.0 mm; Wear layer: 0.7 mm. |

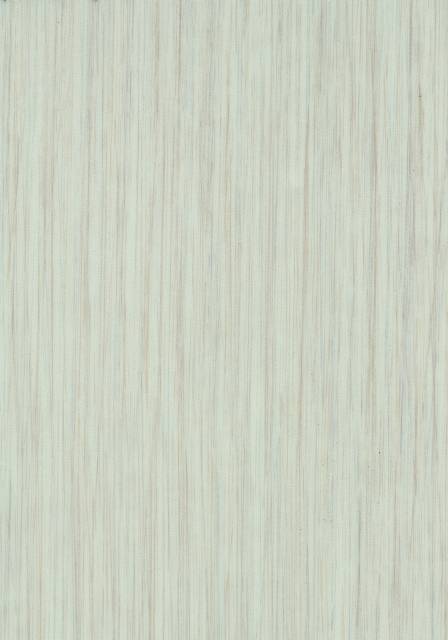

Colour and pattern | 18802 elegant oak.18942 natural oak.18832 grey oak.18882 classic oak.18962 whitewash oak.18902 dark oak.18262 natural multisize oak.18282 steamed multisize oak.18622 shell twine.18642 classic twine.18712 classic twine mosaic.18072 classic herringbone. |
Dimension stability (to EN-ISO 23999) | <0.1%. |
Residual indentation (to EN-ISO 24343-1) | ≤0.05 mm. |
Castor chair continuous use (to EN 425) | No effect. |
Electrical resistance (to EN 1081 R1) | >1 x 10^9 Ω. |
Reaction to fire (to BS EN 13501) | Bfl-s1. |
Body voltage (to BS EN 1815) | <2 kV. |
Thermal conductivity (to BS EN 12524) | 0.25 W/m·K. |
(to EN 13845 Annex C) | Esf. |
EN 13845 Annex D 50.000 revolutions <10% loss | Pass. |
Adhesive | Not required. Eurocol 140 Euromix PU Pro. Eurocol 233 Eurosol Contact. Eurocol 640 Eurostar Special. |
Fabricated underlay | Not required. Forbo Corkment underlay. Forbo QuickFit subfloor system. Forbo Vinylbase acoustic underlay. Forbo Sarlibase T.E. underlay. |
Resistance to chemicals (to EN ISO 26987) | Very good. |
Light fastness (to BS EN ISO 105 B02) | ≥6. |
Total weight (to EN ISO 23997) | 2.75 kg/m². |
Edging | Not required. As per 740. |
Skirtings | Not required. As per 770. |
Stair nosings | Not required. As per 750. |
Contains Red List materials | Yes |
Country of material origin | Netherlands |
Country of product manufacture | Netherlands |
Material | PVC |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 4.83 kg CO₂ eq/m² Certified Lower emissions |
Recyclability | 100% Manufacturer guidancePost production material |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 24 % Manufacturer guidancePercentage has increased from 20 to 24% since current EPD was issued. Awaiting new EPD to be published. |
Certified
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
