Sylan Glass Pivot Cubicles

Verified by manufacturer 4 months ago

Sylan

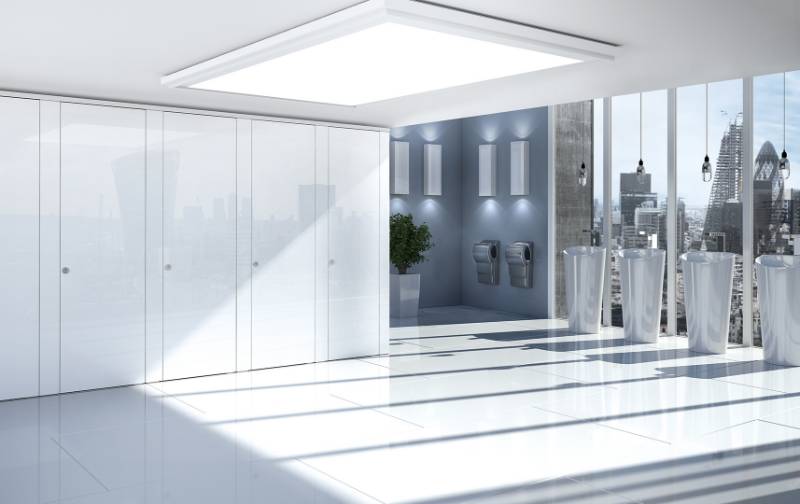

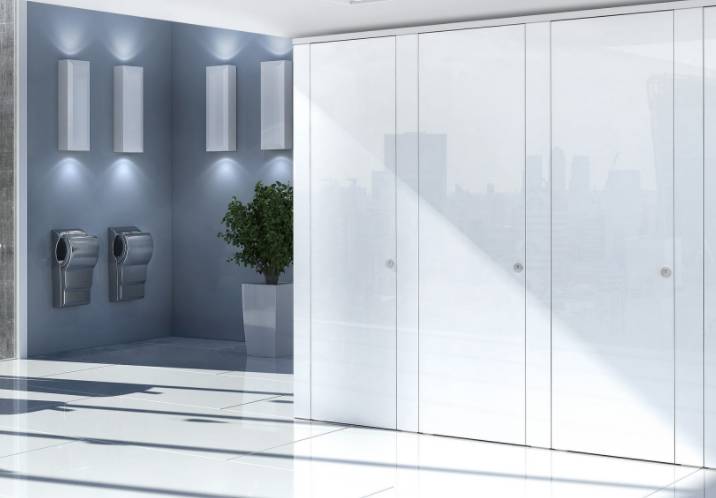

Unframed toilet cubicle with soft closing stainless steel pivot hinge system.

Jump to:
+44 (0)1763 276200 Website

Application

Luxury flush fronted cubicles for Commercial washrooms.

Description

Sylan’s Glass range delivers enriched colour and privacy. The face displays the reflective quality of glass with its naturally smooth, easy to clean, hardwearing and scratch resistant surface. The colour depth achieved is due to its two layers of vitrified paint on the reverse. Bonding the glass to a solid colour matched background makes it impossible to see through, eliminating backlit shadow.


It compromises highly reflective surface quality and has toughened safety glass that is eight times stronger than standard float glass. The stylish toilet cubicle includes stainless steel ironmongery and a self-closing and dampened pivot hinge system.


Features and benefits:

  • Flush fronted, glass cubicle system.
  • Strong, secure and luxurious finish.
  • Mortice lock faceplate and rose bar.
  • High-density core board, 35 mm fronts and 25 mm divisions.
  • Available in black and white.
  • Full height option.
  • Hydraulic self-closing and dampened aluminium stainless steel effect pivot hinge system.
  • Satin anodized aluminium and white powder coated extrusions and floor blocks.
  • Discreet satin anodized aluminium gravity channel for divisions to wall fixing and wall end pilaster fixing.
  • Aluminium slim line headrail powder coated gloss white or black to suit glass or satin anodized aluminium to suit other fixtures.

General information

Color

Black

White

Finish

Glazed

Material

Glass

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

Ten year

Uniclass

Ss_25_12_60_60 Panel cubicle systemsPrimary

CAWS

K32/120 Panel cubicles

K32/10 Panel cubicles

Specification data - Panel cubicle systems

Panels

25 mm MDF.

Guidance for specification option:

Faced on both sides with high pressure laminate.

Manufacturer guidance

Divisions.

Panel supports

Satin anodized aluminium floor blocks.

White powder coated floor blocks.

Pilasters

35 mm MDF.

Guidance for specification option:

Flush fronted cubicle system.

Doors

35 mm MDF.

Guidance for specification option:

Flush fronted cubicle system.

Lippings

Required.

Hardware

Mortice lock.

Guidance for specification option:

Machined flush into door and pilaster rebates, complete with DDA compliant lever-operated indicator bolt with circular face plate incorporating emergency release facility.

System accessories

Not required.

Buffered coat hook.

Polished aluminium pull handles.

Guidance for specification option:

Where detailed on drawings outward opening doors have been allowed complete with polished aluminium pull handles to the outside face of door.

Hinges

Self-closing and dampened stainless steel pivot hinge system.

Guidance for specification option:

Incorporating soft-close feature as standard.

Surface finish

4 mm double back painted toughened safety glass.

Colour

White.

Black.

Dimensions

Guidance for specification option:

Insert requirements.

Up to 2600 mm maximum overall height including 20 mm floor clearance  (to doors and fronts only) and 40 mm headrail. 20 mm (front only)/ 60 mm (divisions) ceiling clearance required for headrail installation.



Sustainability data

Contains Red List materials

No

Country of material origin

Spain

Country of product manufacture

United Kingdom
