System-90 PLUS

Verified by manufacturer 5 months ago

Lorient Third party certifications:
  • Certifire Certificate

    Certifire Certificate

    Certificate type

A PVC glazing profile with intumescent core and liner.

Jump to:
+44 (0)1626 834252 Website

Application

FD60 fire doors and timber framed screens

Description

System-90 PLUS is a glazing system designed for 60 minute fire resistant doors and screens.


The glazing system comprises:

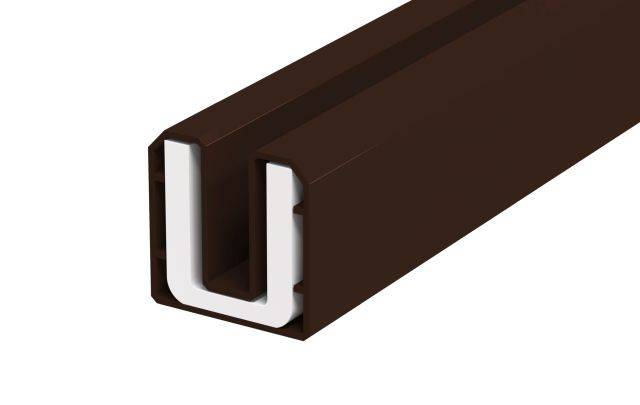

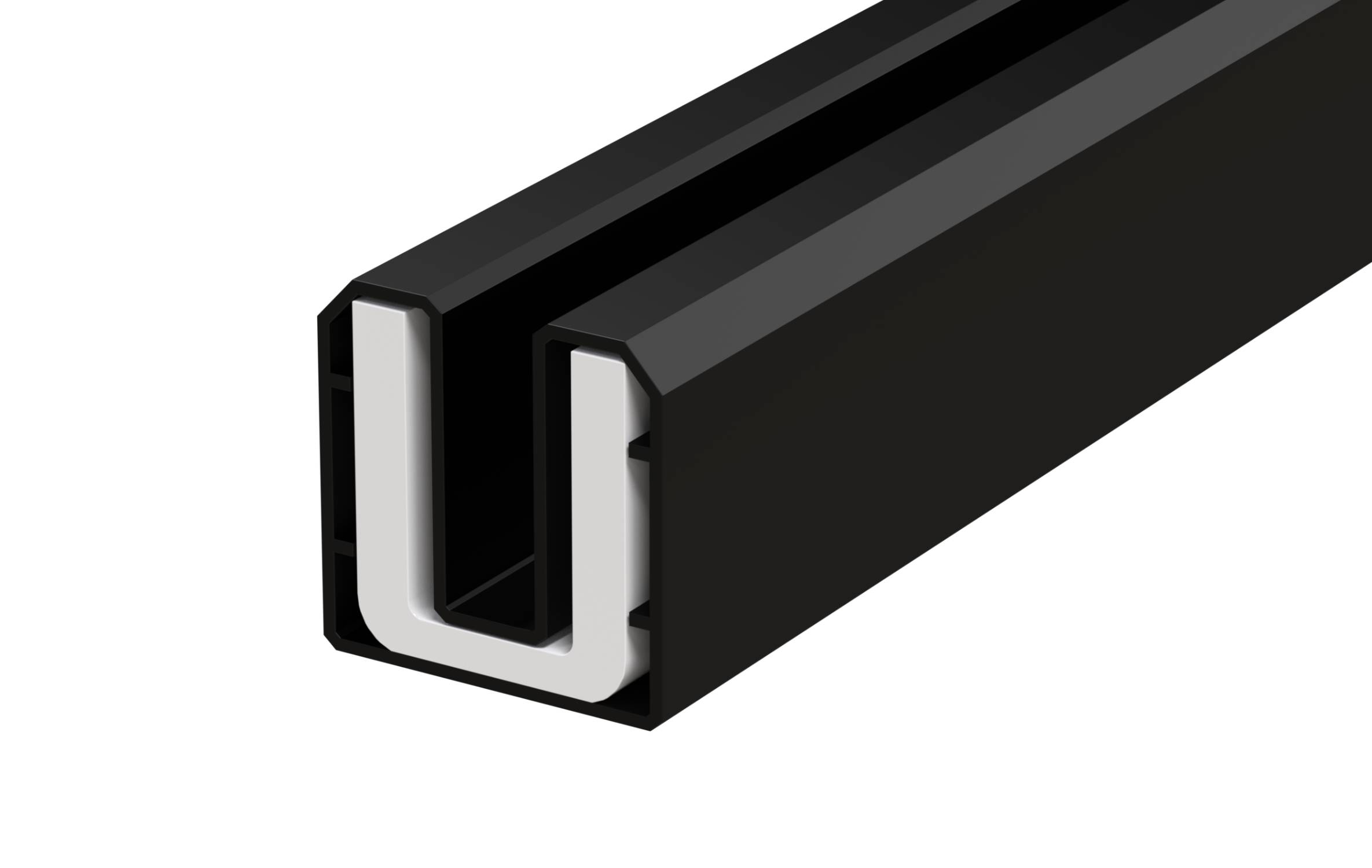

  • A U-shaped PVC profile containing an intumescent core.
  • An intumescent liner.
  • Beads of wood or metal (sold separately).


Features and benefits:

  • When using a suitable door and screen construction, (such as the Georgia-Pacific system for high performance fire door assemblies) it provides 90 minute fire resistance.
  • 120 minute fire resistance can be attained only when a suitable door construction is used.
  • Tested with a range of glass types.
  • Standard profile lengths: 1000, 1250 and 2100 mm.
  • Standard finishes: cream, white, black, light brown, red, dark brown, silver, gold, bronze and maple.
  • Carries CERTIFIRE CF185.

General information

Color

Cream

White

Black

Brown

Red

Material

PVC

Intumescent

Shape

-

Manufacturer guidance

U-shaped

Length

2100 mm

Width

27 mm

Height

27 mm

Uniclass

Ss_25_60_35_30 Fire-resistant glazing systemsPrimary

CAWS

L10/510 Glazed wood screens

L10/56 Glazed screen system

L20/20 Wood flush doors

L20/230 Wood flush doors

L20/25 Wood panelled doors

L20/250 Wood panelled doors

L20/270 Wood doors

L20/280 Doors

L20/30 Wood doors

L20/410 Wood doorsets

L20/420 Wood doorsets

L20/430 Wood doorsets

L20/480 Doorsets

L20/55 Doorsets

Specification data - Fire-resistant glazing systems

Retaining arrangements

-

Beads

Glazing beads.

Guidance for specification option:

Available in hardwood or pressed steel Z-section.

Dimensions

27 x 27 mm, in 1000, 1250 and 2100 mm lengths, Ref: LG2727.

Manufacturer guidance

Channel dimensions

Channel colour

Cream.

White.

Black.

Light brown.

Red.

Show more

Sodium silicate intumescent liner

44 x 2 mm, Ref: LX4402.

54 x 2 mm, Ref: LX5402.

Type

22 x 14 mm hardwood, rebated and chamfered, Ref: LG2213.

22 x 19 mm hardwood, rebated and chamfered, Ref: LG2218.

22 x 19 mm hardwood, chamfered, Ref: LG2220.

22 x 25 mm steel, 10 mm rebate, Ref: LG4710.

Guidance for specification option:

For use with 90 min and 120 min door applications.

22 x 25 mm steel, 15 mm rebate, Ref: LG4715.

Guidance for specification option:

For use with 90 min and 120 min door applications.

Fixing

Through-bolted.

Guidance for specification option:

For 90 min and 120 min door applications.

Finishes

Oak.

Beech.

Utile.

Steel.

Sustainability data

Country of product manufacture

United Kingdom

Material

PVC

Intumescent

Manufacturing plant location

Third party certifications

Certifire Certificate

Certifire Certificate

Certifire CF185
