Platform edge flag paving
EPD
Certificate type
ISO 9001 Quality Management
Certificate type
BES 6001
Certificate type
ISO 14001 Environmental Management Systems
Certificate type
ISO 45001 Health and Safety Management
Certificate type

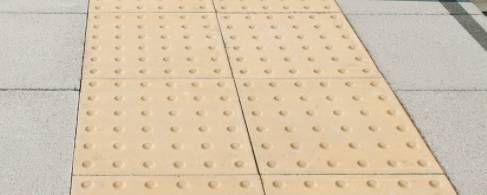

Range of tactile flag paving products.
Commercial use, in accordance with Department of the Environment, Transport & the Regions 'Guidance on the use of Tactile Paving Surfaces' April 2000.
The range of Brett tactile flag paving can be combined with the specialist kerb systems to offer integrated roadside approach and safety solutions which are particularly relevant at road crossings and passenger vehicle boarding points.
All of the Tactile paving flags have a square edge with no chamfer and provide excellent durability in service.
For commercial use, in accordance with Department of the Environment, Transport & the Regions 'Guidance on the use of Tactile Paving Surfaces' April 2000.
Standards:
Brett Landscaping operate a number of independently audited management systems:
Color | Grey Yellow Red |
Material | Concrete Guidance for specification option: Precast (hydraulically pressed). |
Shape | Square |
Length | 400 mm 450 mm 600 mm |
Width | 400 mm 450 mm 600 mm |
Height | 50 mm 65 mm 70 mm |
Uniclass | |
CAWS | Q25/54 Tactile flags and slabs Q25/320 Tactile flags and slabs |
Standard | To BS EN 1339: 2003. |
Physical properties | |
Colour | Buff.Guidance for specification option: Made to order. |
Profile | |
Flag type | Regular plan form. |
Arrises | Square. |
Dimensions and associated tolerances | |
Nominal sizes | 400 x 400 x 50 mm.Guidance for specification option: Unit weight: 18.8 kg. |
Tolerances on plan dimension and thickness (nominal) | Thickness ±3 mm; Plan size: ±2 mm. |
Weathering resistance | Class 3. |
Abrasion resistance | Class 4.Guidance for specification option: Abrasion resistance: ≤20 mm, determined by Wide Wheel Abrasion test. |
Bending strength | Class 3.Guidance for specification option: ≥5.0 MPa. |
Breaking load class | 45.Guidance for specification option: >4.5 kN. |
ThermalConductivity | 1.2 W/m·K. |
Reaction to fire | Class A1 when used for internal flooring. |
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 0.12 kg CO₂ eq/kg |
Recyclability | 90% |
EPD
Environmental Product Declaration - Paving Barrow
ISO 9001 Quality Management
Quality Management System Certification - BS EN ISO 9001:2015
BES 6001
Responsible Sourcing of Construction Products BES 6001
ISO 14001 Environmental Management Systems
Environmental Management System Certification - BS EN ISO 14001:2015
ISO 45001 Health and Safety Management
Occupational Health & Safety Management System Certification - BS ISO 45001:2018
