Verified by manufacturer 3 months ago
6350 Light Cherry
EPD
Certificate type
Taraflex® Comfort is a point elastic vinyl sheet sports offering excellent shock absorption and impact protection levels.
Suitable for a variety of sports and leisure activities.
Taraflex® Comfort is a two-part vinyl sheet sports floor covering consisting of a D-Max™ surface - Gerflor’s own complex made up of calendered polyvinyl chloride (PVC) sheets reinforced with a fibreglass grid for high durability and outstanding dimensional stability. It is backed with CXP HD™ closed cell foam then laid on polyolefin low density foam. This combination gives the product excellent sporting performance and safety characteristics.
Features and benefits:
Installation and maintenance:
Should be installed in accordance with the BS 8203:2017 Code of practice for installation of resilient floor coverings. Installation and maintenance instructions are available; consult manufacturer for details.
Color | Other Guidance for specification option: Please see specification data for options. |
Finish | Matt |
Material | Vinyl |
Length | 26500 mm Guidance for specification option: Maximum roll length. |
Height | 12.5 mm Guidance for specification option: Thickness to EN ISO 24346. |
Warranty description | 12 year |
Uniclass | |
CAWS | M50/150 Sheeting M50/20 Sheeting |
Product range |
Standard | To EN 14904. |
Thickness | 12.5 mm.Guidance for specification option: To EN ISO 24346. |

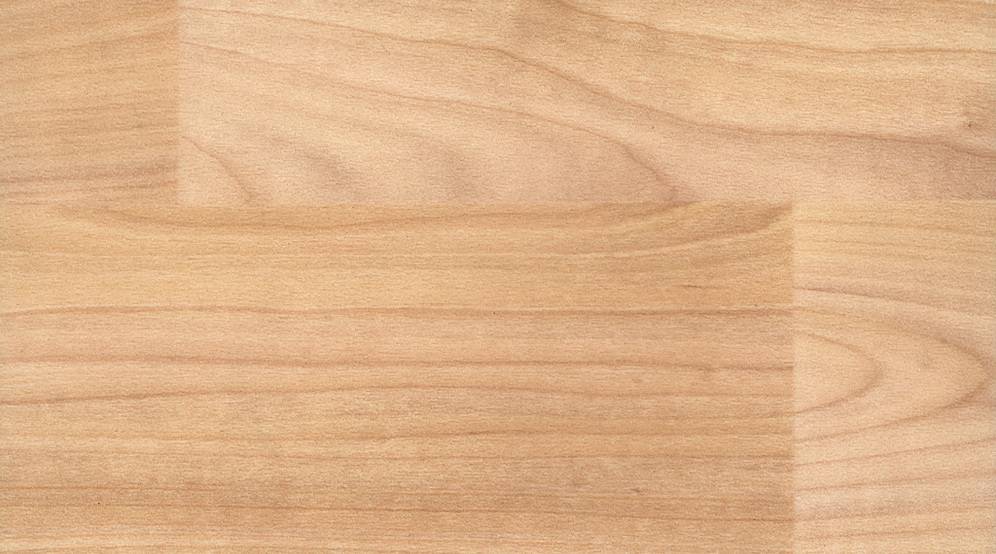

Colour and pattern | Light Cherry. |
Accessories | Not required. Co-ordinating weld rods. My Taraflex® bespoke digital print service. Guidance for specification option: Contact manufacturer for details and insert requirements. |
Weight | 5.1 kg/m². Guidance for specification option: To EN ISO 23997. |
Abrasion resistance | ≤350 mg. Guidance for specification option: To BS EN ISO 5470-1 |
Fire classification (EN 13501-1) | Cfl-s1. |
Impact resistance | ≥8 N/m. Guidance for specification option: To EN 1517. |
Resistance to indentation (minimum) | ≤0.5 mm. Guidance for specification option: To BS EN 1516 |
Ball rebound | ≥90%. Guidance for specification option: Ball bounce to BS EN 12235. |
Sliding properties | 80–110. Guidance for specification option: To BS EN 13036-4 Sliding coefficient. |
Deformation capability | ≤ 3.5 mm. Guidance for specification option: To BS EN 14809 Vertical deformation. |
Shock absorption | P3. Guidance for specification option: To EN 14808. |
Impact protection (minimum) | 89%. Guidance for specification option: Impact Protection Index (IPI) to AC-P90-205. |
Surface treatment | Triple Action Protecsol. |
Colour (Light reflectance value (LRV) | 43.3. |
Contains Red List materials | No |
Material | Vinyl |
Recyclability | 100% |
