Teckentrup Folding Sliding Steel Door FE - Folding Sliding Steel Door
Verified by manufacturer 12 days ago
Mineral wool infill
Mineral wool infill
DAkkS
Certificate type
Double-skinned, heat insulated folding sliding doors that are quiet and easy to operate - UD value of 1.9 W(m2)K.
Application
Suitable for the following fixing applications:
- Masonry.
- Concrete.
- Autoclaved aerated concrete.
- Steel construction.
Description

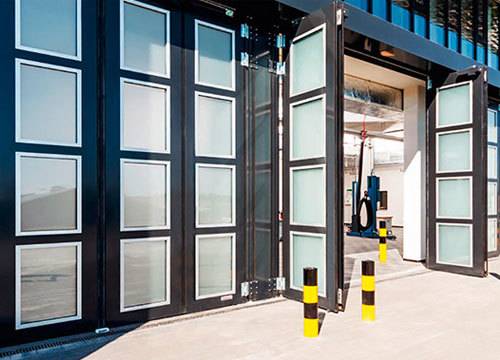

The folding sliding steel door is a four-leaf door, 3:1 coupled, and double skinned with pur foam core.
Features and benefits:
- Door leaf 50 mm thick, with vertically arranged rubber accident prevention profiles.
- Wind resistance (DIN EN 12424): Class 4 (2500 Pa).
- Air permeability (EN 12427): Class 4.
- Water ingress (EN 12489): Class 3.
- Sound insulation (ISO 717-7): Maximum Rw 32 dB (mineral wool infill).
- Heat insulation (EN ISO 12567-1): 1.9 W/m²k (PU-foam infill).
General information
Color | Grey |
Finish | Galvanized Powder-coated |
Material | Steel |
Shape | Rectangle |
Width | Bespoke |
Height | Bespoke |
Warranty description | Manufacturer guidanceWarranty is subject to application, location and specification. Consult manufacturer for details. |
Uniclass | |
CAWS | L20/530 Sliding folding external doors |
Specification data - Sliding folding doorsets
Third party accreditation | To DIN EN 12424, EN 12427, EN 12489, EN ISO 12567-1 and ISO 717-7. |
Grade | Insulated. |
Format | Folding. |
Track system | Sliding. |
Door leaf | |
Construction | Four leaf. |
Finish | Polyester powder coated, RAL.Guidance for specification option: Similar to RAL 9016, not available with mineral wool core. Galvanized natural.Guidance for specification option: With mineral wool core only. 2K-PUR, RAL.Guidance for specification option: Optional, consult manufacturer and insert requirements. |
Operation | Manual. |
Hardware | Two-piece three roller steel hinges with ball bearings (galvanized).Guiding rails with ball-beared plastic roller.Surface mounted basquill lock inside prepared for profile cylinder and handle set (black) on the outside for access door leaf version.Wicket door with mortice lock.Mounted folding door basquill with locking rod with separate handle.Leaf hold open device. |
Accessories | Guidance for specification option: Various items of special equipment are available, consult manufacturer and insert requirements. |
Door leaf | Double skinned. |
Core | Bonded mineral wool. Guidance for specification option: 1.5 mm sheet thickness. Mineral wool. Guidance for specification option: 1.75 mm sheet thickness. PUR foam. Guidance for specification option: 1 mm sheet thickness. |
Glazing | Laminated safety glass 6 mm thick. SAN double glazing 18 mm thick. Guidance for specification option: Aluminum frame only. Double laminated safety insulation glass (VSG/ VSG) 21 mm thick. Guidance for specification option: With aluminum clamping strips or rubber clamping profile. Not required. |
Thickness | 50 mm. |
Door frame | Side frame. Guidance for specification option: Side Frame: 50 x 90 mm square tube. Upper frame. Guidance for specification option: Upper frame: U-profile with guiding rail and release layer. Bottom. Guidance for specification option: Bottom: With threshold. |
Acoustic performance | To ISO 717-7, Maximum Rw 32 dB. |
Thermal | Not applicable. |
Air permeability | To EN 12427, Class 4. |
Wind resistance | To DIN EN 12424, Class 4 (2500 Pa). |
Sustainability data
Country of material origin | Germany |
Country of product manufacture | Germany |
Material | Steel |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 99.83 kg CO₂ eq/m² Self declared |
Recyclability | Manufacturer's standard. |
