T60-FSA
T60-FSA
DAkkS
Certificate type
Commercially competitive integrity and insulation steel doors that have fire-proof, smoke-proof life safety performance - U value of 1.3 W(m2)K.
Application
- Masonry (minimum 175 mm T90 DF FSA).
- Concrete (minimum 140 mm T90 DF FSA).
- Steelwork (T60-FSA only).
- Autoclaved aerated concrete (minimum 175 mm T90 DF FSA).
- Lightweight construction wall (minimum 150 mm T90 DF FSA).
Description
Insulated fire doors & doorsets.
T60-FSA:

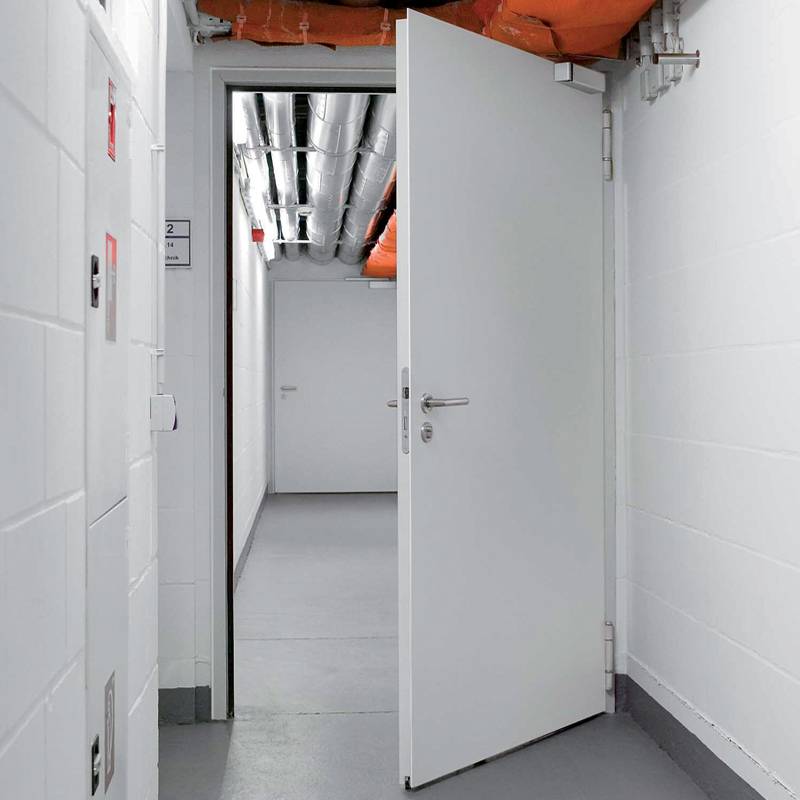

A heavy-duty insulated steel fire door for front and back-of house applications and high traffic locations.
Features and benefits:
- EN 1634-1 fire standard rated E120/ EI60.
- DIN 18095 smoke resistance standard.
- DIN EN 20140 acoustic standard rated Rw 33 dB.
- EN 1627/30 security standard rated RC2, 3 and 4.
- EN 1191 repeated opening & closing standard rated C5 (200K cycles).
- LPS 1175 Issue 8 A1 (SR1) - D5 (SR4).
- LPS 2081 Stealth A & B.
- EN ISO 12567-1 thermal insulation standard rated U-value 1.8 W/m²K.
- Available in stainless steel finish.
T90 DF FSA:
62 mm-thick, fire-proof steel door .
Features and benefits:
- DIN 4102 fire standard (assessed to BS 476: Part 22) rated E90/ EI90.
- DIN EN 20140 acoustic standard rated Rw 42 dB.
- Available in stainless steel finish.
T 30-1-FSA
Steel fire-resistant door with thin-thick rebate 62 mm thick, fire proof steel door.
Features and benefits:
- EN 1634-1 fire standard.
- Door leaf and frame galvanized and prime coated, grey white similar to RAL 9002.
- Available in stainless steel finish.
T30-2-FSA
Flush mounted door leaf with thin-thick rebate 62 mm thick, fire proof steel door.
Features and benefits:
- EN 1634-1 fire standard.
- Door leaf and frame galvanized and prime coated, grey white similar to RAL 9002.
- Available in stainless steel finish.
General information
Color | Grey Other Guidance for specification option: Coated to Any RAL colour. |
Finish | Powder-coated Satin Other Guidance for specification option: Marbled. |
Material | Steel Stainless steel |
Shape | Rectangle |
Width | 750 mm Guidance for specification option: T 30-1-FSA standard door width; consult manufacturer's literature for available heights. 875 mm Guidance for specification option: T 30-1-FSA standard door width; consult manufacturer's literature for available heights. 1000 mm Guidance for specification option: T 30-1-FSA standard door width; consult manufacturer's literature for available heights. 1125 mm Guidance for specification option: T 30-1-FSA standard door width; consult manufacturer's literature for available heights. 1250 mm Guidance for specification option: T 30-1-FSA standard door width; consult manufacturer's literature for available heights. |
Height | 1750 mm Guidance for specification option: T30-2-FSA special door height; consult manufacturer's literature for available widths. 1875 mm Guidance for specification option: T 30-1-FSA standard door height; consult manufacturer's literature for available widths. 2000 mm Guidance for specification option: T90 DF FSA, T 30-1-FSA and T30-2-FSA standard door height; consult manufacturer's literature for available widths. 2125 mm Guidance for specification option: T90 DF FSA, T 30-1-FSA and T30-2-FSA standard door height; consult manufacturer's literature for available widths. 2250 mm Guidance for specification option: T90 DF FSA, T 30-1-FSA and T30-2-FSA standard door height; consult manufacturer's literature for available widths. |
Warranty description | Manufacturer guidanceWarranty is subject to application, location and specification. Consult manufacturer for details. |
Uniclass | |
CAWS | L20/55 Doorsets L20/480 Doorsets |
Specification data - Stainless steel doorsets
Standard | To EN 1634-1, DIN 18095, DIN EN 20140, EN 1627/30, EN 1191, and EN ISO 12567-1. |
Configuration | Double leaf.Single leaf. |
Doorset size | 1500 x 2000 mm.1500 x 2125 mm.1750 x 2000 mm.1750 x 2125 mm.2000 x 2000 mm.2000 x 2125 mm.2000 x 2500 mm.2125 x 2125 mm.2250 x 2250 mm.2500 x 2500 mm.Other.Guidance for specification option: A range of sizes are available: consult manufacturer for details. |
Performance | |
Fire resistance | |
Integrity | To EN 1634-1, E30.To EN 1634-1, E60.To EN 1634-1, E120.To EN 1634-1, EI30.To EN 1634-1, EI60. |
Smoke leakage | To DIN 18095/ EN 1634-3, smoke proof. |
Acoustic performance | To DIN EN 20140 acoustic standard rated Rw 33 dB. |
Strength and durability | To EN 1191, C5.Guidance for specification option: 200 K cycles. |
Thermal | To EN ISO 12567-1, 1.8 W/m²K.Guidance for specification option: EN ISO12567-1 thermal insulation standard rated U value 1.8 W/m²K. |
Intruder resistance | |
Minimum requirement | Not applicable.To EN 1627, RC4.LPS 1175 Issue 7 security standard to SR3 rating.LPS 1175 Issue 8 security standard to A1 (SR1) rating.LPS 1175 Issue 8 security standard to B3 (SR2) rating.LPS 1175 Issue 8 security standard to C5 (SR3) rating.LPS 1175 Issue 8 security standard to D5 (SR4) rating.LPS 2081 Stealth A rating.LPS 2081 Stealth B rating. |
Application | Manufacturer guidanceInsert requirements. |
Bullet resistance | Not required.To BS EN 1522, Class FB4. |
Frame | |
Material | Steel, 2 mm-thick corner frame.Guidance for specification option: Standard. T90 FSA: 2/ 3mm thick with three-sided seal and bottom sill. With three welded-on wall anchors per side and fire protection strips in the upper part. Steel, 2 mm counter frame.Steel, 2 mm closed frame.Steel, 2 mm single rebate 'block' frame.Guidance for specification option: T60 FSA: German design single rebate 'Block' 2 mm thick, mitred corners at the vertical to head joints. |
Finish | |
Coating | Polyester powder-coated.Guidance for specification option: Door leaf and frame galvanized steel, polyester powder-coated. Stainless steel. |
Colour | RAL.Guidance for specification option: Powder-coated any RAL colour, insert requirements. Stainless steel. |
Door leaf | |
Thickness | 62 mm. |
Core | Mineral fibre board. |
Panel details | Solid.Vision panel(s).Guidance for specification option: Insert requirements below under Glazing. |
Material | Steel. |
Glazing | |

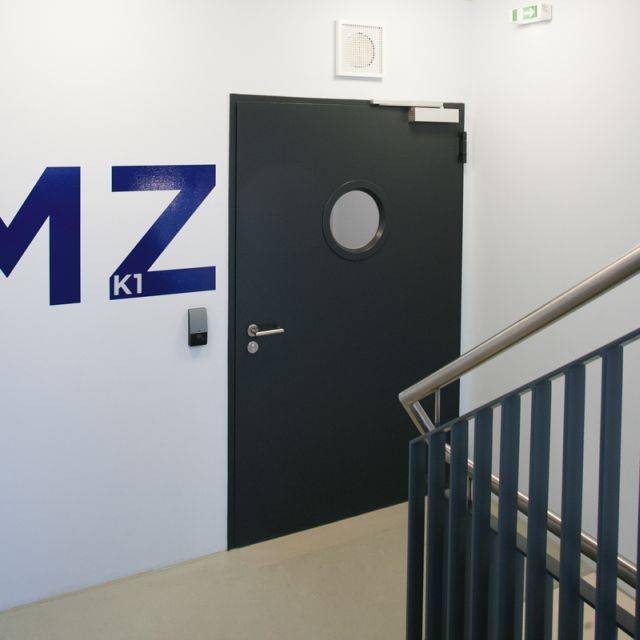

Type | Rectangular vision panel(s), fire-resistant 37 mm-thick Promaglas.Guidance for specification option: Insert requirements, maximum 741 x 1658 mm. 300 mm-diameter vision panel(s), fire-resistant 37 mm-thick Promaglas.400 mm-diameter vision panel(s), fire-resistant 37 mm-thick Promaglas.500 mm-diameter vision panel(s), fire-resistant 37 mm-thick Promaglas.Not required. |
Finish | |
Coating | Polyester powder-coated.Guidance for specification option: Door leaf and frame galvanized steel, polyester powder coated. Stainless steel.Guidance for specification option: Optional. As Frame. |
External colour | RAL.Guidance for specification option: Powder coated any RAL colour, insert requirements. Stainless steel.As Frame. |
Internal colour | RAL.Guidance for specification option: Powder coated any RAL colour, insert requirements. Stainless steel.As External. |
Door accessories | Not requirement.3D adjustable architectural hinges.Guidance for specification option: 3D adjustable architectural hinges along with various other accessories are available, consult manufacturer for details. |
Hardware | Mortice lock with lever/ knob set prepared for profile.Cylinder.Stainless steel handle set.Handle pivoted on bearing.With tumbler insert.Bb and 1 Bb key.Overhead closer. |
Accessories | Guidance for specification option: Various items of special equipment and control devices are available, consult manufacturer and insert requirements. |
Type | Double skinned. |
Sheet thickness | 1 mm. 1.5 mm. |
Over panels | Required. Guidance for specification option: As drawing. Not required. |
Reinforcement | Unspecified. |
Sustainability data
Country of material origin | Germany |
Country of product manufacture | Germany |
Material | Steel Stainless steel |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 53.85 kg CO₂ eq/m² Self declared |
Recyclability | Manufacturer's standard. Guidance for specification option: Specific parts of steel and stainless steel are recycled, plastics are thermally recycled. Residual fractions are sent to landfill. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | Manufacturer guidanceInformation available on request; consult manufacturer for details. |
Third party certifications
DAkkS
GB_EPD_Teckentrup
Literature
Steel Fire Doorset & Fire Door Selector I60 E120 EN1634-1
Teckentrup Stainless Steel Door & Doorsets for Fire, Security, Smoke and Acoustic applications in architectural settings, clean environments, high stress & chemical sites.pdf
Fire Protection Door T90-1-FSA "Teckentrup 62" (Technical Data)
Fire Protection Door T90-2-FSA "Teckentrup 62" (Technical Data)
Fire Protection Door T30-1-FSA "Teckentrup 62" (Technical Data)
Fire Protection Door T30-2-FSA "Teckentrup 62" (Technical Data)

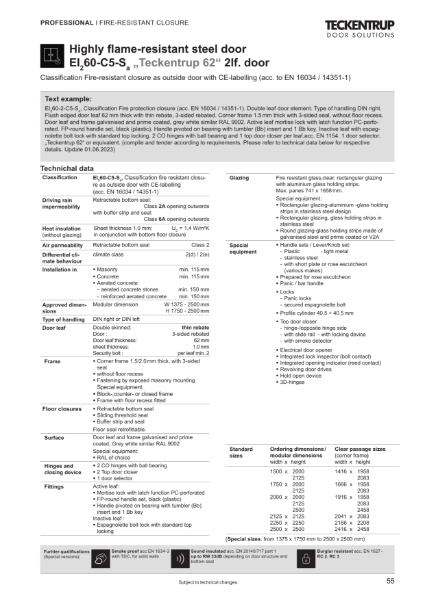

Fire Protection Door T60-1-FSA "Teckentrup 62" (Technical Data)
