TEMPOFIX 3 Frame System - WC Frame.

Verified by manufacturer 10 months ago

Time Flow and Battery Operated - 564060DE

Delabie UK Ltd Variant:

WC frame for wall-mounted WCs.

Jump to:
+44 (0)1491 824449 Website

Application

Suitable for commercial and public applications.

Description

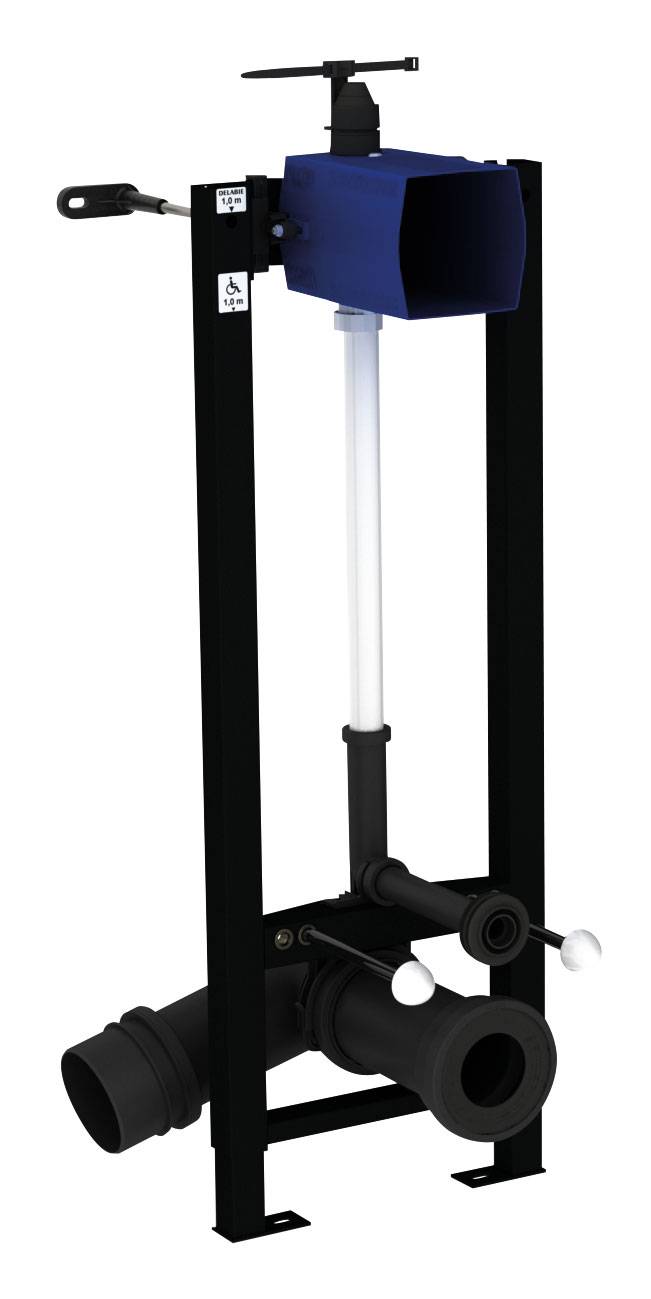

WC frame for wall-mounted WCs.


Features and benefits:

  • Black powder-coated steel frame.
  • For fixing to load-bearing walls or load-bearing floors.
  • Frame height can be adjusted from 0–200 mm (with 1 m mark).
  • Compatible with solid walls from 10–120 mm.
  • Ø32 mm flush tube with Ø55 mm connection washer.
  • ABS soil pipe, Ø 110 mm HDPE outlet with waterproof seal, with two setting positions.
  • Recessed waterproof housing: flush system without cistern, directly connected to pipework.
  • Compatible with electronic or time flow valves for WCs.
  • Backflow prevention device inside the housing.
  • Integrated stopcock and flow rate regulation.
  • Supplied pre-mounted.
  • 30-year warranty.

General information

Color

Black

Finish

Powder-coated

Material

Steel

Shape

Other

Length

157 mm

177 mm

Manufacturer guidance

Depth 157–177 mm.

Width

350 mm

Height

1000 mm

1320 mm

Manufacturer guidance

Height 1000–1320 mm.

Warranty description

30 year

Uniclass

Pr_40_20_93_87 WC cistern fittingsPrimary

CAWS

N13/10 WC pans and flushing arrangements

N13/66 Pre-plumbed frame system

N13/300 WCs and cisterns

N13/500 Pre-plumbed frame system

Specification data - WC cistern fittings

Form

Wall-mounted.

Flushing arrangement

Manufacturer's standard.

Guidance for specification option:

See manufacturer for details.

Integral accessories

Recessed waterproof housing.

Power supply

For battery-operated flush valves.

Height

1000–1320 mm.

Manufacturer guidance

This product is adjustable between the values shown.

OutletDiameter

⌀110 mm.

Length

157–177 mm.

Manufacturer guidance

Product Depth is adjustable between the values shown.

Control

Control plate - 464006.

Control plate - 465006.

Control plate - 763000.

Control plate - 763040.
