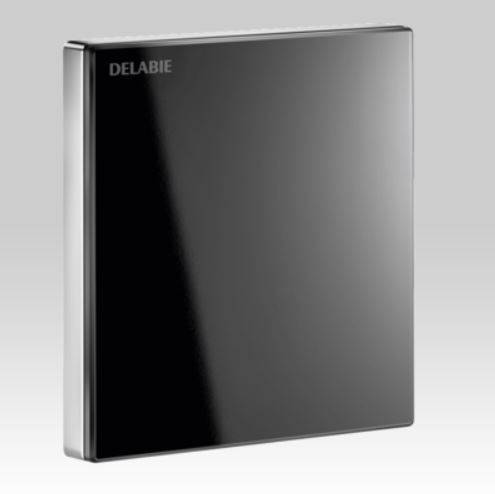

TEMPOMATIC 4 For Urinals - Flush Control Plate
Verified by manufacturer 10 months ago
Black glass battery-operated - 430036
Black glass battery-operated - 430036
Flush control plate for urinals.
Application
Battery operated:
Order with frame system references 543006 for urinals Ø 35 mm, 543006D for urinals with flexible ½" or with recessed housing 430PBOX.
Mains supply:
Order with frame system references 543000 for urinals Ø 35mm, 543000D for urinals with flexible ½" or with recessed housing 430SBOX.
Description
Recessed, electronic control plate for urinals.
Features and benefits:
- TEMPOMATIC 4 electronic valve F½", kit 2/2.
- Available battery-operated with CR 123 Lithium 6 V batteries or mains operated 230/6 V (cable and transformer supplied).
- Solenoid valve enables opening and closing of water.
- Wall control plate 145 x 145 mm with integrated electronics.
- Shock-resistant infrared presence detection sensor.
- Detection delay is 10 seconds.
- 3 programmes (rinsing volume can be adjusted according to urinal type).
- High frequency mode (exclusive to DELABIE): short rinse after each user; additional rinse after the period of increased frequency of use.
- Hygienic duty flush every 24 hours (can be adjusted to 12 hours or OFF) after last use: prevents vacuums.
- Flow rate pre-set at 0.15 L/sec at 3 bar, can be adjusted.
- TEMPOMATIC 4 F½" valve compatible with sea water, rain water and grey water.
- Installation in waterproof housing with waterproof collar, transformer, filter and stopcock.
- Suitable for people with reduced mobility.
- 30-year warranty.
General information
Color | Black Silver |
Finish | Polished Satin |
Material | Glass Stainless steel |
Shape | Square |
Length | 145 mm |
Width | 145 mm |
Warranty description | 30 year |
Uniclass | |
CAWS | N13/316 Urinals and flushing valves S90/690 Flush control devices S90/690 Flush control devices |
Specification data - Flush control devices
Third-party certification | WRAS-approved. |
Flush volume | 0.5 L/sec at 3 bar. |
Materials | |
Body | Shock-resistant vitro-ceramic glass. |
Finish and colour | Black. |
Operation | Occupancy sensor. |
Controller | Battery-operated. |
Accessories | Not required. Recessed housing 430PBOX. |
