Verified by manufacturer 3 months ago
TSL.R031.CS

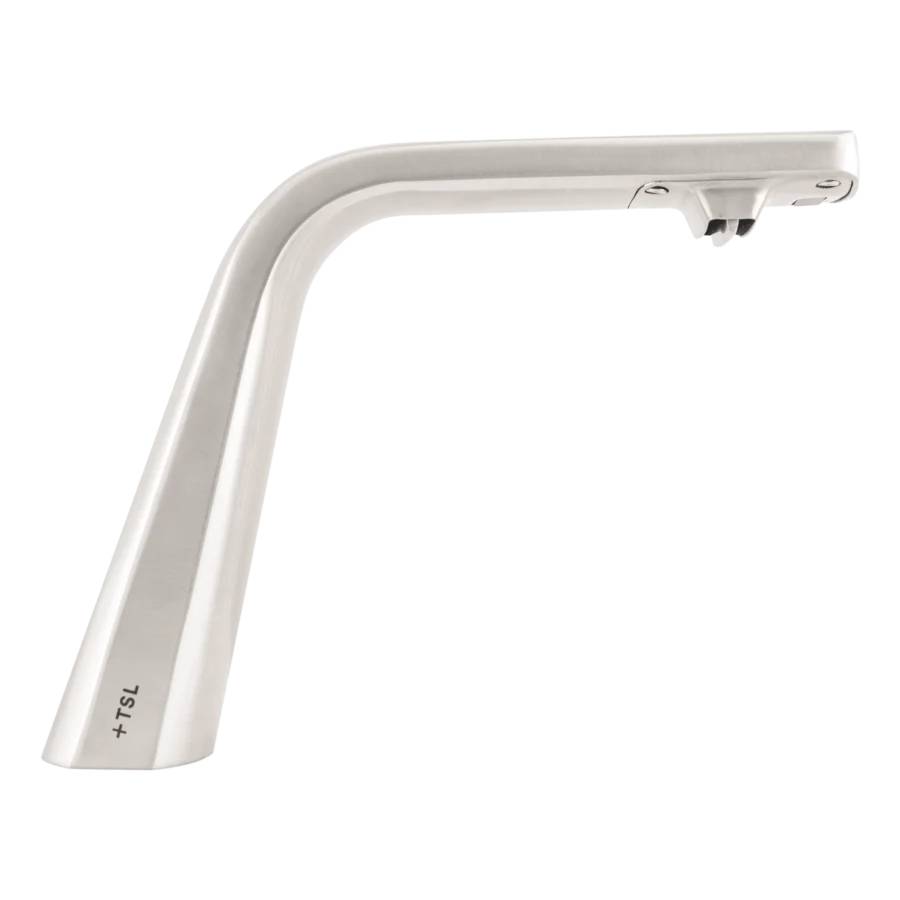

Deck-mounted automatic hand dryer for washbasins.
Washrooms / Restrooms.
Not to be installed above highly polished basins.
Deck-mounted automatic hand dryer for washbasins.
Features and benefits:

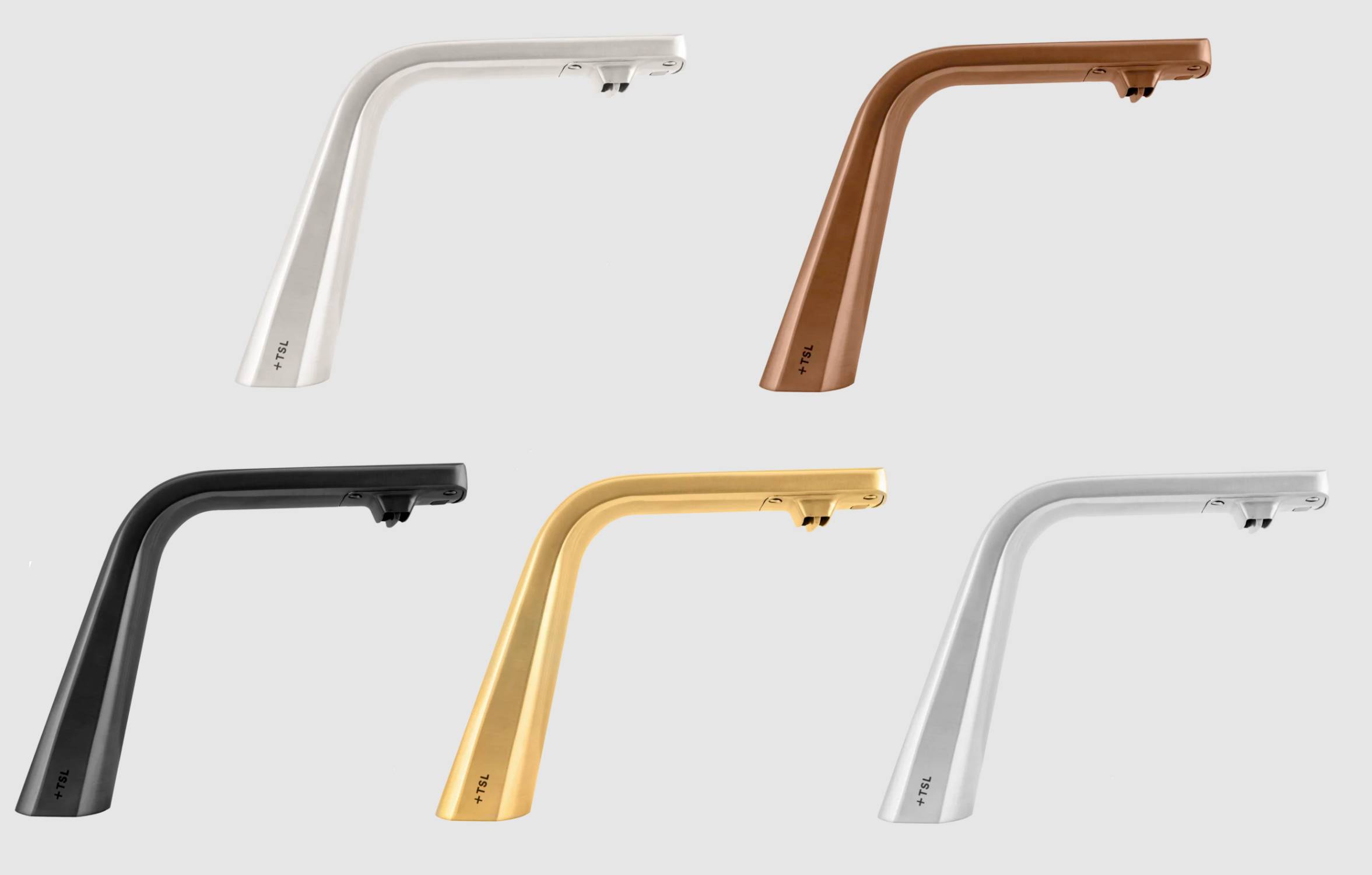

Color | Silver Black Copper Gold Guidance for specification option: Brass. Other |
Finish | Satin PVD Chrome Brushed Coated |
Material | Stainless steel Guidance for specification option: Grade 304. |
Shape | Other |
Length | 226 mm Guidance for specification option: Visible section only. |
Width | 58 mm Guidance for specification option: Visible section only. |
Height | 174 mm Guidance for specification option: Visible section only. |
Warranty description | Three year Guidance for specification option: Parts and labour. |
Uniclass | |
CAWS | N13/472 Hand dryers N13/64 Hand dryers |
Form | High-velocity air through 3M filter.Guidance for specification option: Standard. High-velocity air through HEPA filter.Manufacturer guidance
|
Operation | Automatic.Guidance for specification option: Sensor range: 120 mm ±20 mm. |
Timer | Fixed (<15 seconds).Guidance for specification option: Security cut-off time: 60 seconds. |
Electrical supply | |
Power rating | 0.84–1.0 kW.Guidance for specification option: Standby power: 0.3–0.4 W. It is recommended that sensors are installed on their own circuit to avoid interference from other power demands e.g. lighting. |
Rated operational voltage (Ue) | 220–240 V a.c. |
Frequency | 50/ 60 Hz. |
Final connection | Manufacturer's standard.Guidance for specification option: Consult manufacturer for details. |
Body | |
Material | AISI 304 stainless steel. |
Finish | Satin. |
Colour | Silver (stainless steel). |
Ingress protection (minimum) | IP35. |
Dimensions | 226 x 174 x 58 mm.Guidance for specification option: Length x height x width (all for visible unit only). |
Noise level at 1 m (maximum) | 70.6 dB.Guidance for specification option: Insulation: Class 1. |
Features | Hands only. |
Air speed | 84–101 m/s (air flow: 54 m³/h). |
Motor | Brush type; dual ball bearings, 500–350 W. |
Colour (Light reflectance value (LRV) | 51. |
Contains Red List materials | No |
Country of material origin | Taiwan |
Country of product manufacture | Taiwan |
Material | Stainless steel Guidance for specification option: Grade 304. |
Recyclability | Recyclable |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
