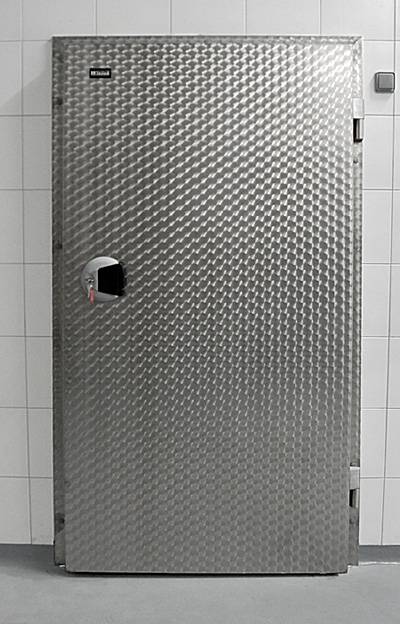

Thermidor Chill HM - Insulated Hinged Monobloc Chiller Door (Stainless Steel)
Verified by manufacturer 5 months ago
Alcumus SafeContractor
Certificate type
ISO 9001 Quality Management
Certificate type
Constructionline Gold
Certificate type
CHAS
Certificate type

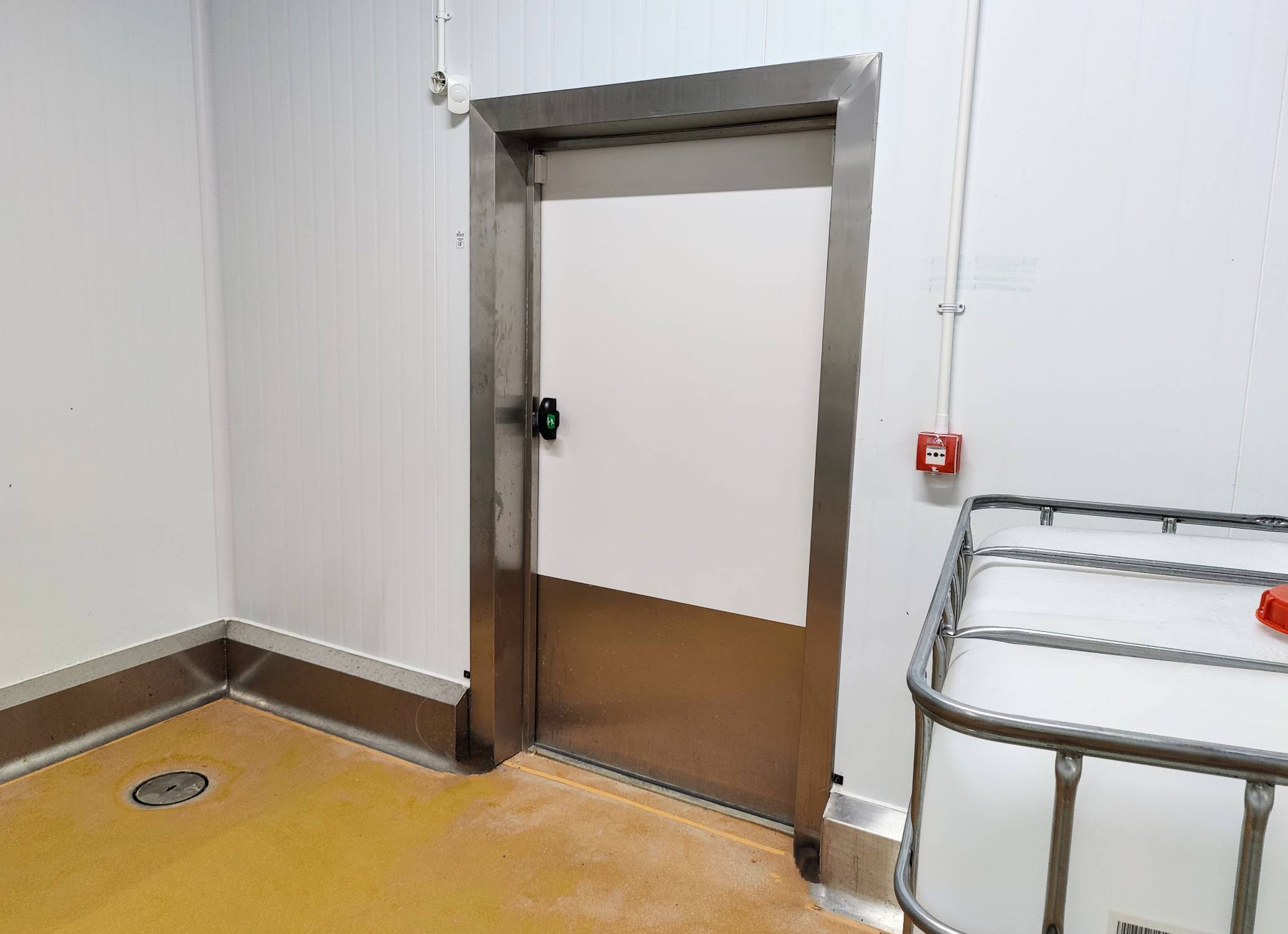

The Thermidor Chill HM is a specialist hinged chiller door, designed to provide superior insulation performance for openings in chiller environments.
Application
- Storage Chillers.
- Defrosting Chillers.
- Food Factories.
- Pharmaceutical Factories.
Description
This door range offers a simple and reliable operation and is available with a range of ironmongery to suit site requirements.
With options of different panel thicknesses, high quality rubber seals and optional heated frames / thresholds, this door range is designed to reduce costs and improve safety by optimizing insulation and improving temperature control.
Available with a range of hygienic finishes, including stainless steel, brushed stainless steel and powder-coating, the door is suitable for use in food factories, including wash-down areas.
The door panel is a monobloc design with a welded steel envelope and injected foam core. This offers exceptional stability and insulation performance, with no cold bridges. The fully seamless welded finish is far superior to alternative designs that use a two part leaf design where water ingress can occur over time, damaging the leaf construction.
Features and benefits:
- Superior insulation performance.
- High quality perimeter seals.
- Safe and reliable operation.
- Monobloc door leaf design.
General information
Color | Silver White |
Finish | Smooth Brushed Guidance for specification option: Circle or line. Stainless steel Powder-coated |
Material | Stainless steel Polyurethane |
Shape | Rectangle |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | L20/55 Doorsets L20/480 Doorsets |
Specification data - Stainless steel doorsets
Configuration | Single-leaf, single-action.Manufacturer guidanceStructural opening dimensions and number of leaves as per door. |
Doorset size | Manufacturer guidanceSize (w x h): 3000 x 3000 mm. Other sizes available on request. Insert requirements. |
Frame | |
Material | 0.8 mm stainless steel. |
Perimeter seals or inserts | Two-part rubber seal situated between the door frame and leaf to eliminate thermal bridging. |
Finish | |
Coating | Powder coated. |
Texture | Brushed.Smooth. |
Colour | Silver.White. |
Door leaf | |
Thickness | 60 mm.80 mm.Manufacturer guidanceOther sizes available on request. |
Core | Fully welded steel leaf, injected with a CFC-free polyurethane foam. |
Material | 0.8 mm stainless steel. |
Finish | |
Coating | Powder coated. |
Texture | Brushed.Smooth. |
External colour | Silver.White. |
Internal colour | As External. |
Hardware | Slam lock and pull handle.Guidance for specification option: Standard. Rod control system.Guidance for specification option: For larger door sizes. Optional. Specialist drop hinge system for superior threshold sealing. |
Accessories | Internal emergency escape activation. |
Activation | Manual operation. Guidance for specification option: Standard. Automatic closing via a heavy duty industrial door closer. Guidance for specification option: Optional. |
Sustainability data
Material | Stainless steel Polyurethane |
Third party certifications
Alcumus SafeContractor
Safe Contractor Certificate
ISO 9001 Quality Management
ISO 9001
Constructionline Gold
Constructionline Gold Certificate
CHAS
CHAS Certificate
Literature
Thermidor Chill HM Datasheet
