Load-bearing, thermal insulation block that eliminates cold bridging at the wall/ floor junction.

Jump to:
BOS
 +44 (0)1634 835290 Website

Application

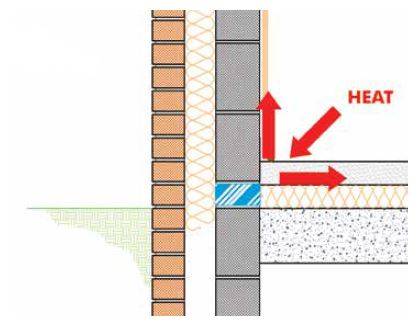

Marmox Thermoblock is a structural Thermal Break used at the base of a masonry wall or timber or steel framed wall to address the thermal bridge.

Description

With a compressive strength of 9 N/mm², the product can be used at the base of load-bearing walls to stop the cold bridge from occurring.


Features and benefits:

  • Reduces heat loss at the base of walls.
  • Guarantees to provide a significant reduction in the Y value entered into the SAP/ SBEM/ DEAP energy assessment spreadsheet.
  • 9 N/mm² compressive strength meets UK and Irish building regulations enabling it be used in supporting walls.
  • Impermeable to water and can be used in damp conditions without any loss to the insulating properties.
  • Suitable to form the base of walls comprising brick, block or wooden frame.
  • Suitable to form the base layer beneath timber or steel frame walls.
  • A "BRE Certified Thermal Product." offering guaranteed low psi values

General information

Material

Polystyrene

Concrete

Manufacturer guidance

A core of fire resistant extruded polystyrene (XPS) insulation, encasing two rows of epoxy-concrete.

Shape

Rectangle

Length

600 mm

Width

100 mm

215 mm

140 mm

Height

65 mm

100 mm

Warranty description

Lifetime

Uniclass

Pr_20_93_52_48 Loadbearing thermal break unitsPrimary

CAWS

F30/185 Transmitted noise reduction system

Product range

Thermal and sound insulation
Thermal Bridging

Specification data - Loadbearing thermal break units

Third-party certification

BRE certified.

Dimensions (nominal)

-

Width

100–215 mm.

Recycled content

7%.

Compressive strength (minimum)

9 N/mm².

Thermal conductivity (maximum)

0.05 W/m·K.

Thickness

65 mm.

Guidance for specification option:

Standard thickness. To suit typical UK brick heights. Available in all three widths.

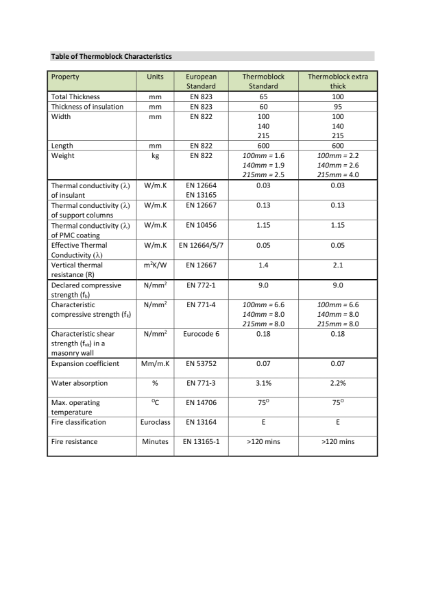

  • Thickness of insulation (to EN 823): 60 mm.
  • Weight (to EN 822): 100 mm: 1.6 kg; 140 mm: 1.9 kg; 215 mm: 2.5 kg.
  • Thermal conductivity (K-Value) of insulant (to EN 12664/ EN 13165): 0.028 W/m·K.
  • Thermal conductivity (K-Value) of support columns (to EN 12667): 0.130 W/m·K.
  • Thermal conductivity (K-Value) of slurry coating (to EN 10456): 1.15 W/m·K.
  • Thermal conductivity (K-Value) of insulation core (to EN 12664/ 5/ 7): 0.047 W/m·K.
  • Vertical thermal resistance (R-Value) of insulation core (EN 12667): 1.4 m²K/W.
  • Characteristic compressive strength (EN 771-4): 100 mm: 6.6 N/mm²; 140 mm: 8 N/mm²; 215 mm: 8 N/mm².
  • Characteristic shear strength in a masonry wall (Eurocode 6): 0.18 N/mm².
  • Expansion coefficient (to EN 53752): 0.07 mm/m·K.
  • Water absorption (EN 771-3): 3.1%.
  • Maximum operating temperature (to EN 14706): 75°C.

100 mm.

Guidance for specification option:

Extra thick, providing 33% more insulation than the standard Thermoblock. To achieve a thermal resistance (R-value) of 2 m²K/W. Available in all three widths.

  • Thickness of insulation (to EN 823): 95 mm.
  • Weight (to EN 822): 100 mm: 2.2 kg; 140 mm: 2.6 kg; 215 mm: 4 kg.
  • Thermal conductivity (K-Value) of insulant (to EN 12664/ EN 13165): 0.028 W/m·K.
  • Thermal conductivity (K-Value) of support columns (to EN 12667): 0.130 W/m·K.
  • Thermal conductivity (K-Value) of slurry coating (to EN 10456): 1.15 W/m·K.
  • Thermal conductivity (K-Value) of insulation core (to EN 12664/ 5/ 7): 0.047 W/m·K.
  • Vertical thermal resistance (R-Value) of insulation core (EN 12667): 2.1 m²K/W.
  • Characteristic compressive strength (EN 771-4): 100 mm: 6.6 N/mm²; 140 mm: 8 N/mm²; 215 mm: 8 N/mm².
  • Expansion coefficient (to EN 53752): 0.07 mm/m·K.
  • Water absorption (EN 771-3): 2.2%.
  • Maximum operating temperature (to EN 14706): 75°C.



Fire resistance (to EN 13164/ EN 1365-1)

Class E, >120 minutes.

Length

600 mm.

Sustainability data

Contains Red List materials

No

Country of material origin

Egypt

Country of product manufacture

Egypt

Material

Polystyrene

Concrete

Manufacturer guidance

A core of fire resistant extruded polystyrene (XPS) insulation, encasing two rows of epoxy-concrete.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

20 %

Third party certifications

Certified

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
 -

1

IFC
 -

1

Third party certifications

BBA Agrément Certificate

BBA Agrément Certificate

BBA certificate

BRE Certificate

BRE Certificate

BRE Thermal Details and calculations for Thermoblock

ISO 9001 Quality Management

ISO 9001 Quality Management

Marmox ISO9001

EPD

EPD

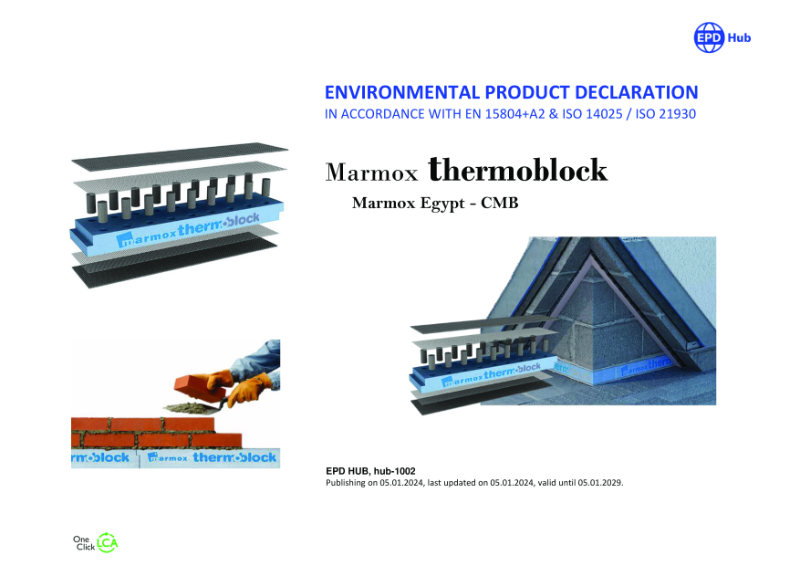

EPD - Marmox Thermoblock

Literature

Technical Data Sheet - Marmox Thermoblock

Technical Data Sheet - Marmox Thermoblock
