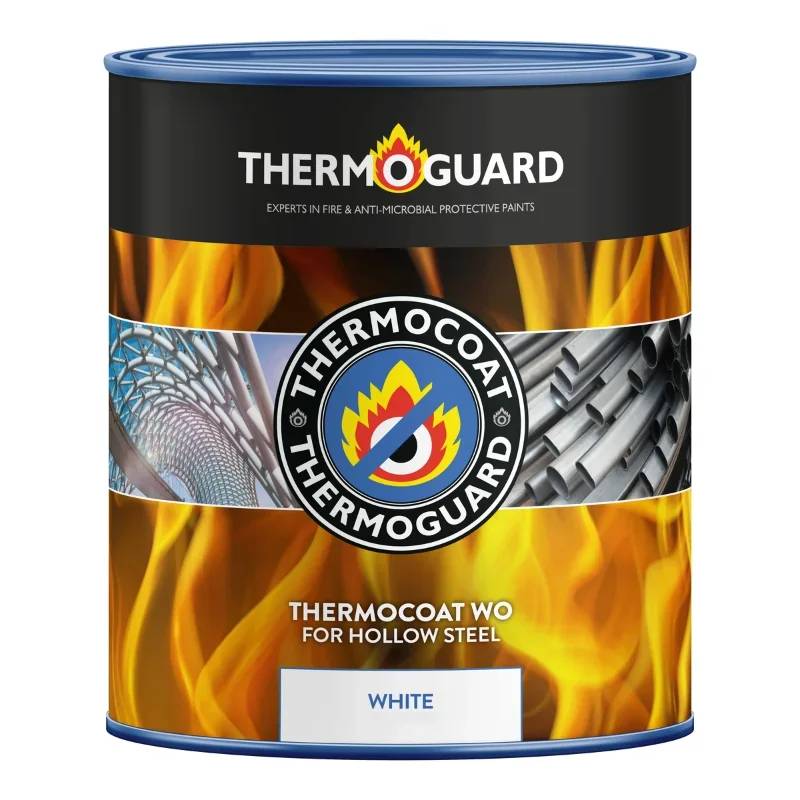

Thermocoat WO - Water-Based Intumescent Paint System

Verified by manufacturer 2 months ago

Thermoguard UK Ltd

A water-based intumescent paint system providing fire resistance to structural steel and cast iron.

Jump to:
01142 768008 Website

Application

Optimized to protect I, channel, shaped steel and hollow bracing.

It is a water-based intumescent paint system providing fire resistance to structural steel and cast iron of up to 90 minutes with a minimum number of coats.


A compatible decorative overcoat system ensures the system will enhance the building’s architectural and design features.

Description

A water-based intumescent paint system providing fire resistance to structural steel and cast iron.


The heat of a fire triggers a catalytic reaction, causing the expansion of an insulating char layer up to 50 times the paint thickness. This layer keeps the steel below its critical temperature, thus maintaining the structural integrity of the building.


Features and benefits:

  • Available in pack sizes of 2.5 kg, 5 kg, 20 kg.
  • Minimum 30 minutes fire resistance subject to manufacturer's guidelines.
  • Low-odour, water-based coating, making it user and environmentally friendly.
  • Can be top coated with flame-retardant gloss, eggshell, water-based satin or water-based matt (BS 4800 and RAL colours).
  • The range of topcoats are either water-based or 2010 compliant and safe to use in accordance with manufacturer’s instructions.
  • Thermoguard issue a Certificate of Supply on request for each specified project for insurance, Fire and Building Control Authority and Client Records.


Application:

  • Dry internal: Apply in accordance with Thermoguard film thickness schedule to achieve 30, 60, 90 minutes.
  • Visible or occasional modest damp internal areas: Also apply one good coat of Thermoguard Flame Retardant Paint.
  • Wet or external under cover: Apply second coat of flame-retardant paint
  • Full external exposure: Contact manufacturer's technical department.
  • May be applied by brush, roller or airless spray pump.

General information

Color

White

Finish

Smooth

Material

Water-based

Shape

Formless

Length

Bespoke

Width

Bespoke

Height

Bespoke

Uniclass

Pr_35_31_68_43 Intumescent protective coatingsPrimary

CAWS

G10/643 Protective painting

G10/650 Site painting

M61/140 On-site overcoating to existing steel

M61/120 On-site coating to existing steel

M61/115 On-site coating to galvanized steel

M61/110 On-site coating to primed steel

Specification data - Intumescent protective coatings

Composition

Water-based.

Guidance for specification option:

Intumescent compounds and resin binders, with high opacity pigments.

Colour

White.

Coverage

Prior to application the contractor should contact Thermoguard’s Technical Department and obtain a basecoat application schedule or follow on-can guidance.

Manufacturer guidance

Do not overspread as this will compromise the system and result in non-compliance and a failure to be certified.

Preparation

Steel and cast iron should be free from rust and millscale and primed (see below) in accordance with manufacturer’s instructions.

Primer

Thermoguard Steel Fire Paint Primer.

Other.

VOC content

16 g/L.

Drying time

Surface dry (two hours with brush/ roller; four hours with spray).
Recoat (four hours with brush/ roller; 10 hours with spray).
Overcoat with flame retardant finish (10 hours with brush/ roller; 48 hours with spray).

Density

1.42 g/ml.
