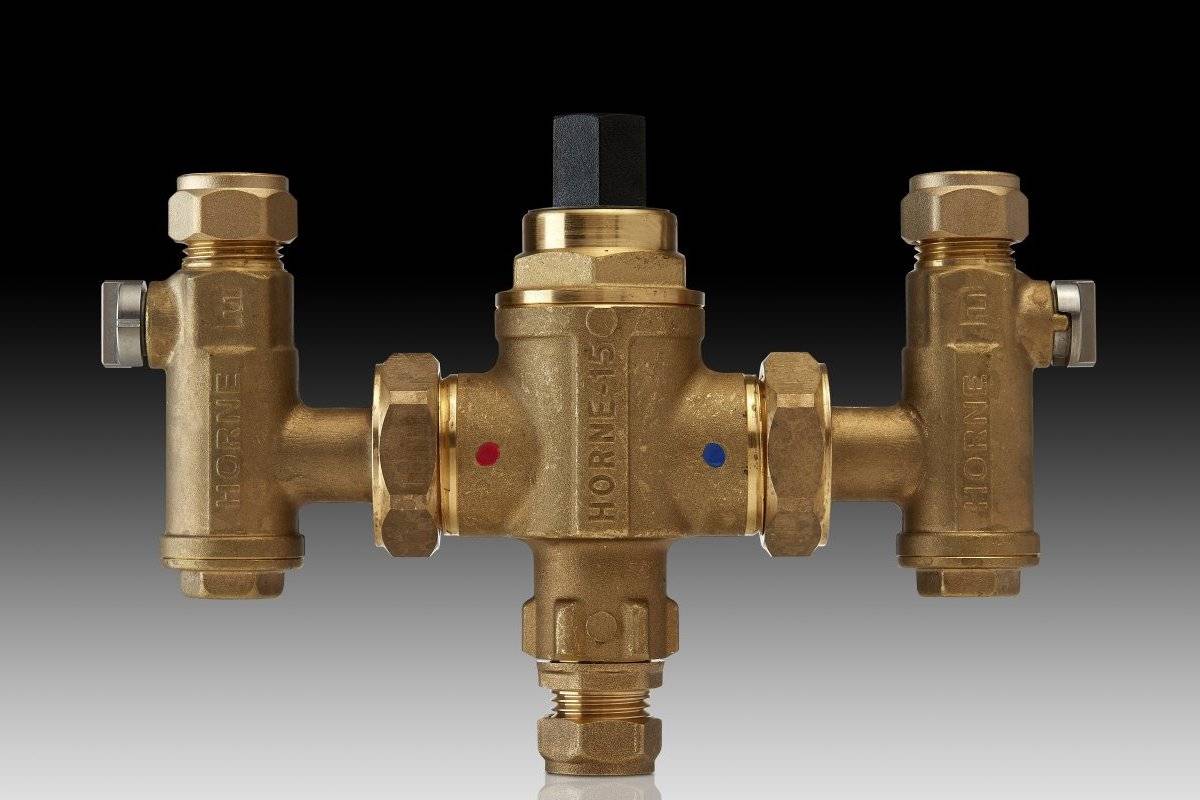

Thermostatic Mixing Valve with Isolating Valves
Verified by manufacturer 2 months ago
15mm, Valve only, bronze finish - H15-21B
15mm, Valve only, bronze finish - H15-21B
Type 3 (Healthcare) approved TMV
Certificate type
UK Water Regulation 4
Certificate type
A range of point of use thermostatic mixing valves for healthcare and other public buildings.
Application
Thermostatic mixing valves for use in hospitals, schools, sport and leisure facilities, prisons and other public buildings.
Description
A range of thermostatic mixing valves for point of use mixing for bidets, wash hand basins and showers.
Features and benefits:
- Every valve performance tested in production.
- Type 3 Approved TMV* for both LP and HP designations.
- UK Water Regulation 4 Approved* - non-metallic materials in contact with potable water.
- Accurate and reliable temperature control.
- Full bore fine mesh strainers protect valve mechanism and downstream fittings.
- Automatic shut off if hot or cold water supply fails.
- Easy installation, commissioning and maintenance.
Required Accessory:
- Flushing Kit (for compliant commissioning, and periodic elevated velocity pipework flushing for biofilm control and improved water quality. See variants for relevant P/N)
* Approval for DN20 variants pending.
General information
Color | Bronze Silver |
Finish | Natural Chrome |
Material | Brass Stainless steel Polymer Plastic |
Shape | Other |
Warranty description | Two year Guidance for specification option: Warranty only applies to materials and workmanship. Does not cover inappropriate handling, incorrect installation, commissioning, operation or maintenance (or lack of). www.horne.co.uk/contact-us/customer-services/the-horne-guarantee/ |
Uniclass | |
CAWS | S90/680 Thermostatic mixing valves S90/680 Thermostatic mixing valves |
Specification data - High-performance thermostatic mixing valves
Standard | To HTM Performance specification D 08. |
Performance classification | Type 3 (healthcare) TMV. |
Arrangement | Without flow control and with preset temperature. |
Material | Brass. |
Connections | Compression. |
Size | DN15. |
Accessories | Flushing Kit, P/N 5138.Guidance for specification option: Required accessory - for compliant commissioning and periodic elevated velocity flushing for biofilm control. |
Verification | |
Third-party certification | Kiwa Type 3 Thermostatic Mixing Valve and KUKreg4 Certification.Guidance for specification option: Approval for DN20 variants pending. |
Colour/ Finish | Bronze. |
Integral accessories | Check valves, strainers and isolating valves. |
Sustainability data
Country of product manufacture | United Kingdom |
Material | Brass Stainless steel Polymer Plastic |
Recyclability | Can be recycled |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Third party certifications
Literature
Thermostatic Mixing Valves - Horne 15 & Horne 20
Instructions - Horne 15 Thermostatic Mixing Valve
Instructions - Horne 20 Thermostatic Mixing Valve
